Assembly Instructions for Wayfair George Oliver Fenix Kids Chair

Step-by-step assembly guide for the Wayfair George Oliver Fenix Kids Chair. Includes parts list, hardware requirements, and safety warnings for home use.

Quick answers from the manual

Quick answer

  • The Wayfair George Oliver Fenix Kids Chair is assembled by attaching the four legs to the seat using the provided bolts and Allen key. p. 2

Key actions

  • Attach legs to seat p. 2

First start

  • Check all parts are present before starting assembly. p. 2

Problems and fixes

Broken or defective parts

Do not attempt to repair or modify; contact the store immediately.

p. 2

Technical specifications

Parameter Value Meaning Pages
Bolt size 1/4" * 25 Bolt diameter and length p. 2

Where to find it in the PDF

  • Assembly Instructions p. 1, 2
Table of contents

Manual images

Click an image to enlarge
Parts list including seat, legs, bolts, and Allen key. Page 2 Step 1: Attaching the legs to the seat. Page 2

Important Information

Before beginning the assembly of your Wayfair George Oliver Fenix Kids Chair, please ensure that all hardware and parts are present. Follow the assembly instructions in the numbered sequence provided to ensure a fast and easy setup.

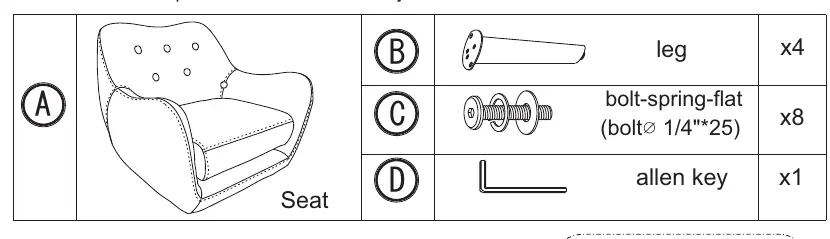

Parts List

Parts list including seat, legs, bolts, and Allen key.
Parts list including seat, legs, bolts, and Allen key.
  • A: Seat
  • B: Legs (x4)
  • C: Bolt-spring-flat washer set (x8) - Bolt size 1/4" * 25
  • D: Allen key (x1)

Assembly Instructions

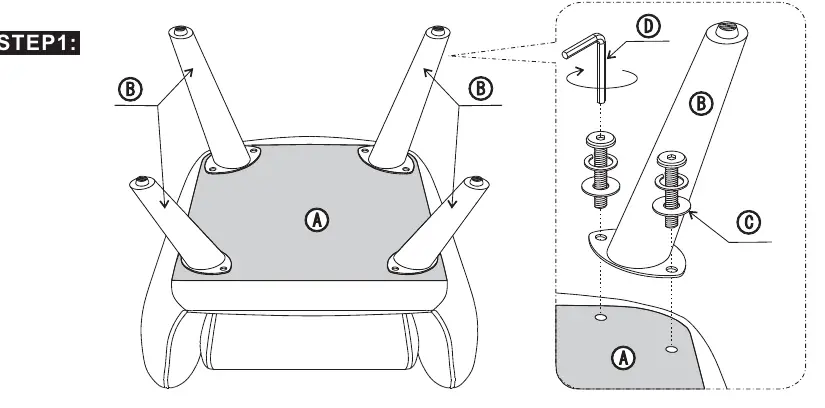

Step 1: Position the seat (A) upside down. Align the legs (B) with the mounting holes on the bottom of the seat. Insert the bolts (C) through the leg mounting plate and into the seat. Tighten securely using the provided Allen key (D).

Step 1: Attaching the legs to the seat.
Step 1: Attaching the legs to the seat.

Step 2: Once all four legs are attached, ensure the chair is stable. The assembly is now complete.

Safety Warnings

  • This product is intended for home use only and is not suitable for commercial establishments.
  • Do not attempt to repair or modify any parts that are broken or defective. If you encounter damaged parts, contact the store immediately.

Manufacturer information

Wayfair LLC

Brand profile
Manufacturer website https://www.wayfair.com Support https://www.wayfair.com/help

Practical help

Common problems

Missing hardware or parts

Check that all hardware and parts are present prior to starting assembly.

Broken or defective parts

Do not attempt to repair or modify the parts. Contact the store immediately.

Before use

  • Verify all parts (Seat, 4 Legs, 8 Bolt sets, Allen key) are present
  • Clear a clean, flat area for assembly
  • Ensure the chair is placed on a stable surface after assembly
