Installation Guide for Wayfair AllModern Miller 2-Piece Upholstered Chaise Sectional

Quick guide from the manual

This document provides the necessary steps to assemble the Wayfair AllModern Miller 2-Piece Upholstered Chaise Sectional. The process involves attaching the legs to the base of the sofa sections and connecting the two main pieces together using the integrated metal brackets.

Parts list

Before beginning assembly, ensure all the following components are present:

• (LHF) Sectional pieces
• Legs (8 count)
• Middle Legs (2 count)
• Allen Key (2 count)
• Screws M8x30mm (32 count)
• Plastic washers (2 count)
• Gaskets (32 count)
• Spring Washers (32 count)

Assembly instructions

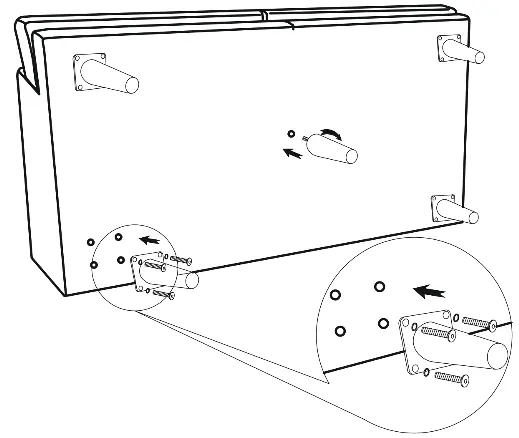

Attaching the legs:

Turn the sectional pieces upside down to access the mounting points. Align the legs with the pre-drilled holes. Secure each leg using the provided screws, spring washers, and gaskets. Ensure all legs are tightened securely using the provided Allen Key.

Connecting the sectional pieces:

Once the legs are attached, place the two sectional pieces in their desired location. Align the metal brackets located on the sides of the pieces. Slide the brackets together to lock the two sections into place.
