Installation Guide for Shapiro 42-Light 4-Tier Chandelier
Step-by-step installation and assembly guide for the Shapiro 42-Light 4-Tier Chandelier. Includes crystal placement diagrams, mounting instructions, and technical specifications.
Quick answers from the manual
Quick answer
- This document provides the assembly and installation diagram for the Shapiro 42-Light 4-Tier Chandelier, including crystal placement and mounting instructions. p. 1
Key actions
- Mount the ceiling bracket and canopy following steps 1-5. p. 1
- Install crystals according to the specified quantities: A (94), B (94), C (94), D (270). p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | E12 | 42 bulbs required | p. 1 |
| Dimensions | 900mm x 1265mm | Diameter x Height | p. 1 |
Where to find it in the PDF
- Installation Diagram p. 1
Table of contents
Important Information
This document provides the assembly and installation diagram for the Shapiro 42-Light 4-Tier Chandelier. Before beginning installation, ensure that the ceiling structure is capable of supporting the weight of the fixture. Always turn off the power supply at the main circuit breaker before starting any electrical work.
Installation and Assembly
The installation process involves securing the ceiling mount and attaching the chandelier body. Follow the numbered steps (1-5) in the diagram to secure the mounting bracket and canopy to the ceiling. Ensure all electrical connections are made according to local codes and that the fixture is securely fastened.
Crystal Arrangement
The chandelier requires specific quantities of crystal pieces to complete the assembly. Ensure you have all components before starting:
- Type A: 94 pieces (200mm)
- Type B: 94 pieces (220mm)
- Type C: 94 pieces (250mm)
- Type D: 270 pieces (100mm)
Technical Specifications
The fixture is designed for 42 bulbs with an E12 base. The total diameter of the chandelier is 900mm, and the total height is 1265mm.
Manufacturer information
Wayfair LLC
Practical help
Before use
- Verify the ceiling structure can support the chandelier's weight
- Turn off power at the circuit breaker
- Verify all crystal pieces (A, B, C, D) are present
- Ensure you have 42 E12 bulbs ready for installation
Images and diagrams

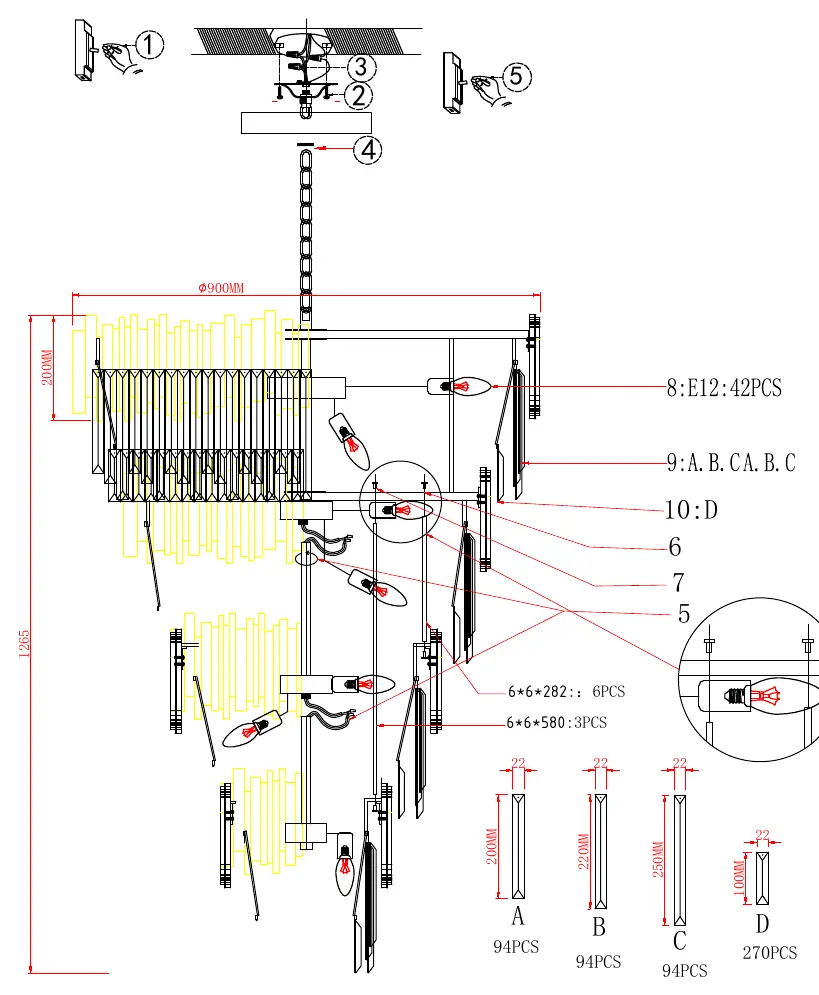

- The diagram illustrates the ceiling mounting process (steps 1-5) and the assembly of the chandelier body.
