Installation Guide for Wunderlich Marathon Windshield 14151-00X
Step-by-step installation guide for the Wunderlich Marathon Windshield 14151-00X. Includes mounting instructions, torque specifications, and assembly tips for a secure fit.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides instructions for installing the Wunderlich Marathon Windshield (Art.-Nr: 14151-00X). The most critical step is to tighten all screws only loosely during the initial assembly to allow for proper alignment. Only after all parts are positioned correctly should you tighten the screws to the specified torque of 2 Nm.
Legend and symbols
The manual uses specific symbols to guide the installation process:
- Torque (M Nm): Indicates the required tightening force.
- Thread locking fluid: Recommended for securing screws.
- Mounting paste: Used for easier assembly.
- Cleaner: For preparing surfaces.
Installation steps
Follow these steps to mount the windshield:

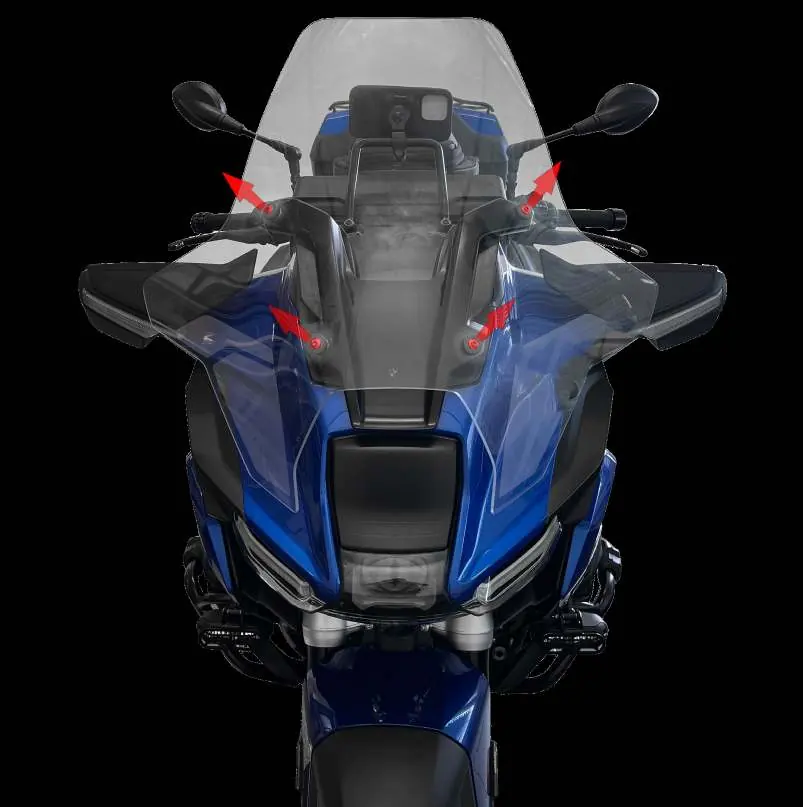

- Prepare the motorcycle front fairing area by cleaning the mounting points.
- Position the Marathon Windshield over the mounting points.
- Insert the screws with the appropriate washers and grommets as shown in the assembly diagram.
- Tighten all screws loosely to ensure the windshield is aligned correctly.

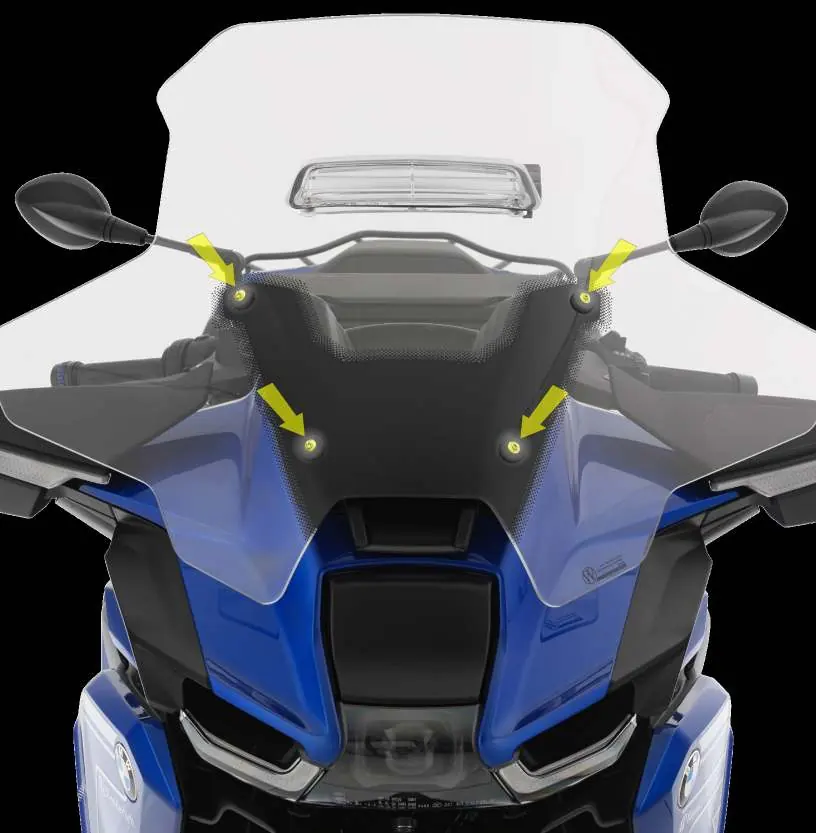

- Once aligned, tighten all screws to the final torque of 2 Nm.
Practical help
Common problems
Ensure all screws are tightened to the specified 2 Nm torque after initial alignment.
Ensure all screws are installed loosely first before final tightening to allow for adjustment.
Before use
- Verify you have the correct model 14151-00X
- Ensure you have thread locking fluid
- Ensure you have a torque wrench
- Check that all original mounting points are clean
