Assembly Guide for Xxxlutz 120126100U Waiting Room Chair
Quick assembly guide for the Xxxlutz 120126100U waiting room chair. Includes step-by-step instructions for frame attachment, alignment, and final adjustments.
Quick guide from the manual
This document provides the necessary steps to assemble the Xxxlutz 120126100U waiting room chair. Ensure you have the required tools (Allen key and screwdriver) and all 16 screws before beginning the assembly process.

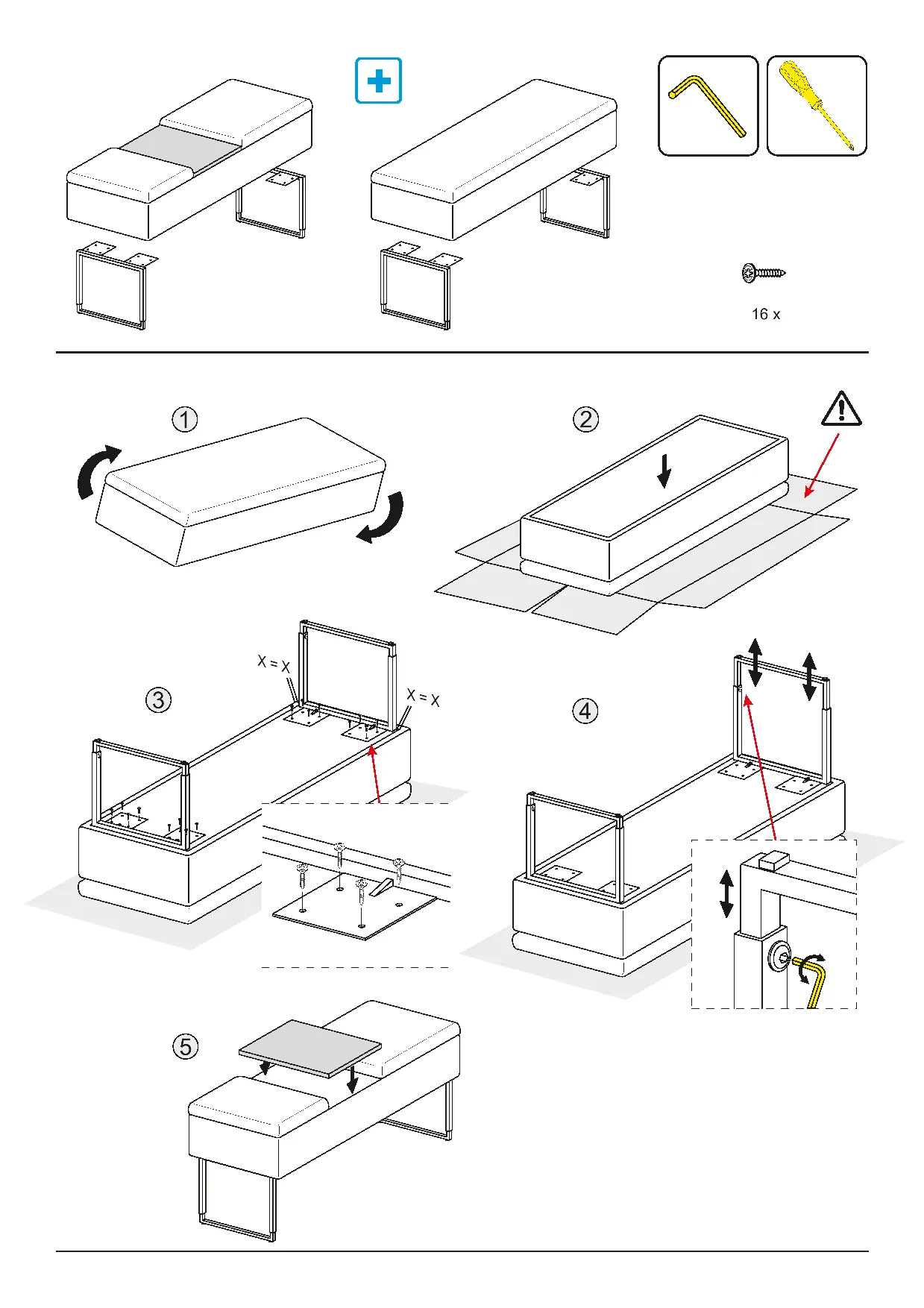

Assembly instructions
- Preparation: Place the seat cushion upside down on a clean, soft surface, such as the shipping cardboard, to prevent damage to the faux leather upholstery.
- Frame positioning: Align the metal leg frames with the pre-drilled mounting points on the underside of the seat. Ensure the frames are positioned symmetrically (X=X) to maintain balance.
- Securing the frame: Use the provided screws to attach the metal frames to the seat base. Ensure all screws are tightened securely.
- Adjustment: If the frame features adjustable components, use the Allen key to loosen or tighten the side bolts to achieve the desired height or alignment.
- Final assembly: Once the frame is secure, carefully turn the chair over. Place the center cushion or accessory piece into the designated slot on the seat.
Manufacturer information
XXXLutz
Practical help
Common problems
Wobbling chair
Ensure the frames are aligned symmetrically (X=X) and all 16 screws are tightened evenly.
Difficulty inserting screws
Check that the frame is perfectly aligned with the pre-drilled holes before attempting to drive the screws.
Before use
- Verify all 16 screws are included in the package.
- Prepare an Allen key and a screwdriver.
- Clear a workspace and use the cardboard packaging to protect the upholstery.
- Ensure the seat is placed on a flat, stable surface during assembly.
