SLR Super Light Roof for Yamaha Tricity 125/155

Product Overview

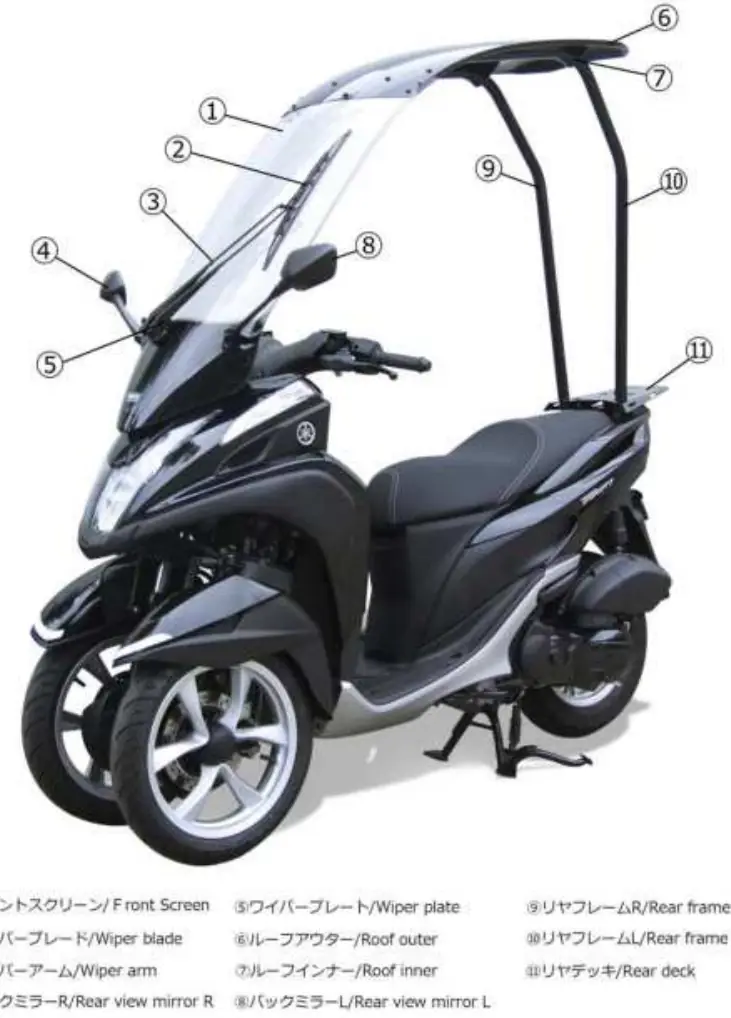

The SLR (Super Light Roof) is a specialized roof kit designed for Yamaha Tricity 125 and 155cc scooters. It provides protection from weather elements, enhancing rider comfort during daily commutes or delivery tasks. The kit includes a front screen, roof structure, and an electric wiper system.

Safety Precautions

Warning: Failure to follow these instructions may result in serious injury or death.

• Installation must be performed by a qualified mechanic at a specialized shop.
• Do not use the vehicle in strong winds, stormy weather, or on highways/expressways.
• Ensure all bolts and nuts are tightened correctly and checked periodically.
• Do not place objects between the front screen and the handle, as this may obstruct vision or steering.
• Avoid using strong acid cleaners or solvents on the front screen to prevent cracking.
• Park in a way that prevents direct sunlight from concentrating on the screen, which could cause heat damage.

Installation and Assembly

The installation process involves removing original components such as the windshield and rear-view mirrors. Key steps include:

• Removing the upper handle cover and front panels.
• Drilling necessary holes in the front panel and rear cover using a hole saw.
• Assembling the front frame and motor unit.
• Installing the roof structure and securing it with provided well-nuts and bolts.
• Connecting the wiper switch harness and testing the wiper operation.

Maintenance and Technical Data

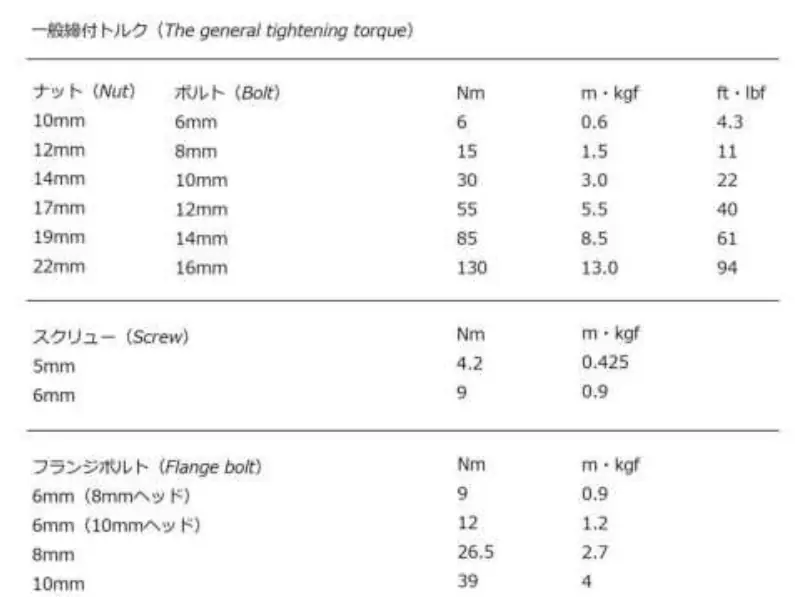

To maintain the product, clean the front screen with water and a soft cloth or sponge. Avoid high-pressure washers. The total weight of the roof kit is approximately 9.9 kg. For technical specifications, refer to the provided torque list for various bolt and screw sizes to ensure proper maintenance and safety.

Disposal

Please dispose of all packaging materials, especially plastic bags, in a manner that prevents suffocation hazards for children. Follow local regulations for the disposal of metal and plastic components when the kit reaches the end of its service life.
