Briggs & Stratton 080000, 090000, 093J00, 100000 Series Engine Operator's Manual
Quick guide for Briggs & Stratton 080000, 090000, 093J00, and 100000 series engines. Includes maintenance schedules, oil and fuel recommendations, starting procedures, and safety information.
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
This manual provides essential safety, operation, and maintenance information for Briggs & Stratton 080000, 090000, 093J00, and 100000 series engines. Always check the oil level before starting. Use clean, fresh, unleaded gasoline with a minimum of 87 octane. For starting, identify your engine's starting system (ReadyStart, Choke System, or Primer System) and follow the specific steps provided in the manual.
Operator Safety
Read and understand the manual before operating or servicing the unit. Be aware of hazards such as fire, explosion, toxic fumes, and hot surfaces. Always operate the engine outdoors and away from windows, doors, and vents to prevent carbon monoxide poisoning. Never use pressurized starter fluids.
Features and Controls
Refer to the figures in the manual to locate engine controls, including the fuel tank, air cleaner, starter cord handle, dipstick, and throttle/choke controls.
Operation
Oil Recommendations
The engine is shipped without oil. Use Briggs & Stratton Warranty Certified oils or other high-quality detergent oils classified for service SF, SG, SH, SJ or higher. 5W-30 Synthetic oil is recommended for most outdoor power equipment. Check the oil level before each use and add oil if necessary, but do not overfill.
Fuel Recommendations
Use clean, fresh, unleaded gasoline with a minimum of 87 octane/87 AKI (91 RON). Gasoline with up to 10% ethanol is permitted. Do not use E15 or E85. Mix an alcohol-free fuel stabilizer with the fuel to prevent gum formation and corrosion.
Starting and Stopping
Follow the specific starting procedure for your engine type (ReadyStart, Choke System, or Primer System). To stop the engine, release the stop lever or move the stop switch/throttle control to the STOP or OFF position.
Maintenance

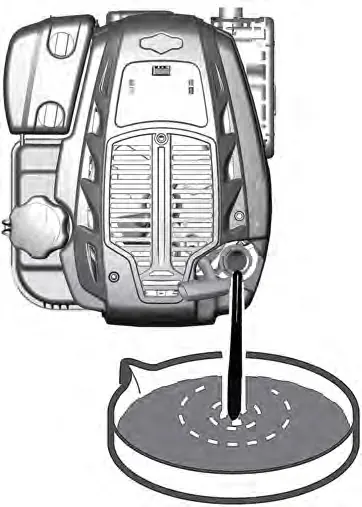

Follow the maintenance schedule to ensure optimal performance. Key tasks include changing the oil, cleaning the air filter, servicing the cooling system, and replacing the spark plug. Do not make unauthorized adjustments to the carburetor or engine speed.
Storage
If storing for more than 30 days, use a fuel stabilizer or drain the fuel system completely. Keep the engine level during storage.
Troubleshooting
If the engine fails to start, check the oil level, fuel level, and spark plug. If the engine is flooded, set the choke to the OPEN or RUN position, move the throttle to the FAST position, and crank until it starts. For further assistance, contact an Authorized Service Dealer or visit BRIGGSandSTRATTON.COM.
Official resources from the manual
Practical help
Common problems
Engine will not start
Check oil level, check fuel level, ensure spark plug wire is connected, and ensure equipment controls are disengaged.
Engine is flooded
Set choke to OPEN or RUN, move throttle to FAST, and crank until the engine starts.
Engine overheats
Clean debris from the air intake grille, cooling fins, and around the muffler.
Before use
- Check engine oil level
- Check air filter condition
- Check fuel level
- Ensure equipment drive controls are disengaged
Specs in practice
- Oil Capacity
- 15 oz (0.44 L) for all listed models.
- Spark Plug Gap
- .020 in (0.51 mm) for 080000, 090000, 093J00; .030 in (0.76 mm) for 100000.
- Spark Plug Torque
- 180 lb-in (20 Nm) for all listed models.
Images and diagrams
- Figures 1-4: Location of engine features and controls (A-M).
- Figure 5: Checking and adding oil.
- Figure 6: Adding fuel.
- Figure 12: Checking spark plug gap.
Model compatibility
- Not designed for fun-karts, go-karts, children's/recreational/sport ATVs, motorbikes, hovercraft, aircraft, or competitive racing vehicles.
