This document provides essential instructions for installing and operating the StarTech.com 14-Outlet 1U Rackmount PDU (1415B8H-RACK-PDU-SP). It covers rack mounting, vertical 0U mounting, and bracket configuration. Always ensure the PDU is used within appropriate server racks or data center environments.
Device Overview
The PDU features 14 total outlets (6 front, 8 rear), a surge protection LED indicator, a manual circuit breaker reset button, and a power switch. It includes pre-installed 4-way mounting brackets that allow for depth adjustment and various mounting orientations.
Installation

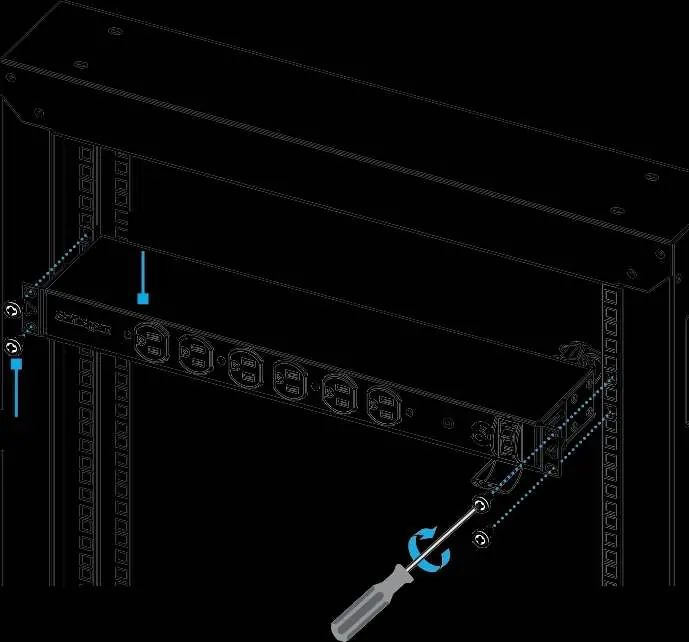

Rack Mounting (19-inch)
- Install the cage nuts (D) into the desired rack positions.
- Align the PDU (A) with the rack rails.
- Secure the PDU to the rack using the provided M5x12mm screws (C) and a Phillips screwdriver.
Vertical 0U Mounting
- Position the PDU vertically within the rack enclosure.
- Align the mounting brackets with the rack's vertical mounting holes.
- Secure the unit to the rack frame using the appropriate hardware.

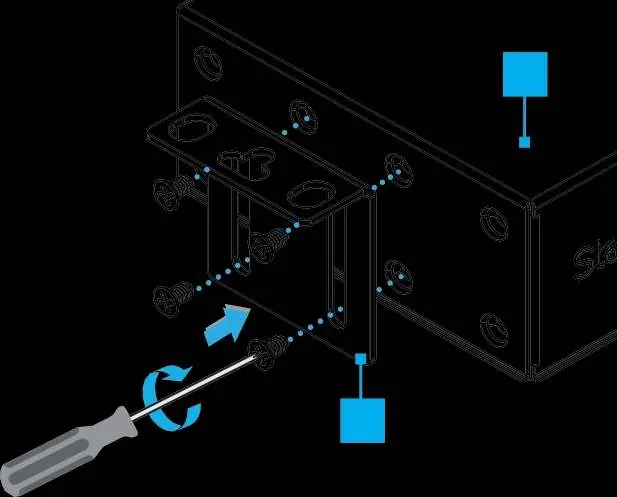

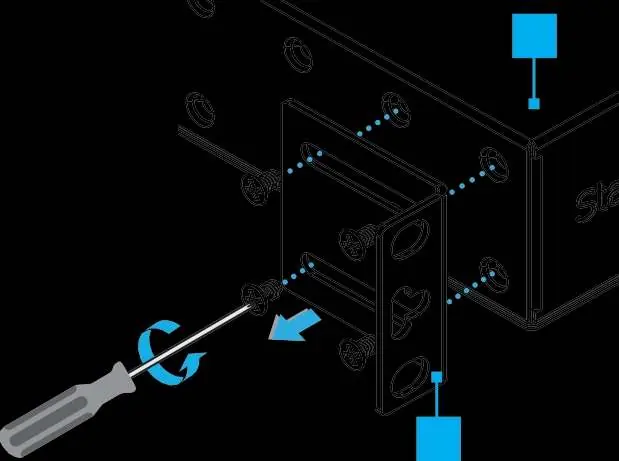

Bracket Adjustment
The 4-way mounting brackets can be removed or repositioned to change the PDU's orientation:
- Use a Phillips screwdriver to remove the screws holding the bracket (B) to the PDU (A).
- Realign the bracket to the desired orientation.
- Reinstall the screws to secure the bracket firmly to the unit.
Safety and Maintenance
- Grounding: Connect a grounding wire (not included, minimum 18 AWG) to the grounding point (9) if required.
- Circuit Breaker: If the unit trips due to excessive load, disconnect non-essential devices, allow the unit to cool for at least 60 seconds, and press the manual reset button (3).
- Warning: Do not touch the product if the circuit board or electrical cables are exposed. Never insert foreign objects into the outlets.
Technical Support
For the latest manuals, technical specifications, and compliance declarations, visit www.StarTech.com/1415B8H-RACK-PDU-SP. For additional self-service options and community forums, visit www.StarTech.com/support.
Official resources from the manual
Practical help
Common problems
Circuit breaker trips
Disconnect non-essential or faulty devices, allow the unit to cool for at least 60 seconds, then press the manual reset button.
Surge protection LED is off
This indicates a surge protection event has occurred; check the connected equipment and power source.
Before use
- Verify the rack type and mounting hole size.
- Ensure all parts are present and undamaged.
- Use a Phillips screwdriver (PH1 for M3, PH2 for M5 screws).
- Confirm the power source is 125V AC.
- If using a grounding wire, ensure it is at least 18 AWG.
Specs in practice
- Surge Protection
- Provides up to 3000 Joules of protection against AC power surges.
Images and diagrams

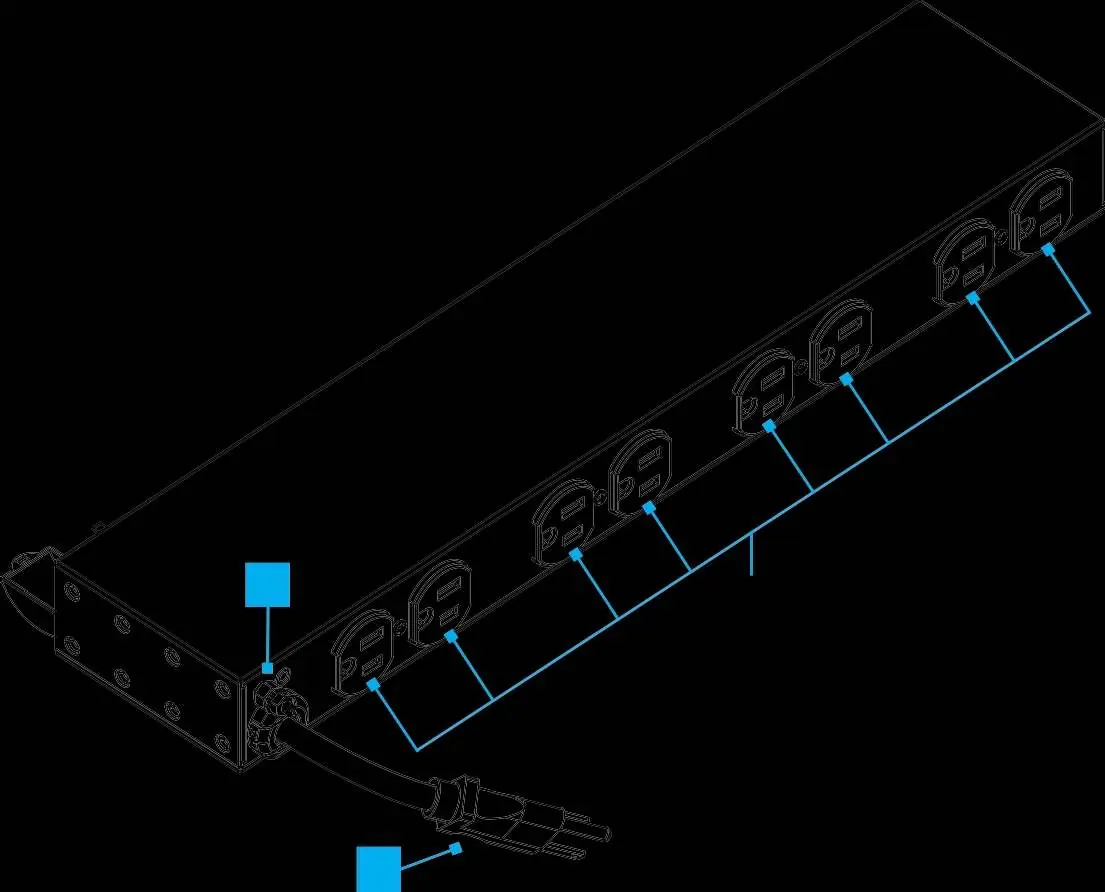

- The front view shows 6 outlets, the power switch, circuit breaker reset, and surge protection LED.
- The rear view shows 8 additional outlets and the integrated power cable.
- The 4-way bracket diagram illustrates how to adjust depth and orientation.
Model compatibility
- Designed exclusively for use in computer rooms, telecommunications, and cloud data centers.
- Compatible with racks requiring M5 screws or cage nuts.
