Abestorm DecDust 1350IG Air Filtration System
Quick guide for the Abestorm DecDust 1350IG air filtration system. Learn about control panel operation, remote control usage, installation, and maintenance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

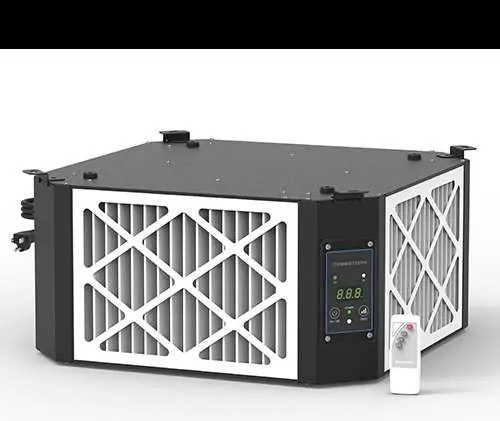

The Abestorm DecDust 1350IG is an industrial air filtration system designed for environments like woodshops, basements, and workshops. The 1350IG model features a built-in ionizer to help neutralize pollutants and odors. The unit is controlled via a digital panel or the included remote control, offering adjustable air flow speeds and a timer function.
Product Overview
The system is housed in a sheet metal spray shell for corrosion resistance and includes a fully-enclosed ball bearing motor with overload protection. It is designed for versatile installation, including ceiling mounting.
Control Panel and Remote
The control panel and remote allow for the following operations:
- ON/OFF: Powers the unit on or off.
- SPEED: Adjusts the air flow speed between low and high settings.
- IONIZER: Toggles the built-in ionizer function (specific to the 1350IG model).
- TIMING: Sets the operation timer from 1H to 9H.
The panel features indicator lights for low speed, high speed, ionizer status, and power. The infrared receiver is located on the control panel to accept signals from the remote.
Installation and Usage
The equipment is designed for easy installation and can be mounted above the air. Ensure the unit is placed in a location that allows for proper air circulation. The system is not affected by humidity, making it suitable for various workshop environments.
Maintenance
The filter is designed to be easily disassembled for cleaning or replacement. Regular maintenance of the filter is essential to maintain air flow efficiency. The unit features a MERV-11 filter capable of capturing particles as small as 1 micron.
Technical Specifications
- Motor: 115V/60Hz, 1.5Amps Max
- Air Flow Speeds: 1050 CFM (Low), 1350 CFM (High)
- Filters: MERV-11 (90% 3-10 micron & 85% 1 micron)
- Timer Settings: 01H-09H
- Remote Control Distance: Max 27 Ft
- Weight: 27 lbs
- Dimensions: 20 1/2 x 20 1/2 x 9 4/5 in
For support, contact Abestorm at (888) 276-9833 or email [email protected]. Additional information is available at www.abestorm.com.
Official resources from the manual
Manufacturer information
Abestorm
Practical help
Common problems
Unit does not power on
Check the power connection and ensure the overload protection has not been triggered.
Remote control not responding
Ensure you are within the 27 ft range and that there is a clear line of sight to the infrared receiver on the control panel.
Reduced air flow
Check the filter for clogs and clean or replace it if necessary.
Before use
- Verify the power supply is 115V/60Hz.
- Ensure the filter is correctly installed.
- Confirm the mounting location is secure and allows for proper air circulation.
- Check that the remote control has functional batteries.
Images and diagrams

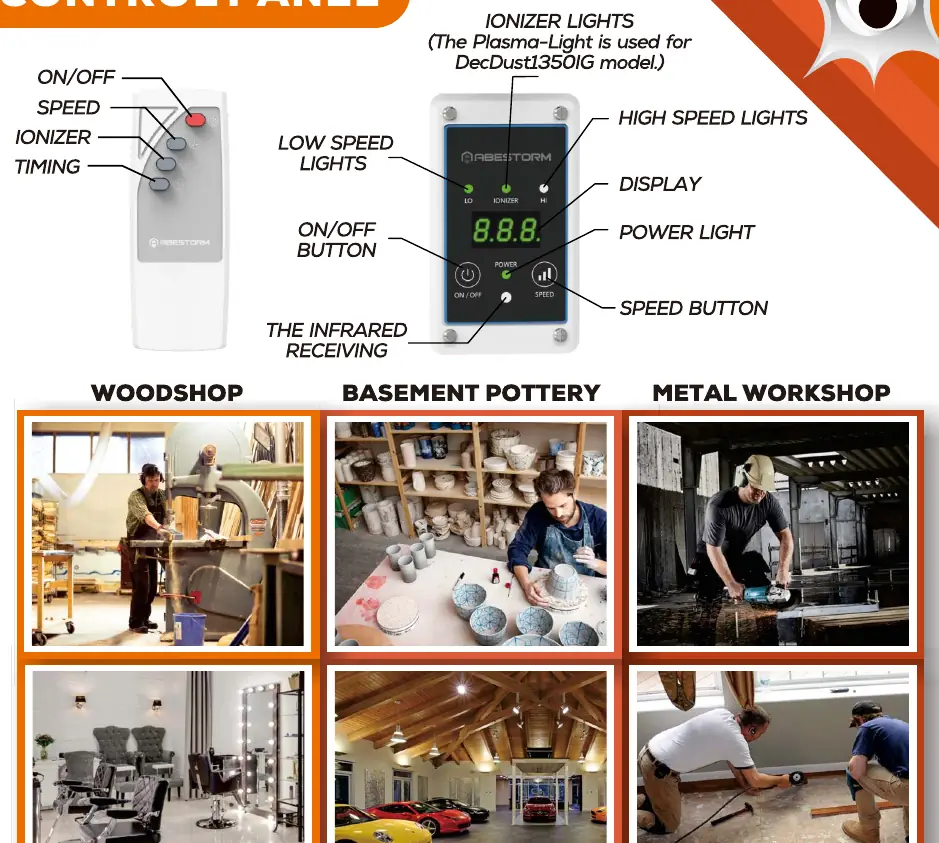

- The control panel displays current speed settings (LO/HI), ionizer status, and power status.
- The remote control mirrors the control panel buttons for convenient operation.
Model compatibility
- The built-in ionizer is specific to the 1350IG model.
- The unit is designed for industrial environments like woodshops, metal workshops, and garages.
