Aideepen 15W USB Soldering Iron

Name: Aideepen 15W USB Soldering Iron
Brand: Aideepen

Portable 15W wireless soldering iron with Type-C charging, adjustable temperature control (180-450°C), and integrated battery for mobile repair tasks.

Table of contents

Product Overview

The Aideepen 15W USB Soldering Iron is a compact, wireless tool designed for precision tasks such as circuit board repair, mobile phone maintenance, electronic component soldering, and manual crafting. Its integrated heating core and tip design allow for rapid heating, reaching working temperatures in seconds.

Technical Specifications

Power: 15W
Battery: 1100mAh polymer battery
Input: DC 5V / 2A
Charging Interface: USB Type-C
Temperature Range: 180-450°C (356-842°F)
Weight: 50g

Operation and Usage

To operate the device, press and hold the power button for 3 seconds to turn it on or off. The soldering iron features an intelligent temperature control system. Use the dedicated buttons to adjust the temperature: single presses increase or decrease the temperature by 5°C, while long presses allow for rapid adjustment. Pressing both the increase and decrease buttons simultaneously toggles between Celsius and Fahrenheit units.

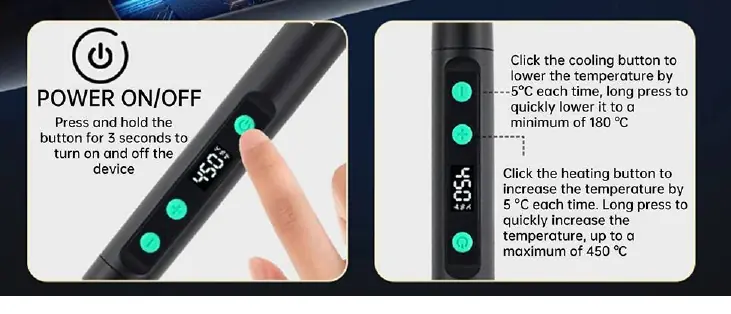

Button functions for power and temperature control

Charging and Maintenance

The device is equipped with a Type-C interface, allowing for convenient charging via power banks, computer USB ports, or wall adapters. The unit supports simultaneous charging and usage. The soldering tip is detachable and can be replaced by unscrewing it from the handle. Keep the tip clean using the included sponge to ensure longevity.

Safety and Troubleshooting

The device includes built-in safety features. If a short circuit is detected, the display will flash 'NO'. If the battery level drops below 5%, the display will flash 'LO' for 5 seconds before the device automatically shuts down to protect the battery. Always ensure the device is turned off when not in use and store it in the provided tool box to prevent accidental burns or damage.
