Owner's Manual for Airstream Interstate 19X LE Outland Edition Touring Coach
Quick guide for the 2026 Airstream Interstate 19X LE Outland Edition, covering key features, technical specifications, bed system operation, storage solutions, and outdoor cooking equipment.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The 2026 Airstream Interstate 19X LE Outland Edition is a specialized touring coach designed for off-road and adventure use. This document provides an overview of its unique features, including an upgraded suspension, versatile bed system, and outdoor living capabilities. Always consult the full owner's manual for detailed loading, weighing, and towing instructions to ensure safe operation.
Vehicle Overview and Features
The Outland Edition is built on a Mercedes-Benz Sprinter 2500 AWD chassis with a 2.0L turbo diesel engine. Key features include:
- Suspension: Van Compass 6.3 system with 2-inch lift and adjustable Falcon 3.3 shocks.
- Exterior: 270-degree awning with integrated LED lighting, TenzingTrailhead brushguard, and all-terrain tires.

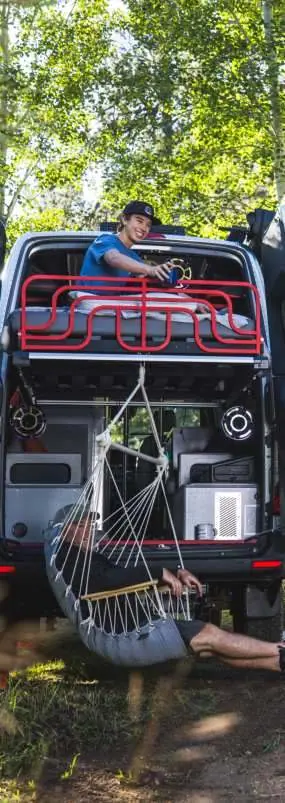

- Bed System: A versatile lofted bed that can be used inside, slid out the rear doors, or removed entirely to maximize storage space.
- Storage: Includes an L-track storage system, overhead lockers, and cabinets.
Cooking and Living
The vehicle is equipped for outdoor adventure with a stowable 1,000W induction cooktop that can be used in the galley or outside. The Dometic fridge is portable and accessible from both inside and outside the vehicle, allowing it to be removed for day trips.
Electrical and Utilities
The coach features a robust energy management system:
- Power: 2,000W pure sine inverter with an 80-amp multi-stage charger.
- Batteries: Two 100 Ah deep-cycle lithium (LiFePO4) batteries with built-in heaters.
- Generator: 2.5 kW LPG ultra-quiet generator with remote start.
- Solar: 250W solar power system with external solar ports.
- Climate: 13,500 BTU air conditioner with soft start and LPG-fired Truma Combi Eco Plus furnace/water heater.
Technical Specifications
- Towing Capacity: Up to 5,000 lbs.
- Fuel Capacity: 24.5 gallons (Diesel).
- Tank Capacities: 20 gallons fresh water, 16 gallons grey water, 9 gallons waste.
- Dimensions: 20 ft 1 in length, 9 ft 9 in height (including A/C).
Support and Warranty
The vehicle includes 24/7 365 Coachnet Roadside Assistance. Warranty coverage includes 3 years/36,000 miles for Airstream components and 5 years/75,000 miles for the Mercedes-Benz chassis, engine, and drive train.
Manufacturer information
Airstream, Inc.
Practical help
Common problems
Overloading the vehicle
Consult the owner's manual for specific loading, weighing, and towing instructions; do not exceed the GVWR of 9,050 lbs.
Towing capacity variations
Actual tow capacity depends on build specifications and vehicle loading (people, cargo, fluids).
Before use
- Check the vehicle sticker for specific weight information.
- Verify the LPG level (7.8 gallons capacity at 80% fill).
- Ensure the Dometic fridge is securely mounted for travel.
- Inspect the L-track storage system for secure gear attachment.
- Confirm the 30 Amp shore power connection is secure.
Model compatibility
- Towing capacity is up to 5,000 lbs, suitable for motorcycles, side-by-sides, or Airstream Basecamp trailers.
- Electrical system includes 5G antenna and pre-wire for connected services.
- Some features or options may be unavailable in certain countries.
