Installation Guide for ALFA AOA-2410M Mesh Omni Antenna
Quick installation guide and technical specifications for the ALFA AOA-2410M 2.4-2.5GHz 10dBi Mesh Omni Antenna. Includes mounting instructions, performance data, and connector details.
Quick answers from the manual
Quick answer
- The AOA-2410M is a 2.4-2.5GHz 10dBi omni-directional antenna with an integrated N-male connector, designed for vertical installation on wireless access points. p. 1
Key actions
- Mount the antenna directly to the access point using the integrated N-male connector. p. 4
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Frequency | 2.4-2.5GHz | Operating range | p. 1 |
| Gain | 10dBi | Signal amplification | p. 1 |
| Connector | N male | Physical interface | p. 1 |
Where to find it in the PDF
- Specifications and Features p. 1

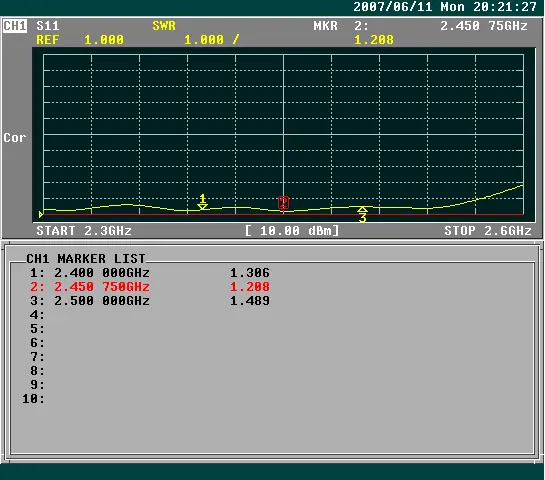

- Test Reports p. 2, 3
- Installation Guide p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The ALFA AOA-2410M is a 10dBi omni-directional antenna designed for 2.4GHz wireless applications. It is intended for vertical installation and connects directly to access points via an integrated N-male connector.
Installation
The antenna is designed for easy mounting. Simply attach the N-male connector of the antenna to the corresponding N-female port on your access point. Ensure the mounting diameter is between 20 and 23 mm.
Technical Specifications
- Frequency: 2.4-2.5 GHz
- Gain: 10 dBi
- VSWR: ≤ 1.5
- Polarization: Vertical
- Power Handling: 50 Watts
- Impedance: 50 Ω
- Beam Width: H: 360° / V: 12°
- Connector: N male
- Operation Temp: -40°C ~ +80°C
- Dimensions: 770 x 17 mm
- Weight: 190g
Applications
This antenna is suitable for various 2.4-2.5 GHz ISM band applications, including:
- IEEE 802.11b, 802.11g, 802.11n Wireless LAN
- Directional and multipoint applications
- Bluetooth
- Public Wireless Hotspot
- WiFi, RFID
- Wireless Video Systems
Manufacturer information
Joint Stock Company ALFA
Practical help
Common problems
The antenna uses an N-male connector. Ensure your access point has a compatible N-female port.
Ensure the antenna is installed vertically and clear of obstructions. Verify the frequency band matches 2.4-2.5GHz.
Before use
- Verify the access point has an N-female connector.
- Ensure the mounting area diameter is between 20-23mm.
- Confirm the operating frequency of your device is 2.4-2.5GHz.
