American Standard Elevate 36" x 72" 2-piece Shower Wall Set Specification Sheet
Technical specifications and product details for the American Standard Elevate 36" x 72" 2-piece Shower Wall Set (Model 2947SWT36.011). Includes dimensions, installation requirements, and compatible accessories.
Table of contents
Quick Overview
The American Standard Elevate 36" x 72" 2-piece Shower Wall Set (Model 2947SWT36.011) is a durable, easy-to-clean wall system designed for residential bathrooms. It features a subway-patterned design with a tile-like texture, providing the aesthetic of traditional tile without the maintenance of grout.
Product Features
- Material: High-impact polystyrene, which is easy to clean and maintain.
- Storage: Includes 3 built-in shelves for storage and a convenient corner shaving ledge.
- Design: Subway patterned design with a tile-like texture.
- Warranty: 10-year warranty included.
Installation Requirements
This product is designed for a direct-to-stud installation. Please note that backing material is required for installation and must be purchased separately.
Dimensions
The nominal dimensions for this unit are 36" wide x 36" deep x 72" high (914 x 914 x 1829 mm).
Compatible Accessories
The following items are specified for use with this wall set:
- Shower Base: A8016T-CO.011
- Shower Door: AM00840400
- Color: .011 Arctic White
Practical help
Before use
- Ensure the shower base is compatible (A8016T-CO.011).
- Verify wall studs are prepared for direct-to-stud installation.
- Ensure backing material is purchased separately, as it is required for installation.
Images and diagrams

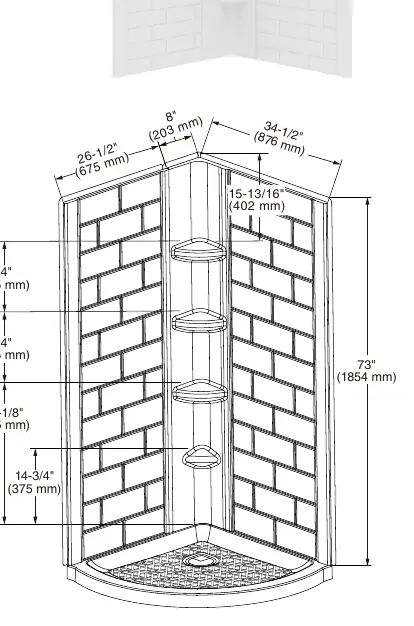

- The diagram provides precise measurements for the wall set, including shelf heights and corner dimensions.
