User Guide for Best Choice Products 12V Ride-On with Remote
A comprehensive guide for the Best Choice Products 12V Ride-On, covering assembly, charging, remote control pairing, and safety instructions.
Table of contents
Quick guide from the manual
This document provides essential instructions for the assembly and safe operation of the Best Choice Products 12V Ride-On. Key requirements include adult assembly, a 12-hour initial battery charge, and strict adherence to weight limits (61 lbs) and age ranges (3-8 years). The vehicle is designed for flat, hard surfaces only.
Safety and Warnings
- Age Range: 3 to 8 years old.
- Weight Capacity: 61 lbs.
- Surface: Use only on flat, hard surfaces. Avoid slopes, wet areas, or public roads.
- Supervision: Adult supervision is required at all times.
- Battery Safety: Never open the battery. Use only the supplied charger. Charge in a well-ventilated area away from flammable materials.
Product Assembly
Assembly requires two people and approximately 45 minutes. Tools needed: plastic wrench (provided) and a Phillips screwdriver.

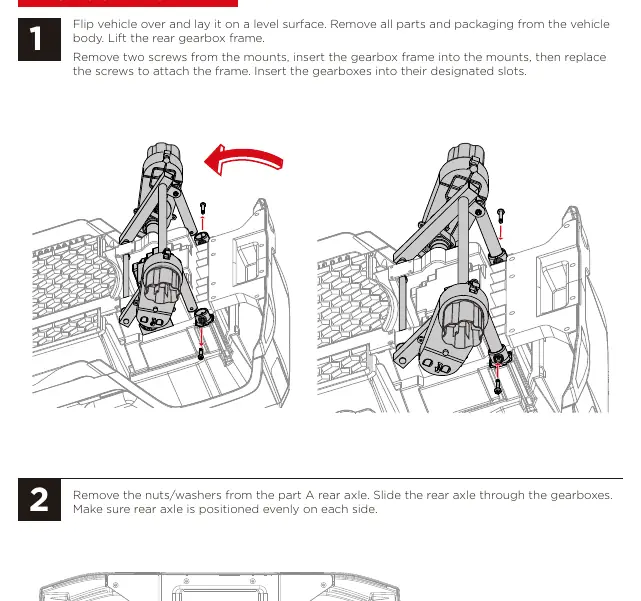

- Step 1-2: Install the rear gearbox frame and slide the rear axle through the gearboxes.
- Step 3-5: Attach wheels using the provided nuts, washers, and caps. Install the front axle and steering column.
- Step 6-7: Connect the steering wheel and snap on the windshield and side mirrors.
- Step 8-10: Connect the battery to the circuit board, then attach the seat and backrest using the provided screws.
- Step 11: Assemble the back frame with lights and insert it into the rear of the vehicle.
Charging Instructions
The charging port is located under the seat. Charge the battery for 12 hours before the first use. Subsequent charges should take 8-12 hours. Do not charge for more than 20 hours to avoid permanent damage. Always check the battery and charger for wear before use.
Operation and Features
The vehicle features a pedal for forward/reverse movement and a high/low speed switch located under the seat. The media player supports music and FM radio, and can be paired with audio devices via Bluetooth. The remote control overrides manual operation; to link it, turn the vehicle off, install 2 AAA batteries in the remote, then turn the vehicle on.
Maintenance
Store the vehicle indoors or cover it with a tarp to protect it from weather and sun fading. Do not wash with a hose or soap. Charge the battery at least once a month to maintain its lifespan.
Manufacturer information
Best Choice Products
Practical help
Common problems
Vehicle does not move
Check if the battery is charged, ensure switches are fully pressed, and verify that battery connectors are plugged in.
Slow speed
Charge the battery, reduce the weight on the vehicle, or move to a flat, paved surface.
Vehicle is silent
Ensure the steering wheel connector is properly connected.
Difficulty shifting between forward/reverse
Only attempt to shift gears when the vehicle is at a complete stop.
Before use
- Charge the battery for 12 hours before the first use.
- Ensure all parts are assembled and screws are tightened.
- Verify the battery connector is securely plugged into the circuit board.
- Check that the remote control has fresh AAA batteries and is linked to the vehicle.
- Ensure the child is within the 3-8 age range and under 61 lbs.
Specs in practice
- Battery Type
- 12V 4.5AH rechargeable battery.
Images and diagrams
- The dashboard diagram shows the location of the power button, lights, horn, and media player controls.
- The under-seat diagram identifies the high/low speed switch and the charging port location.
Model compatibility
- Only use the supplied battery and charger.
- Remote control overrides manual pedal operation.
