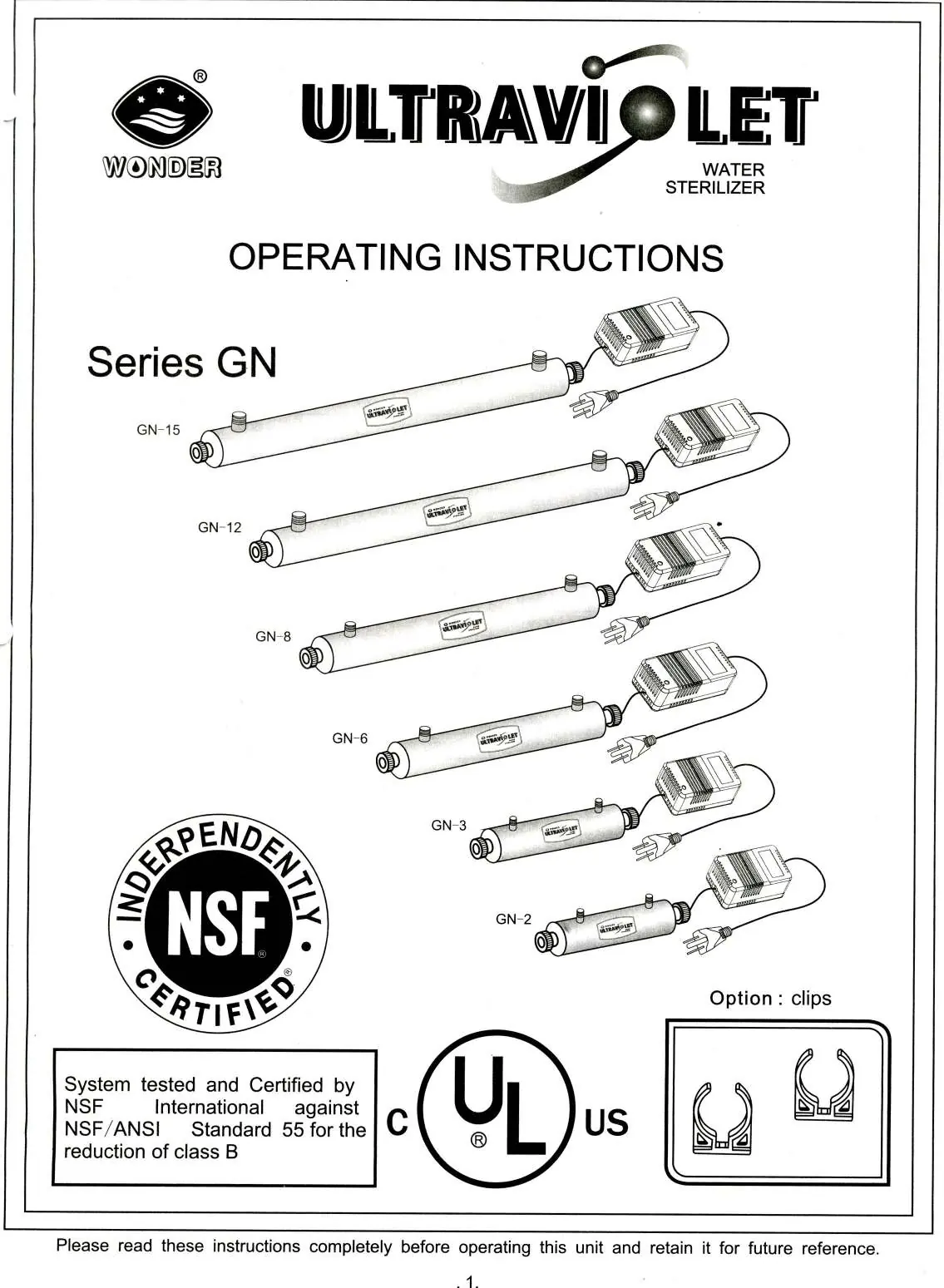

User Manual for WonderLight UV Sterilizer Series GN
Comprehensive user guide for the WonderLight UV Sterilizer Series GN. Includes installation requirements, water quality standards, maintenance procedures, and technical specifications for models GN-2 through GN-15.
Table of contents
Manual images
Click an image to enlargeQuick Guide
The WonderLight UV Sterilizer is designed to disinfect water by exposing it to ultraviolet light. Proper installation and routine maintenance are essential for effective operation. Key indicators include a green light on the ballast for normal operation and a red light/alarm for lamp failure. The system requires specific water quality conditions to function effectively.
Pre-Installation Requirements
Before installing the unit, ensure your water supply meets the following quality standards:
- Hardness: Less than 7 grains per gallon (or less than 120 PPM).
- Clarity: Water must be crystal clear and free of color.
- Iron: Less than 0.3 mg/L.
- Manganese: Less than 0.05 mg/L.
- pH Range: 6.5 to 9.5.
- Pressure: Minimum 10 PSI, Maximum 100 PSI.
If you have an electric water heater, shut off the power to the heater before beginning installation to prevent damage if the tank drains.
Installation Guidelines
Follow these best practices for piping and drain installation:
- Install the UV unit using stainless steel flexible lines or pipe unions to allow for easy removal.
- Do not connect PVC fittings directly to the UV sterilizer, as UV rays can degrade PVC. Use stainless steel lines to isolate the unit.
- Do not sweat copper pipes directly onto the UV unit.
- Install a 5-micron pre-filter prior to the UV sterilizer to remove fine particles that may block UV transmission.
- Consider installing a series of 3 ball valves to create a by-pass around the UV unit for maintenance.
- After installation, add 1/2 to 1 cup of bleach to the pre-filter or directly to the piping to shock the system and sanitize household pipes.
Operation and Indicators
Once installed, turn on the UV lamp. Observe the ballast:
- Green Light: The UV lamp is operating normally, and water is being sterilized.
- Red Light: The lamp is not operating.
- Alarm: If the alarm sounds and the red light is lit, the lamp is burned out and must be replaced.

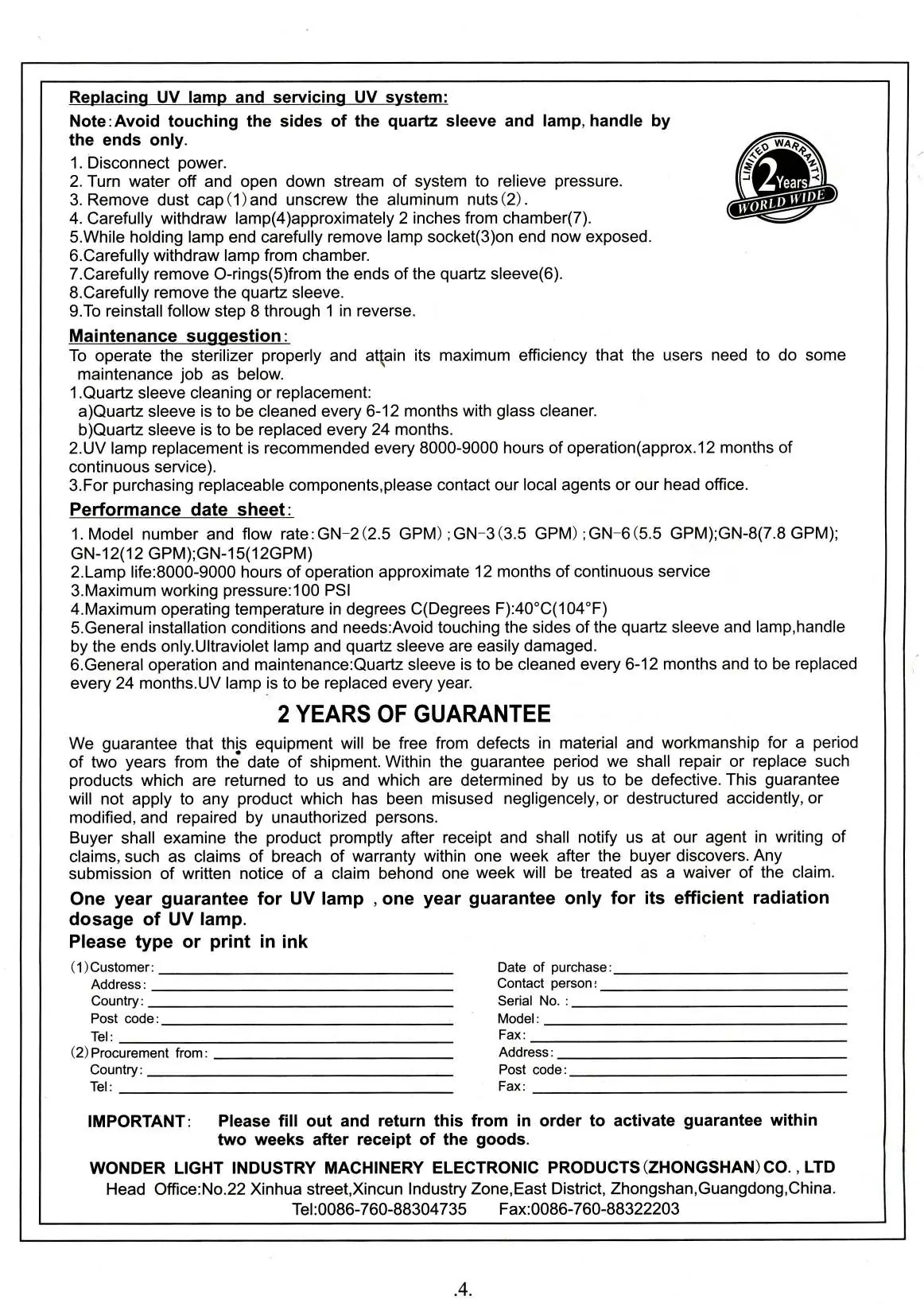

Maintenance and Cleaning
To ensure maximum efficiency, perform the following maintenance:
- Quartz Sleeve: Clean every 6-12 months with a damp cloth and glass cleaner. Replace every 24 months.
- UV Lamp: Replace every 12 months (approximately 8000-9000 hours of operation).
- Sanitization: When changing the lamp, it is recommended to sanitize the household piping with chlorine or hydrogen peroxide.
- Handling: Always handle the quartz sleeve and lamp by the ends only to avoid touching the sides.
Technical Specifications
The GN series includes models GN-2, GN-3, GN-6, GN-8, GN-12, and GN-15. Key parameters vary by model:
- Flow Rates: Range from 2.5 GPM (GN-2) to 12 GPM (GN-15) NSF suggested flow.
- Power: 100-240V, 50-60Hz.
- Ambient Temperature: 2°C to 40°C (32°F to 122°F).
- Chamber Material: 304SS.
Practical help
Common problems
Red light on ballast is lit
The lamp is not operating. Check connections or replace the lamp.
Alarm sounds and red light is lit
The lamp is burned out. Replace the UV lamp immediately.
Water not effectively sterilized
Check if water quality meets requirements (hardness, iron, manganese, pH) or if the quartz sleeve needs cleaning.
Before use
- Verify water hardness is less than 7 grains per gallon (120 PPM).
- Ensure water is clear and free of color.
- Check iron levels are below 0.3 mg/L.
- Confirm pH is between 6.5 and 9.5.
- Ensure minimum water pressure of 10 PSI.
- Install a 5-micron pre-filter.
Specs in practice
- NSF Suggested Flow Rate
- The recommended water flow speed for optimal sterilization performance.
- Operating Pressure
- The safe water pressure range for the unit (10-100 PSI).
- Ambient Temperature
- The safe operating temperature range for the environment (2-40°C).
Images and diagrams

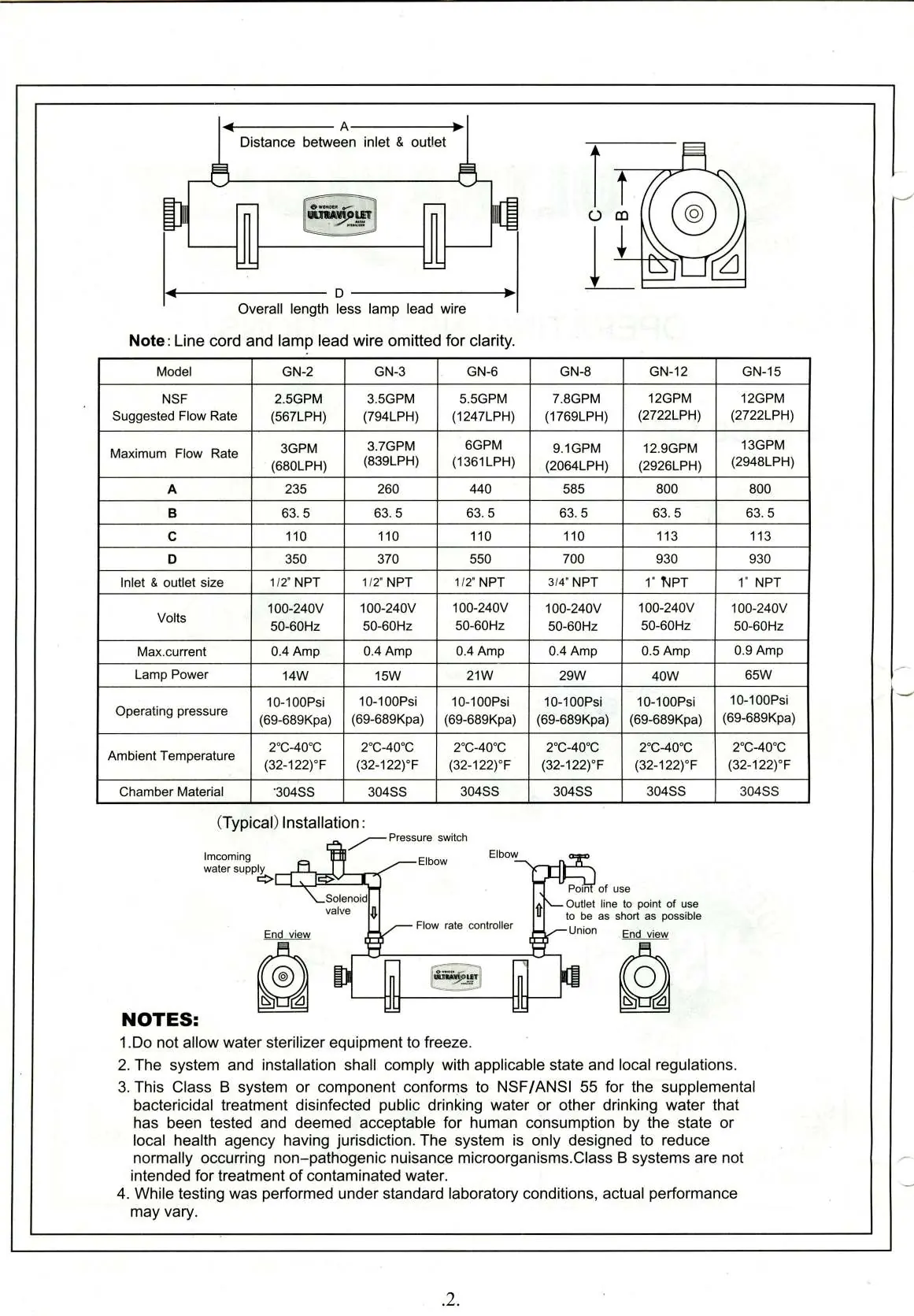

- Typical Flow Diagram: Shows the sequence of installation: Incoming main line -> Pre-filter -> Water Softener (optional) -> UV Sterilizer -> Treated water out.
Model compatibility
- Do not connect PVC fittings directly to the UV sterilizer; use stainless steel lines.
- Do not sweat copper pipes directly on the UV unit.
- Install a 3-ball valve by-pass system for easy maintenance.
