ClosetMaid 10-Inch White Wood Closet Shelf Kit Installation Guide
Step-by-step installation instructions for the ClosetMaid 10-Inch White Wood Closet Shelf Kit. Learn how to mount brackets to wall studs, position the shelf, and secure it properly.
Quick Installation Guide
This document provides instructions for installing the ClosetMaid 10-Inch White Wood Closet Shelf Kit into wall studs. Ensure you have a level, a screwdriver, and the appropriate screws before beginning.
Installation Steps
- Mark Location: Place the bracket at the desired height and mark the location for the top screw with a pencil.
- Mount Bracket: Drive a #8 x 1.25 in. screw into the wall at the marked location until the head is about 0.25 in. (6.35 mm) from the wall. Slide the bracket onto the top screw.
- Secure Bracket: Using a level, ensure the bracket is straight. Drive a second #8 x 1.25 in. screw through the bottom hole of the bracket. Tighten the top screw. Repeat these steps for any additional brackets.

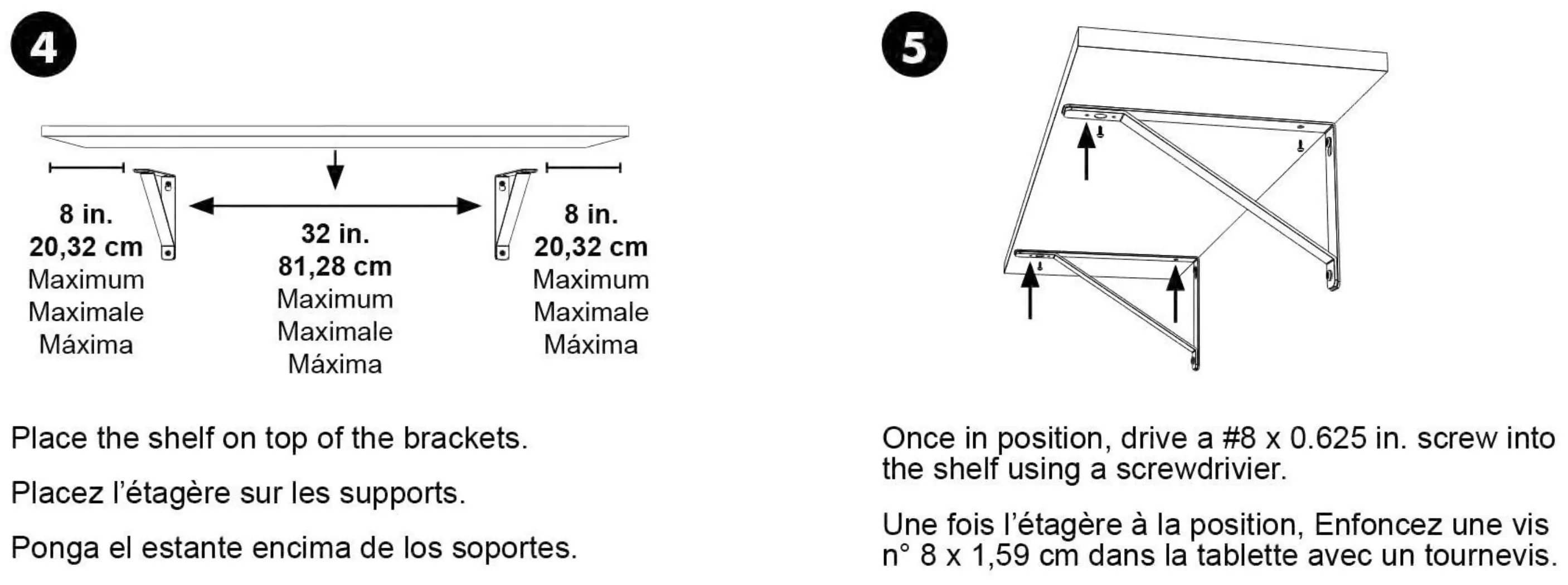

- Position Shelf: Place the shelf on top of the brackets. Ensure the overhang on the sides does not exceed 8 in. (20.32 cm) and the distance between brackets does not exceed 32 in. (81.28 cm).
- Fasten Shelf: Once in position, drive a #8 x 0.625 in. screw into the shelf using a screwdriver to secure it to the brackets.
Manufacturer information
ClosetMaid
Practical help
Common problems
Shelf is not level
Use a level during step 3 to ensure the bracket is straight before driving the bottom screw.
Bracket is loose
Ensure the top screw is driven into a wall stud and tightened properly after the bottom screw is installed.
Before use
- Verify you have a level
- Ensure you have a screwdriver
- Locate wall studs for mounting
- Confirm you have #8 x 1.25 in. screws for wall mounting
- Confirm you have #8 x 0.625 in. screws for securing the shelf
Specs in practice
- Max side overhang
- 8 inches (20.32 cm) maximum overhang on the sides of the brackets.
- Max bracket spacing
- 32 inches (81.28 cm) maximum distance between brackets.
- Wall screw size
- #8 x 1.25 in. screw used for mounting brackets to the wall.
- Shelf screw size
- #8 x 0.625 in. screw used for securing the shelf to the bracket.
Model compatibility
- Designed for stud installation.
