Cobra 148GTL-DX 120-Channel Mobile Radio Instruction Manual

Product Overview

The Cobra 148GTL-DX is an advanced 120-channel Citizens Band (CB) transceiver designed for mobile use. It features Phase Lock Loop (PLL) circuitry, supporting AM, FM, SSB (USB/LSB), and CW modes. The unit is built for reliability in mobile environments and offers high-performance reception with adjustable RF gain and noise blanker controls.

Technical Specifications

• Channels: 120 FM, 120 AM, 120 LSB, 120 USB, 120 CW
• Frequency Control: PLL synthesizer
• Input Voltage: 13.8V DC nominal
• Power Output: 5W (AM/FM/CW), 12W PEP (SSB)
• Dimensions: 2-3/8 inch (H) x 7-7/8 inch (W) x 9-1/4 inch (D)
• Weight: 5 lbs

Installation

The radio is supplied with a universal mounting bracket. Ensure a solid mechanical mount and a good electrical connection to the vehicle chassis. Connect the red power wire to a 13.8V DC source (ideally switched with the ignition) and the black wire to a clean ground point. The antenna should be properly matched to the transceiver using the built-in SWR meter to ensure maximum performance and prevent damage to the transmitter.

Operation

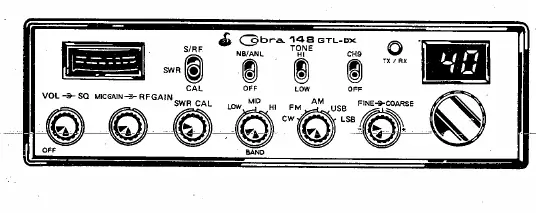

The front panel includes controls for volume, squelch, microphone gain, RF gain, and mode selection. To transmit, select the desired channel, ensure the channel is clear, and use the push-to-talk button on the microphone. The SWR meter is essential for monitoring antenna performance; readings should ideally be 1.5 or below. Channel 9 is reserved for emergency communications only.

Maintenance and Troubleshooting

The unit is designed for high reliability. If performance issues arise, first verify that all connections (power, antenna, microphone) are secure and that the antenna is properly tuned. If problems persist, consult the warranty service instructions provided in the manual. Do not attempt unauthorized repairs, as this may void the warranty.
