Danfoss 013R9301 VHS Cover Installation Guide

Quick installation guide for the Danfoss 013R9301 VHS cover, including mounting instructions for snap-lock and other sensors, plus guidelines for electrostatic powder lacquering.

Table of contents

Manual images

Jump to the section
Installing the cover on a snap-lock sensor Page 1 Using the retaining spring for other sensors Page 1

Quick guide from the manual

This document provides instructions for installing the Danfoss VHS cover on radiator sensors. It covers two mounting methods depending on the sensor type and provides technical specifications for electrostatic powder lacquering of the cover.

Installation

The installation method depends on the type of sensor:

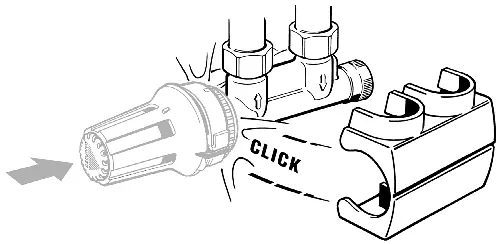

Installing the cover on a snap-lock sensor
Installing the cover on a snap-lock sensor
Using the retaining spring for other sensors
Using the retaining spring for other sensors
  • Danfoss snap-lock sensors: Simply press the cover onto the sensor until it clicks into place.
  • Other sensor elements: Use the provided retaining spring to secure the cover onto the sensor as shown in the diagrams.

Electrostatic powder lacquering

If you intend to apply an electrostatic powder coating to the cover, follow these technical guidelines:

  • Material: Black Noryl GTX 974.
  • Pre-treatment: None required (material contains conductive components).
  • Temperature: Maximum 180 °C for 10 minutes.
  • Lacquer: Infralit PE/EP 8140 or similar.
  • Moisture removal: Dry at 180 °C for 10 minutes before coating.
  • Suspension: Fasten the cover from the inside.
  • Layer thickness: Approximately 100 µ (similar to a radiator).

Troubleshooting

If you encounter an "orange peel" effect during the lacquering process, check for the following issues:

  • Inadequate drying.
  • Drying time is too short.
  • Temperature is too low.

Manufacturer information

Danfoss A/S

Brand profile
Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Orange peel effect during powder coating

Ensure adequate drying, increase drying time, or increase the temperature.

Before use

  • Identify if your sensor is a snap-lock type or another model.
  • If using a non-snap-lock sensor, ensure you have the retaining spring.
  • For powder coating, ensure the cover is dry (dry at 180 °C for 10 minutes first).
