Defender Z9 16W Soundbar

Product Overview

The Defender Z9 is a compact 16W soundbar designed for versatile audio playback. It features Bluetooth 5.3 connectivity, an integrated MP3 player, FM radio, and an AUX input. The device supports TWS (True Wireless Stereo) mode, allowing two Z9 units to be paired together for a 2.0 stereo sound system.

Technical Specifications

• Total Output Power (RMS): 16 W
• Frequency Range: 100–20000 Hz
• Connectivity: Bluetooth 5.3, AUX, USB flash drive, MicroSD card
• Battery: 2000 mAh Li-Ion
• Charging: Type-C 5V
• Dimensions/Weight: Compact design with rubber feet for stability

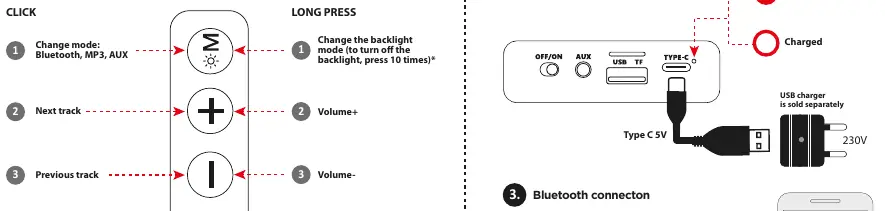

Setup and Operation

To power on the device, use the dedicated On/Off switch. Mode selection (Bluetooth, MP3, AUX) is performed via a short press on the mode button. For TWS mode, turn on both speakers, select Bluetooth mode on each, and perform a long press on one to initiate pairing.

Bluetooth and AUX Playback

To connect via Bluetooth, select the Bluetooth mode and pair with 'Z9' on your phone. For wired connections, use the AUX port. Note that if connecting to a TV, a headphone output is required. For laptops or smartphones, a 2 TRS (F) to TRRS (M) adapter may be necessary.

FM Radio

Connect the Type-C or AUX cable to serve as an antenna. Select FM mode and perform a long press to start automatic station searching. Wait 2-3 minutes for the process to complete.

Safety and Maintenance

Keep the device away from extreme temperatures, humidity, and liquids. Do not disassemble the unit, as it contains no user-serviceable parts. If the device was transported in sub-zero temperatures, allow it to warm up to room temperature (+16-25°C) for 3 hours before use. Turn off the device when not in use for extended periods.

Troubleshooting and Disposal

If you experience background noise while the backlight is on, you may turn off the backlight to improve audio clarity. For disposal, do not discard the device or its battery with household waste; deliver it to an appropriate collection facility for electrical and electronic equipment recycling.
