DS18 EXL-X15.4D 15-Inch Subwoofer Owner's Manual

Product Overview

The DS18 EXL-X15.4D is a high-performance 15-inch subwoofer engineered for powerful bass reproduction in automotive audio systems. It features a robust motor structure with a 2.57-inch voice coil, a non-pressed paper and glass fiber cone, and a durable foam surround, designed to handle high power levels reliably.

Technical Specifications

• Nominal Diameter: 15 inches (381 mm)
• Nominal Impedance: 4+4 Ohms
• RMS Power Handling: 1250 Watts
• MAX Power Handling: 2500 Watts
• Sensitivity: 92 dB
• Frequency Response: 25Hz - 1.5KHz
• Recommended Low Pass Crossover: 120 Hz

Enclosure Recommendations

For optimal performance, the use of a ported enclosure is required. Sealed boxes are not recommended for this model. Detailed construction plans are provided for both single and double subwoofer configurations, including specific wood cut dimensions and port tuning requirements to achieve a target tuning frequency of 45 Hz.

Installation and Setup

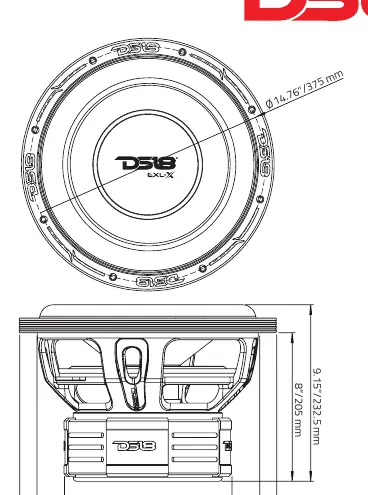

Ensure the subwoofer is mounted securely in a rigid enclosure built to the specified internal volume requirements. The front mount baffle cutout diameter is 14 inches (355 mm) with a mounting depth of 8 inches (205 mm). Proper wiring of the dual voice coils is essential to match the amplifier's impedance capabilities. Always ensure the enclosure is airtight and constructed from high-quality materials, such as 0.75-inch (19mm) thick wood, to prevent unwanted vibrations and air leaks.

Maintenance and Troubleshooting

Regularly inspect the subwoofer for any signs of mechanical damage or loose connections. If the output sounds distorted or weak, verify the amplifier settings, check for proper wiring polarity, and ensure the enclosure remains structurally sound. Avoid overdriving the subwoofer beyond its rated power handling to prevent thermal damage to the voice coil.
