OMNITRONIC MAXX 1508NG-1810NG Active PA System

Product Overview

The OMNITRONIC MAXX 1508NG and 1810NG are high-performance active 2.1 PA systems designed for mobile DJs, musicians, and event organizers. These systems feature a DSP-controlled amplifier delivering up to 800W of power, equipped with a built-in limiter to prevent overload. The integrated 4-channel mixer provides versatile connectivity for microphones, instruments, keyboards, and laptops.

Key Features

• Mobile 2.1 System: Includes a powerful bass-reflex subwoofer and two satellite speakers.
• Bluetooth Connectivity: Integrated streaming with TWS (True Wireless Stereo) support for linking two systems wirelessly.
• DSP Control: Built-in EQ presets for quick, application-specific sound adjustments.
• Rugged Design: MDF enclosures with scratch-resistant lacquer, steel grilles, and ergonomic handles.

Safety Instructions

To ensure safe operation and prevent damage, please observe the following:

• Protect the device from moisture, rain, and liquids.
• Ensure the device is connected to a properly grounded outlet (Protection Class I).
• Avoid operating the system during thunderstorms.
• Do not block ventilation or expose the unit to extreme heat.
• Always use the original packaging for transport to prevent damage.

Setup and Operation

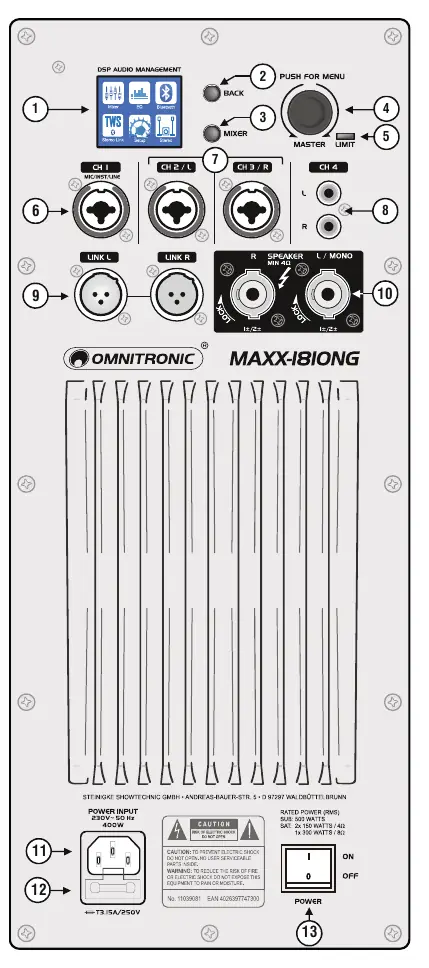

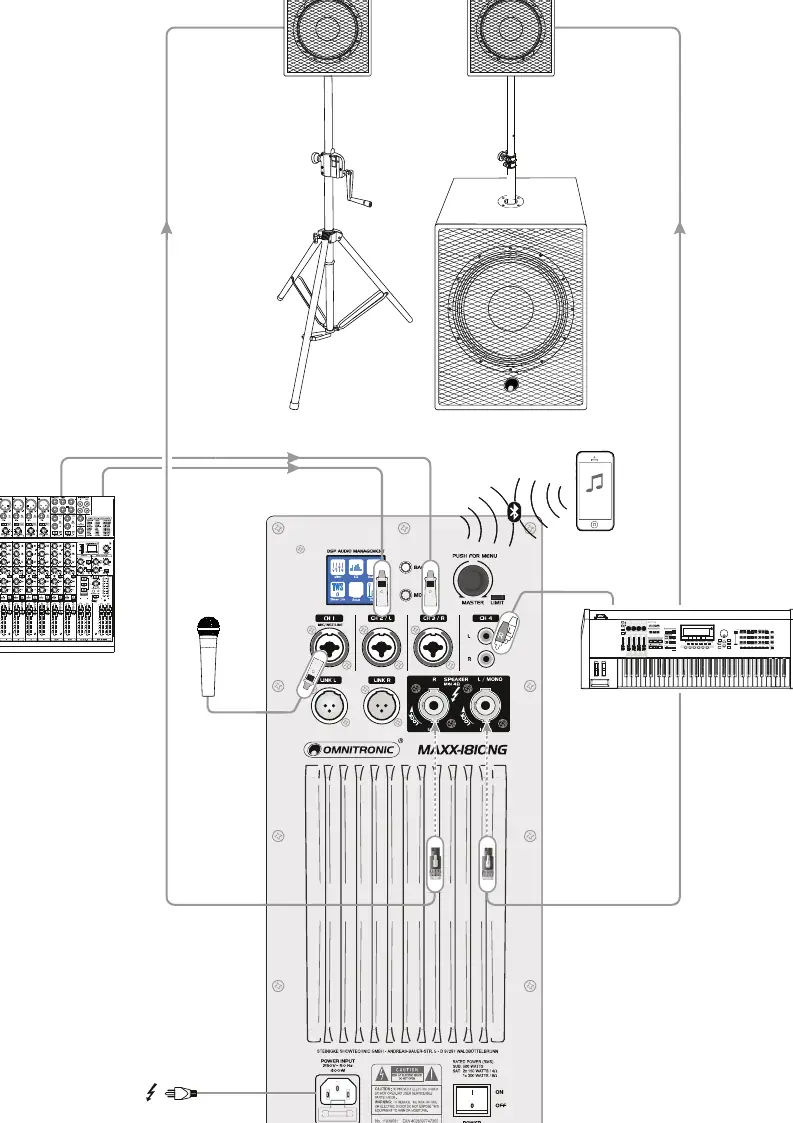

The system is designed for indoor use. Place the subwoofer on a stable, vibration-free surface. Satellite speakers can be placed freely or mounted on stands using the integrated flanges. Before connecting any audio sources, ensure the system is powered off or volume controls are set to minimum. Use the MASTER knob to navigate the DSP menu for volume, EQ, and Bluetooth settings. For stereo operation, use the TWS function to link two MAXX systems wirelessly.

Maintenance and Troubleshooting

Regularly clean the exterior with a soft, lint-free, damp cloth. Do not use solvents. If the system produces distorted sound, it may indicate an overload or a defective speaker; discontinue use and contact an authorized dealer. The device contains no user-serviceable parts inside. If the fuse needs replacement, ensure the device is disconnected from the mains and use a fuse of the same type and rating.

Disposal

When the product reaches the end of its service life, dispose of it according to local environmental regulations. Do not dispose of the unit or its batteries in household waste; use designated recycling facilities.
