Dualit 11L Soup Kettle Instruction Manual
Quick guide for the Dualit 11L Soup Kettle, covering setup, wet and dry heat operation, cleaning, and safety precautions.
Table of contents
Quick guide from the manual
The Dualit 11L Soup Kettle (Model: DSKH) is a professional-grade appliance designed to keep pre-heated food warm. It is not intended for cooking food. The unit supports both wet and dry heat operation and must be used on a stable, level surface with at least 200mm of clearance from walls and cupboards.
Device components
- Hinged lid
- Stainless steel liner
- Collar
- Main body
- Setting indicator
- Temperature control (0 = Off)
- Power light
Setup and assembly
Before first use, wash the stainless steel liner and lid in warm soapy water. Place the collar on top of the main body and insert the stainless steel liner. Once assembled, the liner secures the collar and lid in place.
Operation modes
Wet heat operation: Add 200ml of water into the inner casting. Do not exceed the eight water level markers at the base. The liner must not float. Check water levels every 15 minutes and refill as needed to prevent evaporation and dry heating.
Dry heat operation: Increase the temperature setting by one number compared to the wet method to maintain the equivalent temperature.
General usage: Add pre-heated food to the liner. Rotate the temperature knob clockwise to the desired setting (1-8). The power light will illuminate. Always operate at the lowest possible temperature to minimize energy costs. Keep the lid closed when not serving.
Cleaning and maintenance
Switch off, unplug, and allow the unit to cool completely before cleaning. Wipe the exterior with a soft, moist cloth. The stainless steel liner and lid are machine washable. Do not use high-pressure water jets or steam cleaners. Never immerse the main body, power cord, or plug in water.
Safety precautions
- Do not operate on an inclined plane.
- Do not store or use in an appliance garage or under cupboards.
- Keep the appliance and cord out of reach of children under 8.
- Always ensure the unit is earthed.
- Do not overfill the liner.
- If the power cord is damaged, it must be replaced by Dualit or a qualified electrician.
Manufacturer information
Dualit
Practical help
Common problems
Inner liner floats up
The inner casting has been overfilled with water. Remove excess water immediately.
New smell during first use
This is normal and will dissipate after a few uses.
Unit not heating correctly
Check if the fuse is blown or if the mains electricity supply is functional.
Before use
- Remove all packaging materials.
- Wash the stainless steel liner and lid in warm soapy water.
- Ensure the unit is placed on a level surface with 200mm clearance.
- Check that the voltage on the rating label matches your mains supply.
- Register your product at www.dualit.com/register.
Specs in practice
- Temperature settings 1-8
- Adjustable heat levels to maintain food at the correct serving temperature.
Images and diagrams

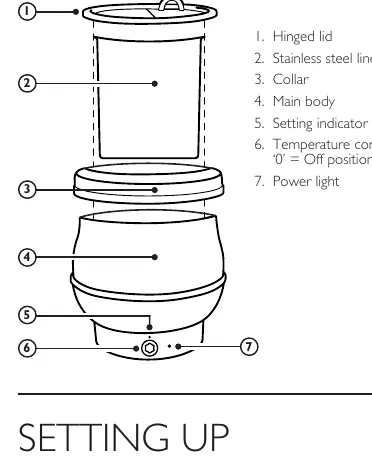

- The diagram shows the assembly order: Main body (4) -> Collar (3) -> Stainless steel liner (2) -> Hinged lid (1).
- The temperature control (6) is located at the base, with the power light (7) adjacent to it.
Model compatibility
- Intended for professional indoor use (restaurants, canteens, hospitals).
- Not intended for household use or continuous mass production of food.
