Duracell 1200W/3000W High Power Inverter User Guide

Quick guide from the manual

This guide provides essential information for the safe installation and operation of the Duracell 1200W and 3000W High Power Inverters. Always ensure connections are clean and tight to prevent overheating. The inverter requires proper ventilation, with at least 6 inches of space in front and behind the unit.

Installation

Proper wiring is critical for performance and safety. Use the thickest gauge wire possible to minimize voltage drop. For 1200W models, use 8-4 AWG wire; for 3000W models, use 2-4/0 AWG wire depending on length. Always install a UL-listed in-line fuse with the red input cable.

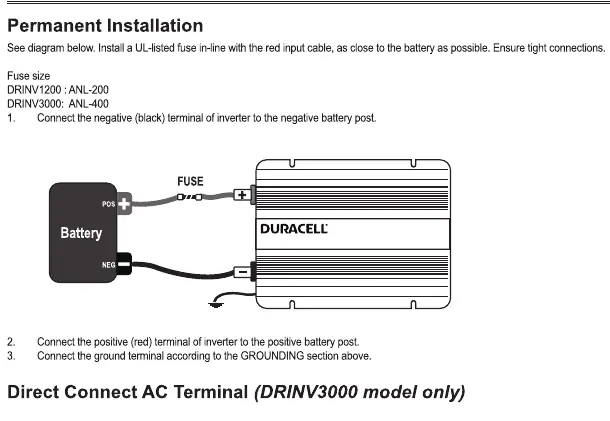

• Connect the negative (black) terminal to the battery negative post.
• Connect the positive (red) terminal to the battery positive post using an in-line fuse.
• Connect the ground terminal to the chassis or earth ground.

Using the Inverter

Ensure all connections are secure and DC power is available before turning the unit on. Connect your AC devices and switch the inverter to the ON position. The 3000W model features a digital display to monitor output power in Watts or Volts. Always turn the inverter OFF when not in use to prevent battery discharge.

Safety and Protection

The inverter includes built-in protection features that trigger an alarm and/or shut down the unit if conditions become unsafe:

• Under Voltage: Shuts down at 10.0V to protect the battery.
• Over Voltage: Shuts down if input exceeds 15V (1200W) or 16V (3000W).
• Over Load: Shuts down if continuous power exceeds rated capacity.
• Over Temperature: Shuts down if internal temperature is too high.
• Short Circuit: Shuts down immediately upon detection.

Troubleshooting

If the inverter fails to operate, check the following:

• No Power: Check battery voltage (may be below limit) and inspect fuses/circuit breakers.
• Loose Connections: Ensure all terminals are tight to prevent high resistance.
• Inverter turns off quickly: Check for overload; ensure total wattage of connected devices does not exceed the rated continuous power.

Technical Specifications

Both models provide Modified Sine Wave output at 115V/60Hz. The 1200W model offers 1200W continuous power (2400W surge), while the 3000W model offers 3000W continuous power (6000W surge). Operating temperature range is -5°C to 40°C.

Contacting Customer Support

For technical support in the U.S. and Canada, call 800-300-1857. Outside the U.S./Canada, call 805-437-7765. Written inquiries can be sent to Battery-Biz Inc., 1380 Flynn Road, Camarillo, CA 93012, USA.
