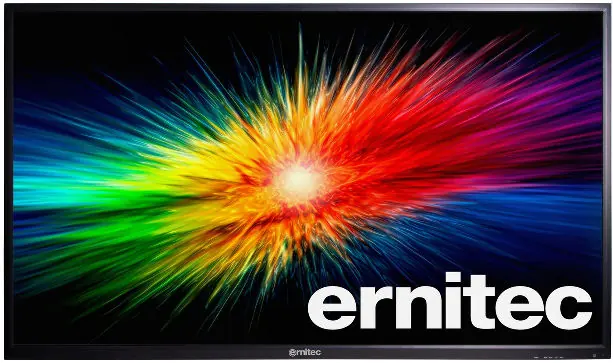

Ernitec 0070-24222-AC HDMI/VGA/BNC Monitor User Manual
Quick guide for the Ernitec 0070-24222-AC monitor, covering connection options, OSD menu setup, remote control functions, and troubleshooting common display issues.
Table of contents
Quick guide from the manual
This document provides essential instructions for operating the Ernitec HDMI/VGA/BNC monitor. It covers initial setup, connection of external equipment, OSD menu navigation, and basic troubleshooting steps to ensure optimal performance.
External equipment connections
The monitor supports multiple input sources. Ensure all cables are securely connected before powering on the device:
- Power: Connect the AC power cable to the monitor and a wall outlet.
- HDMI/VGA: Connect your PC or video source to the respective HDMI or VGA input ports.
- BNC Connections: Use BNC1 or BNC2 inputs for processor connections. A BNC output is available for daisy-chaining to another monitor.
- Audio: Use the Audio In port for sound input and Audio Out for external speakers.
Basic OSD setup
Use the remote control or front panel buttons to navigate the On-Screen Display (OSD) menu:
- Press MENU to access the main interface.
- Use the arrow buttons to select submenus (Picture, Sound, Option, Function).
- Adjust settings such as Aspect Ratio (Point to Point, Zoom, 4:3, Panorama), Color Temp (Warm, Cool, User), and Picture Mode.
- Press MENU again to exit and save changes.
Remote control key functions
- POWER: Toggle between standby and active mode.
- MUTE: Silence the audio output.
- INPUT: Cycle through available sources (VGA, BNC1, BNC2, HDMI, YPbPr).
- PICTURE: Quickly cycle through preset picture modes.
Maintenance
To keep the screen and cabinet in good condition:
- Power off and unplug the monitor before cleaning.
- Clean the screen with a soft cloth dampened with a mixture of lukewarm water and mild fabric softener; wipe until almost dry.
- Clean the cabinet with a soft, dry, lint-free cloth.
- If the monitor will be unused for a long period, unplug the power cord to protect against power surges.
Manufacturer information
Ernitec
Practical help
Common problems
Signal out of range
Adjust resolution, horizontal frequency, or vertical frequency; check signal cable connection.
Vertical bars or noise on background
Perform auto-configuration or adjust clock, phase, or H/V position.
No sound
Check volume levels, ensure the device is not muted, and verify audio cable connections.
Remote control not working
Check for obstructions, ensure batteries are installed with correct polarity, or replace batteries.
Before use
- Verify all cables (Power, HDMI/VGA/BNC) are securely connected.
- Ensure the power source matches the monitor requirements.
- Install one CR2032 3V battery in the remote control.
- Check that the monitor is placed on a stable surface with adequate ventilation.
- Ensure the input source on the monitor matches the connected device.
Specs in practice
- Aspect Ratio
- Determines how the image is scaled (e.g., 4:3, Panorama, or Point to Point for native resolution).
Images and diagrams
- The rear panel features a DC input, HDMI, VGA, BNC inputs/outputs, and audio ports.
- The remote control requires a CR2032 battery inserted into the back compartment.
- BNC connection setup involves connecting the processor output to the monitor BNC input.
Model compatibility
- VGA mode supports auto-configuration for signal optimization.
- Monitor supports plug and play via VESA DDC protocol.
- Remote control effective range is within 7 meters.
