ESAB Fabricator® 141i: 3-IN-1 Multi Process Welding System

Product Overview

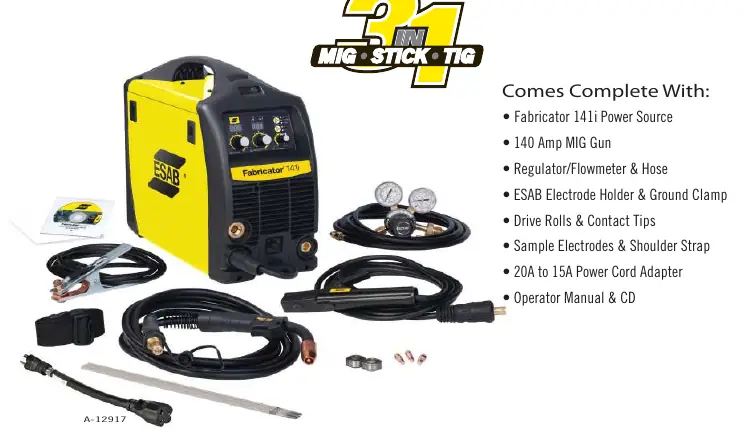

The ESAB Fabricator 141i is a self-contained, single-phase, 3-in-1 multi-process welding system. It is engineered to perform MIG (GMAW/FCAW), STICK (SMAW), and LIFT TIG (GTAW) welding processes. The unit features an integrated wire feed mechanism, digital voltage and amperage displays, and is fully compliant with industry standards for safety and performance.

Technical Specifications

• Input Voltage: 115V AC (95-140V range)
• Welding Current Range: 10-140A (depending on mode)
• Duty Cycle: Rated for professional use with specific amperage/voltage curves
• Cooling: Fan-cooled
• Weight: 32.2 lbs (14.6 kg)
• Dimensions: 16.14" x 8.27" x 17.72"

Safety Precautions

Electric Shock: Can be fatal. Ensure the unit is properly grounded and never touch live electrical parts. Work on high-voltage components must be performed by a qualified electrician.

Fumes and Gases: Welding fumes can be hazardous. Always ensure the workspace is effectively ventilated.

Arc Rays: Protect eyes and skin with appropriate welding screens, filter lenses, and protective clothing.

Fire Hazard: Sparks and spatter can ignite flammable materials. Keep the area clear of combustibles.

Installation and Setup

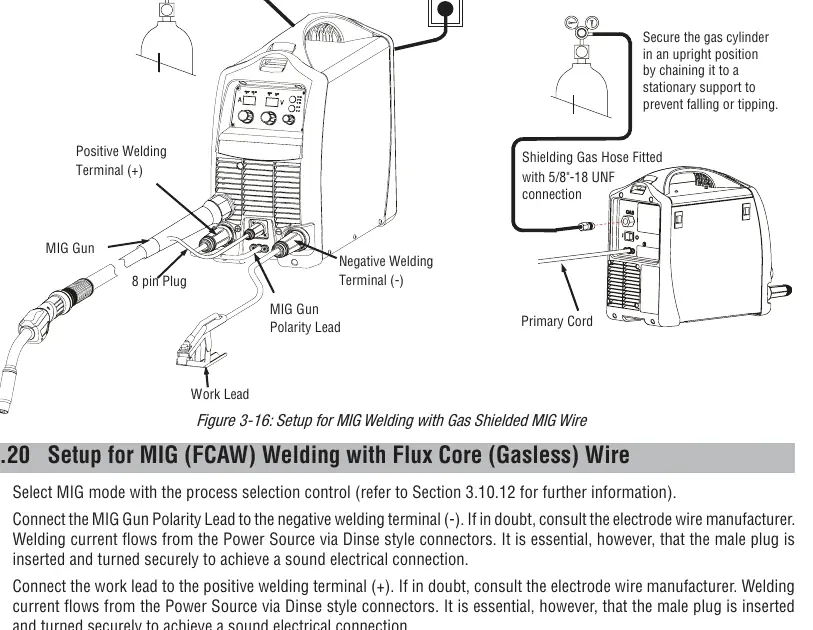

The system must be installed in an environment free from moisture, dust, and corrosive gases. Ensure a minimum of 12 inches (300mm) of clearance around the unit for proper ventilation. The Fabricator 141i requires a dedicated 115V AC circuit. Follow the specific setup procedures provided in the manual for each welding mode (MIG, STICK, or TIG), ensuring all cables and gas connections are secure and polarity is correctly configured for the chosen process.

Operation and Maintenance

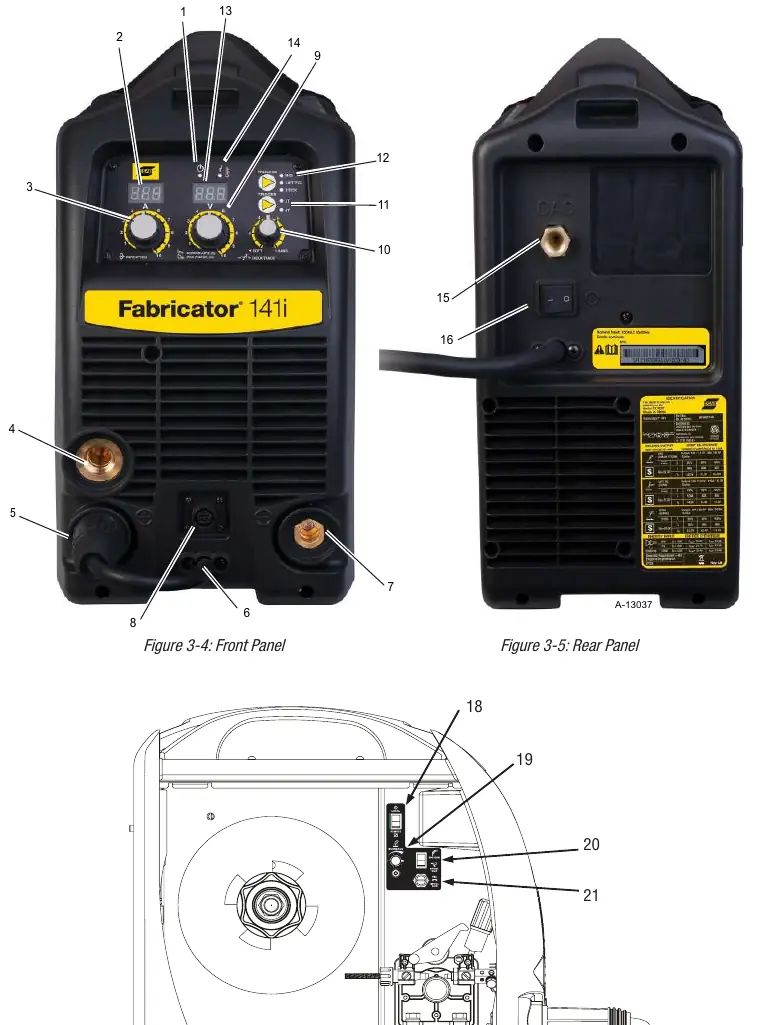

The front panel provides intuitive controls for wire speed, voltage, and process selection. The unit includes a self-resetting thermostat for thermal overload protection. Routine maintenance includes cleaning the feed rolls, inspecting welding cables for damage, and ensuring the wire feed mechanism is free of debris. Do not use compressed air to clean the internal components, as this may force metal particles into sensitive electrical parts.

Troubleshooting

The manual provides comprehensive tables for diagnosing issues related to porosity, inconsistent wire feed, and arc stability. If the fault indicator illuminates, allow the unit to cool while the power remains on. For persistent malfunctions, contact an authorized ESAB service provider.

Disposal

In accordance with European Directive 2002/96/EC, this electronic equipment must be disposed of at an approved recycling facility at the end of its service life.
