ESAB Caddy Tig 1500i and 2200i Welding Power Sources

Product Overview

The ESAB Caddy Tig 1500i and 2200i are professional-grade DC welding power sources designed for TIG and MMA welding applications. These units are engineered for reliability and performance, featuring advanced control panels and robust construction suitable for various industrial environments.

Safety Information

Warning: Welding and plasma cutting can be hazardous to the operator and others. Always follow local safety regulations and manufacturer guidelines. Key safety measures include:

• Electrical Safety: Ensure proper installation and grounding. Never touch live electrical components or electrodes with bare skin or wet clothing.
• Fumes and Gases: Use adequate ventilation or fume extraction to keep the breathing zone clear.
• Arc Radiation: Protect eyes and skin using appropriate welding helmets, filters, and protective clothing.
• Fire Prevention: Keep the work area free of flammable materials to prevent fires caused by sparks.
• Hearing Protection: Use ear protection to prevent damage from excessive noise.

Technical Specifications

The units operate on 230V, 50/60 Hz power. The Tig 1500i offers a range of 3A-150A for TIG and 4A-150A for MMA, while the Tig 2200i provides 3A-220A for TIG and 4A-170A for MMA. Both models feature an IP23 protection rating, making them suitable for indoor and outdoor use.

Installation and Setup

Installation should be performed by qualified personnel. Ensure the power source is placed in a location where cooling air inlets and outlets are not obstructed. Verify that the mains supply voltage matches the machine requirements and that appropriate fuses are installed. Proper grounding is mandatory.

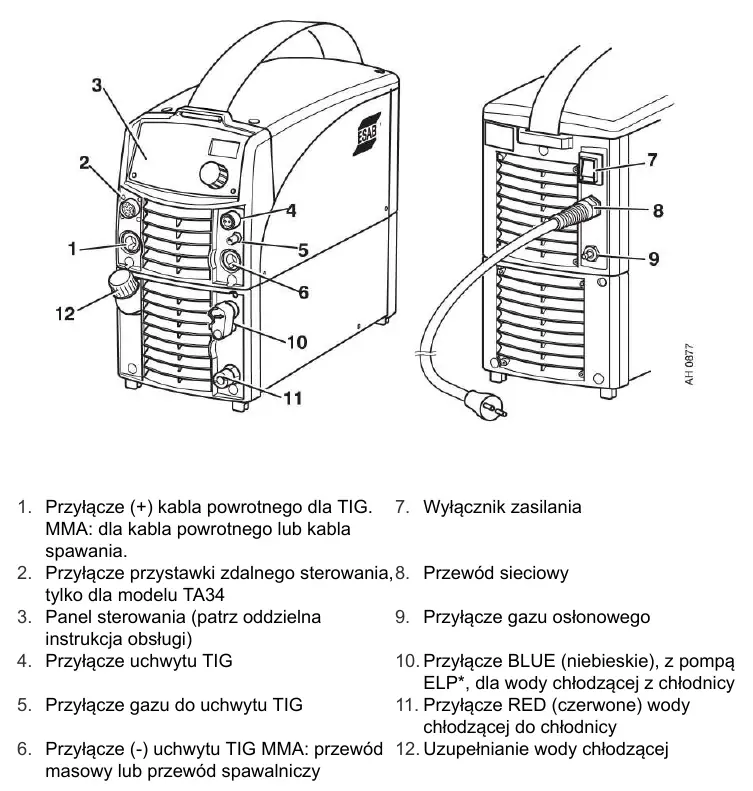

Operation

The machines are equipped with intuitive control panels (TA33 or TA34). For TIG welding, ensure you have the correct torch, shielding gas, regulator, tungsten electrodes, and filler metal. For MMA welding, connect the welding and return cables to the appropriate terminals based on electrode specifications. The units feature thermal overload protection; if the internal temperature becomes too high, the machine will stop, and a fault code will appear on the panel.

Maintenance

Regular maintenance is essential for safe and reliable operation. Periodically check that ventilation openings are free of dirt and debris. It is recommended to blow out the power source with dry, low-pressure compressed air at least once a year. Regularly clean and replace consumable parts on the welding torch to ensure optimal performance.

Troubleshooting

If issues arise, check the following before contacting service: ensure the power switch is on, verify all cable connections, check current settings, and confirm the gas flow. If the thermal switch trips frequently, ensure the machine is not overloaded and that it is clean.

Disposal

The equipment is constructed from steel, plastic, and non-ferrous metals. Dispose of the unit and any coolants in accordance with local environmental regulations. Electronic waste must be handled according to the WEEE directive.
