User Manual for Ferm Combitool 160W (CTM1017)
Quick guide for the Ferm Combitool 160W (CTM1017). Includes assembly instructions, safety guidelines, operation, maintenance, and technical specifications.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential information for the safe and efficient use of the Ferm Combitool 160W (CTM1017). Always read the enclosed safety warnings before use. Ensure the tool is unplugged before performing any assembly or maintenance tasks.
Machine Data
The Combitool 160W operates at 220-240V~, 50 Hz, with a power consumption of 160W. It features a variable no-load speed of 8,000-35,000/min and a spring chuck capacity of 3.2 + 2.4 mm.
Safety Instructions
General Power Tool Safety: Always keep the work area clean and well-lit. Do not operate in explosive atmospheres. Keep children and bystanders away. Use personal protective equipment, including eye protection and a dust mask.
Special Safety Instructions: Keep the cord away from moving parts. If the machine locks, switch it off immediately and unplug it. Never use the axle locking button while the machine is running. Ensure the spring chuck diameter matches the accessory axle diameter.
Assembly of Accessories
Before assembly, always remove the plug from the mains. Press and hold the axle locking button (2). Use the chuck spanner to loosen the chuck (1). Insert the accessory and tighten the chuck while holding the locking button. For the flexible shaft, lock the spindle by inserting the pin into the hole, loosen the chuck, insert the accessory, and tighten.
Mounting the Flexible Shaft and Stand
To mount the flexible shaft, unscrew the ring from the chuck and remove it. Place the inner shaft (1) into the chuck and fasten the flexible shaft ring (2) onto the Combitool. The stand can be mounted on a workbench (max 60 mm thickness). The height is adjustable by loosening the top tube and the suspension bracket knob.
Operation
Switch on the machine using the on/off switch (A). Regulate the speed using the adjusting wheel (B). Do not put the machine down while the motor is running. Avoid placing the machine on dusty surfaces to prevent dust from entering the mechanism.
Maintenance
Keep ventilation slots clean to prevent engine overheating. Regularly clean the housing with a soft cloth. Lubricate the flexible shaft regularly to prevent excessive heat generation. If a fault occurs, contact the service address on the warranty card.
Environment
Dispose of electrical or electronic devices at designated recycling stations. Do not dispose of power tools in domestic waste.
Practical help
Common problems
Motor burning out
Avoid high loads at low speeds.
Excessive vibration
Ensure accessories are inserted as far as possible into the collet to minimize run-out and unbalance.
Dust entering the mechanism
Do not place the machine on dusty surfaces while the motor is running.
Before use
- Check for transport damage.
- Ensure all parts are present.
- Verify that the power supply voltage matches the rating plate.
- Wear ear and eye protection.
- Wear a dust mask.
- Ensure the spring chuck diameter matches the accessory axle diameter.
Specs in practice
- Power consumption
- 160 W
- No load speed
- 8,000-35,000/min
- Capacity of spring chuck
- 3.2 + 2.4 mm
Images and diagrams
- Fig. 1: Shows the tool, axle locking button (2), chuck (1), on/off switch (A), and speed adjusting wheel (B).

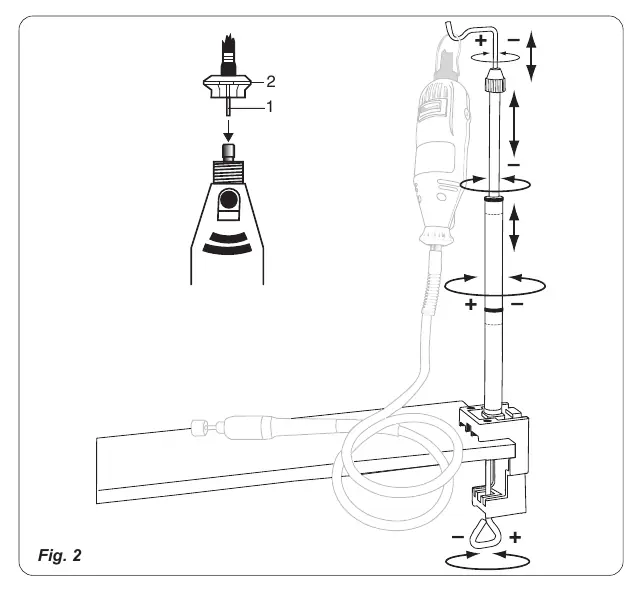

- Fig. 2: Illustrates the assembly of the flexible shaft and the stand.
- Fig. 3-6: Show various accessories and their respective speed settings.
Model compatibility
- Spring chuck capacity is 3.2 + 2.4 mm.
- Always check that the maximum rpm of the accessory is suitable for the maximum speed of the Combitool.
