FLEX GBL 790 18-EC Blower Parts Diagram

Product Overview

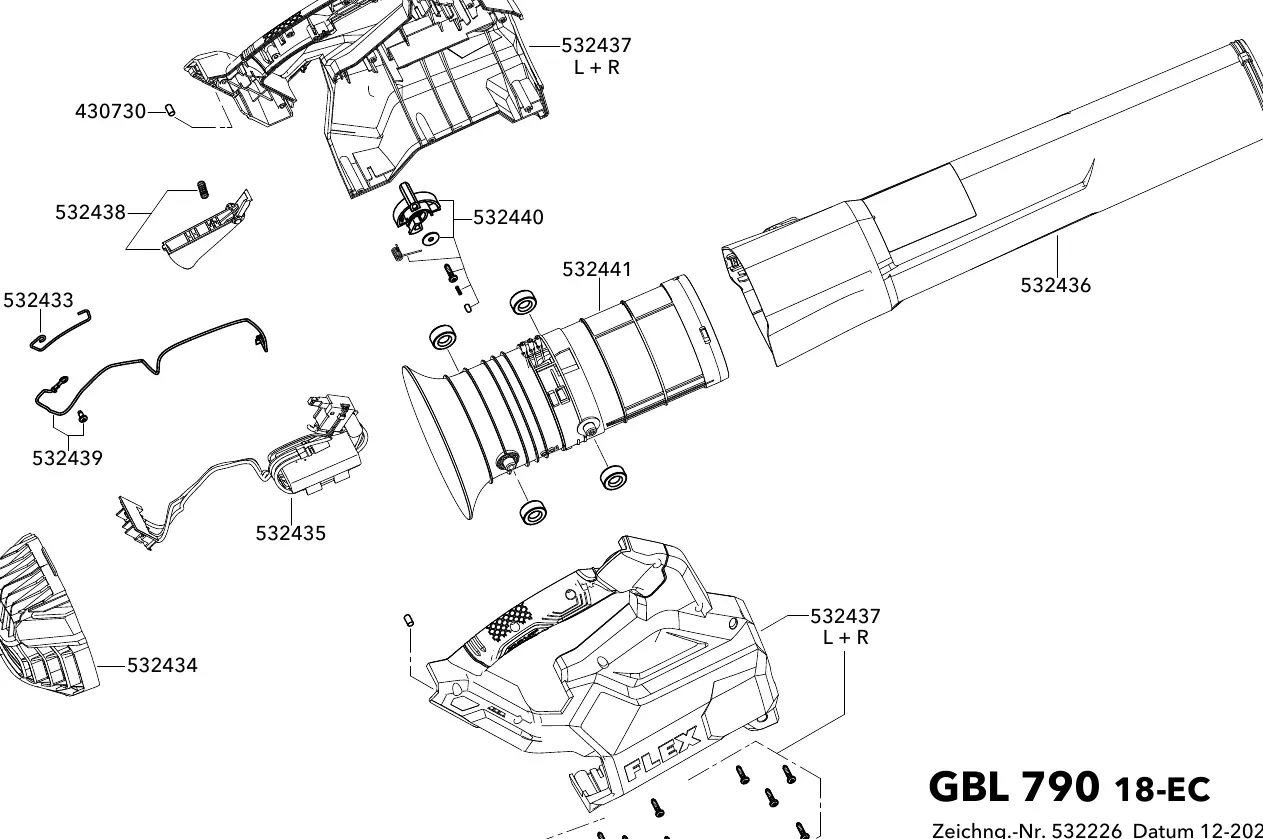

The FLEX GBL 790 18-EC is a high-performance cordless blower designed for efficient debris removal. This document provides the official exploded view and parts identification for the unit, facilitating maintenance and component replacement. The design features a modular housing system, an integrated motor assembly, and a high-velocity blower tube.

Key Components

The assembly consists of several critical parts that ensure the blower operates at peak efficiency. Key components identified in the technical diagram include:

• Housing Assembly (532437 L+R): The main outer shell protecting internal electronics and the motor.
• Blower Tube (532436): The primary nozzle assembly for directing airflow.
• Motor and Fan Housing (532441): The core unit responsible for generating air pressure.
• Control Module (532435): The electronic interface managing power delivery from the battery.
• Trigger and Switch Assembly (532438): The user-operated control mechanism for variable speed and activation.
• Air Intake Guard (532434): Protective mesh to prevent debris from entering the fan assembly.

Maintenance and Repair

To ensure the longevity of the GBL 790 18-EC, regular inspection of the housing and intake guard is recommended. If the unit experiences a loss of performance, check the air intake for blockages. When performing repairs, ensure the battery is disconnected. Use only genuine replacement parts as identified by the drawing number 532226 to maintain safety and performance standards. The housing is secured by a series of screws (430730) which should be tightened evenly to prevent vibration or air leaks.

Safety and Disposal

Always operate the blower in accordance with local safety regulations. Keep the intake area clear of clothing and loose debris. When the tool reaches the end of its service life, it must be disposed of according to local environmental regulations regarding electronic waste and lithium-ion battery recycling. Do not dispose of the unit in household waste.
