FLEX SHE 16 18-EC Parts Diagram

Official parts breakdown and assembly diagram for the FLEX SHE 16 18-EC cordless tool, providing detailed component identification for maintenance and repair.

Table of contents

Product Overview

The FLEX SHE 16 18-EC is a high-performance cordless power tool engineered for precision and durability. This document provides the official exploded view and parts identification for the unit, facilitating accurate maintenance, component replacement, and repair procedures. Understanding the assembly structure is essential for ensuring the tool remains in optimal working condition.

Component Identification

The assembly consists of several critical modules that work in tandem to deliver power and control. Key components identified in the technical diagram include:

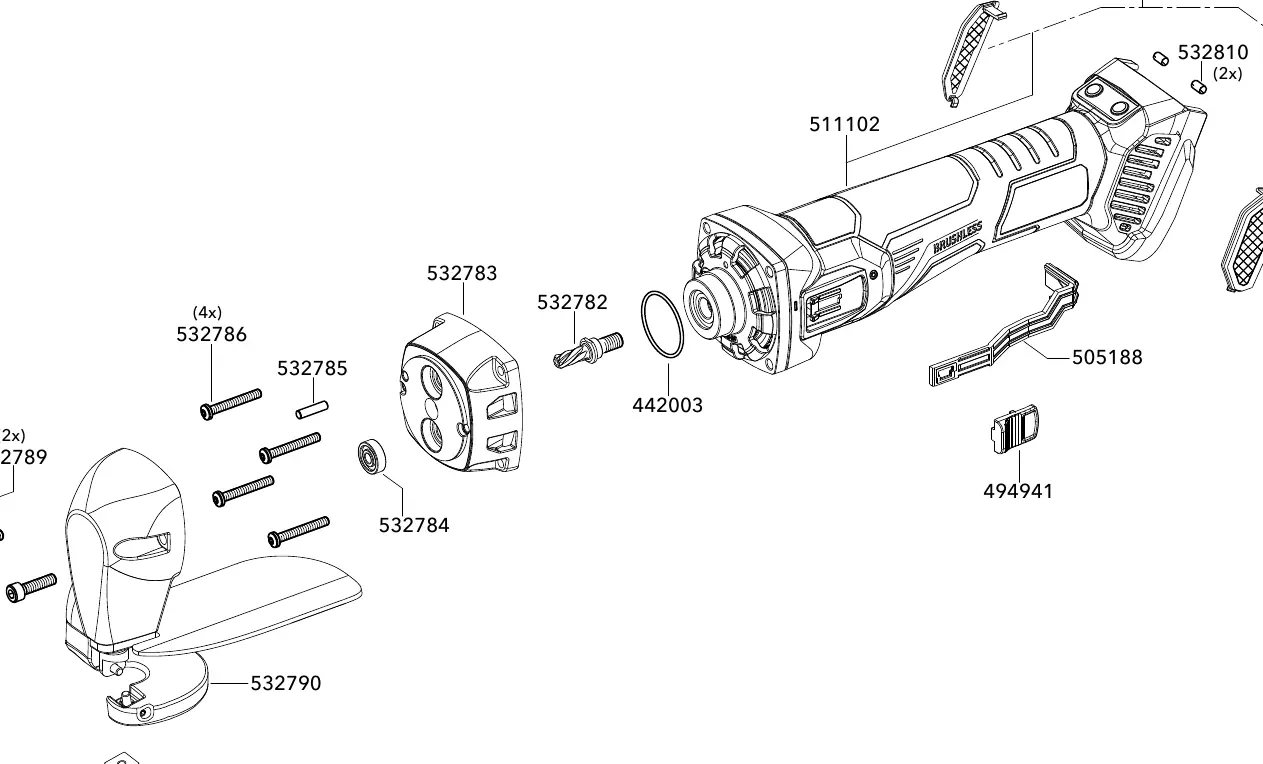

Exploded view of the FLEX SHE 16 18-EC components
Exploded view of the FLEX SHE 16 18-EC components
  • Main Housing (511102): The core structural unit housing the brushless motor and electronic control systems.
  • Gearbox and Drive Assembly: Includes the drive spindle (532782), O-ring (442003), and the front gear housing (532783) which supports the operational head.
  • Protective Guard (532790): The primary safety component designed to shield the user during operation, secured by specialized fasteners (532789).
  • Fastening Hardware: The assembly utilizes specific screw sets (532786) and pins (532785) to maintain structural integrity under load.
  • Ergonomic Controls: Includes the switch lever (505188) and locking mechanism (494941) for safe and intuitive operation.
  • Air Intake Protection: Dust filters (450723) and associated mounting hardware (532810) to protect internal components from debris.

Maintenance and Safety

To ensure the longevity of the FLEX SHE 16 18-EC, regular inspection of the housing and protective elements is recommended. Always ensure the tool is powered down and the battery is removed before performing any maintenance or attempting to access internal components. If the protective guard or air intake filters show signs of wear or damage, they must be replaced immediately using genuine parts to maintain safety standards. Do not attempt to modify the internal drive assembly, as this may compromise the brushless motor performance and void the warranty.

Troubleshooting and Disposal

If the tool exhibits unusual vibrations or loss of power, inspect the drive spindle and gear housing for debris or mechanical wear. Ensure all fasteners are tightened to the specified torque. When the tool reaches the end of its service life, it should be disposed of in accordance with local environmental regulations regarding electronic waste and lithium-ion battery recycling. Do not discard the unit in household waste.
