FMS 1500mm Cessna 182 PNP Instruction Manual

Product Overview

The FMS 1500mm Cessna 182 is a high-performance, scale RC aircraft designed for stability and realism. It features a durable EPO foam construction, functional flaps, high-intensity LED navigation lights, and a tricycle shock-absorbing landing gear system. The PNP (Plug-N-Play) configuration includes a powerful 3541-KV840 brushless motor, a 40A brushless ESC, and seven 9g digital servos for precise control.

Safety Precautions

Important: This is a sophisticated hobby product, not a toy. It is not intended for children under 14 years of age. Always operate in an open area away from people, traffic, and buildings. Never operate with low transmitter batteries. Moisture can damage electronics; avoid water exposure. Always follow manufacturer instructions for Li-Po battery handling, charging, and storage to prevent fire or injury.

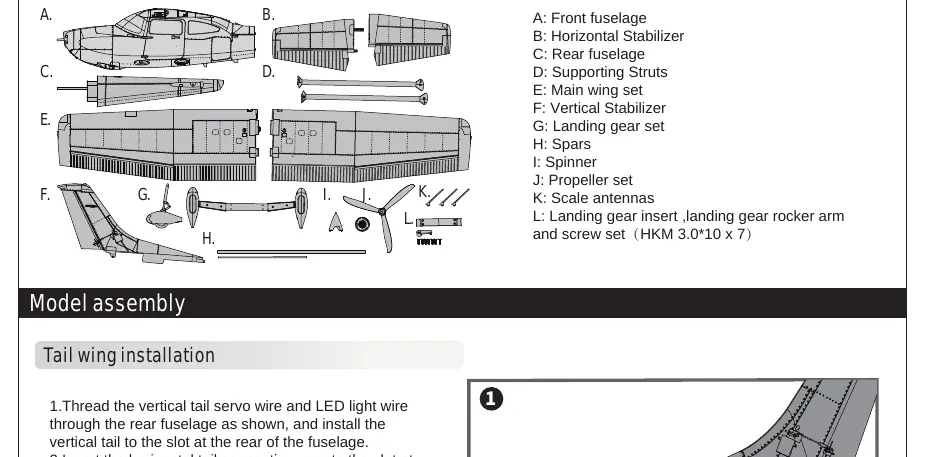

Assembly and Setup

The model utilizes a convenient snapper assembly structure with screws for secure installation. Key assembly steps include:

• Tail Wing: Thread servo and LED wires through the fuselage, install the vertical stabilizer, and secure the horizontal tail using the connecting spar.
• Fuselage: Connect servo wires and secure the front and rear fuselage sections with provided screws.
• Landing Gear: Install the main landing gear set into the fuselage slots and secure the front landing gear to the servo rocker arm.
• Main Wing: Insert the connecting spar and lock the wings into place until a click is heard.

Ensure the Center of Gravity (CG) is set between 55-65mm from the leading edge of the main wing with the battery installed.

ESC Programming and Operation

The included brushless ESC features a safe start function and is fully programmable. Users can calibrate the throttle range and adjust settings such as SMR function, brake type, motor timing, and low-voltage cutoff thresholds. Always remove the propeller when working on the model with the power source connected.

Maintenance and Troubleshooting

Regularly check that all screws are tightened and the spinner is secure. Repairs to the foam should be made using foam-safe adhesives. If the aircraft fails to respond or exhibits abnormal behavior, consult the troubleshooting guide to check ESC arming, battery charge, connection integrity, and control surface linkages.
