Focal Utopia 6WM Car Audio Woofer Owner's Manual
Comprehensive technical specifications and performance data for the Focal Utopia 6WM 6.5-inch car audio woofer, including frequency response and mechanical dimensions.
Table of contents
Product Overview
The Focal Utopia 6WM is a high-performance 6.5-inch woofer designed for demanding car audio enthusiasts. As part of the prestigious Utopia line, this speaker driver embodies Focal's commitment to innovation, precision engineering, and pure sound reproduction. Built with sophisticated materials and advanced manufacturing processes, the 6WM is engineered to deliver exceptional harmonic richness and faithful audio performance in automotive environments.
Technical Specifications
The 6WM woofer is built to handle significant power while maintaining clarity. It features a nominal power handling of 100W and a maximum power handling of 200W. The driver utilizes a high-quality W-cone and a durable Butyl surround, ensuring longevity and consistent performance. With a nominal impedance of 4 Ohms and a sensitivity of 91.5dB (2.83V/1m), it is designed for integration into high-end audio systems.
Mechanical Design and Performance
The mechanical construction of the 6WM includes an 80mm voice coil diameter wound on a glass fiber former, utilizing CCAW wire for optimal efficiency. The magnet assembly measures 75x4mm, contributing to a net weight of 1,050g. The design is optimized for precise control, as evidenced by the detailed mechanical drawings provided in the documentation, which specify mounting dimensions in millimeters to assist with professional installation.
Performance Parameters
The 6WM exhibits a frequency response tailored for high-fidelity sound, with a resonant frequency (Fs) of 70Hz. Key Thiele/Small parameters include an Rdc of 2.7 Ohms, an Mms of 14.5g, and a Qts of 0.79. These parameters indicate a driver capable of controlled, accurate bass and mid-bass reproduction. The excursion capability (Xmax) of 5.5mm allows for significant output without compromising sound quality. Users should refer to the provided frequency response charts to understand the driver's behavior across the spectrum, noting the performance at both 0 and 30-degree off-axis angles.
Quality and Heritage
Focal products are designed and manufactured in France, adhering to strict quality standards. The Utopia series represents the pinnacle of the brand's expertise, combining aesthetic elegance with technical excellence. By mastering every stage of the manufacturing process, Focal ensures that each 6WM woofer meets the rigorous demands of audiophiles seeking the ultimate listening experience in their vehicles.
Manufacturer information
Focal
Practical help
Before use
- Verify the mounting depth and diameter requirements using the mechanical drawing.
- Ensure the amplifier is compatible with a 4 Ohm nominal impedance load.
- Check that the installation location provides adequate structural support for the 1,050g weight.
- Confirm that the power output of your amplifier matches the 100W nominal power rating.
- Ensure proper wiring polarity is maintained during connection.
Specs in practice
- Nominal Power
- The continuous power handling capacity of the speaker under normal operating conditions.
- Fs (Resonant Frequency)
- The frequency at which the speaker cone naturally vibrates, indicating the lower limit of its effective range.
Images and diagrams

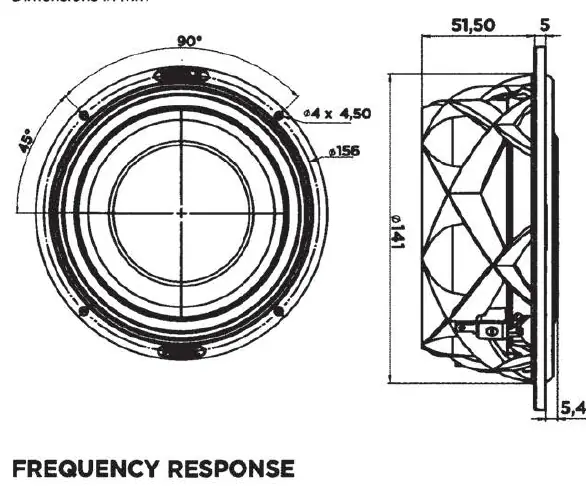

- The mechanical drawing provides precise dimensions in millimeters for mounting and clearance.
- The frequency response graph shows the SPL output across the frequency spectrum.
- The impedance curve illustrates how the speaker's electrical resistance changes with frequency.
Model compatibility
- Designed for use in high-end car audio systems.
- Requires an amplifier capable of driving a 4 Ohm load.
