This document serves as a submittal and technical reference for the Fujitsu 12KTAP1 air conditioning system, consisting of the ASUH12KTAS indoor unit and AOUH12KTAP1 outdoor unit. It provides essential specifications, dimensions, and feature highlights for installation and planning purposes.
System features
The system utilizes R-32 refrigerant and an inverter-driven compressor for energy efficiency. Key features include:
- Indoor Unit: Wall-mounted design with ProCore corrosion-resistant coils, whisper-quiet operation (as low as 23dB), and built-in Wi-Fi for Airstage Mobile App control. Includes occupancy sensors, dual-action filtration (Apple-Catechin and Ion Deodorizing), and compatibility with BACnet/Modbus protocols.
- Outdoor Unit: Designed for extreme cold climates with heating performance down to -22°F (-30°C). Features a base pan heater and Hydro Fin-coated heat exchanger for durability.
Technical specifications
The system operates on 208/230V, 60Hz power. Cooling capacity is rated at 12,000 Btu/h, and heating capacity is rated at 15,300 Btu/h. The outdoor unit supports line sets up to 66ft (20m) with a maximum height difference of 49ft (15m).
Installation and dimensions
Detailed dimensional drawings are provided for both the indoor and outdoor units to assist with mounting and clearance requirements. The indoor unit features specific pipe inlet locations, while the outdoor unit includes mounting bolt pitch specifications and drain port locations.
Accessories
The system supports a wide range of optional accessories, including various wired and wireless controllers (KAGAMI touch panels, simple remotes), Wi-Fi adapters, and third-party interface gateways for BACnet, Modbus, and 24V thermostat integration.
Manufacturer information
Fujitsu General Limited
Practical help
Common problems
Measured sound levels are based on anechoic chamber conditions; actual installation environments may result in higher noise levels.
Many accessories require the UTY-TWRXZ4 communication kit for proper connection to the indoor unit.
Before use
- Verify power supply is 208/230V, 60Hz.
- Ensure installation location allows for required line set lengths (max 66ft).
- Confirm compatibility of desired accessories with the indoor unit model.
- Register the product within 60 days of installation to qualify for extended compressor and parts warranties.
Specs in practice
- Operating Range (Heating)
- The system is capable of heating in temperatures as low as -22°F (-30°C).
- MCA (Minimum Circuit Ampacity)
- 15.7A; used to determine the minimum wire size for the electrical circuit.
Images and diagrams

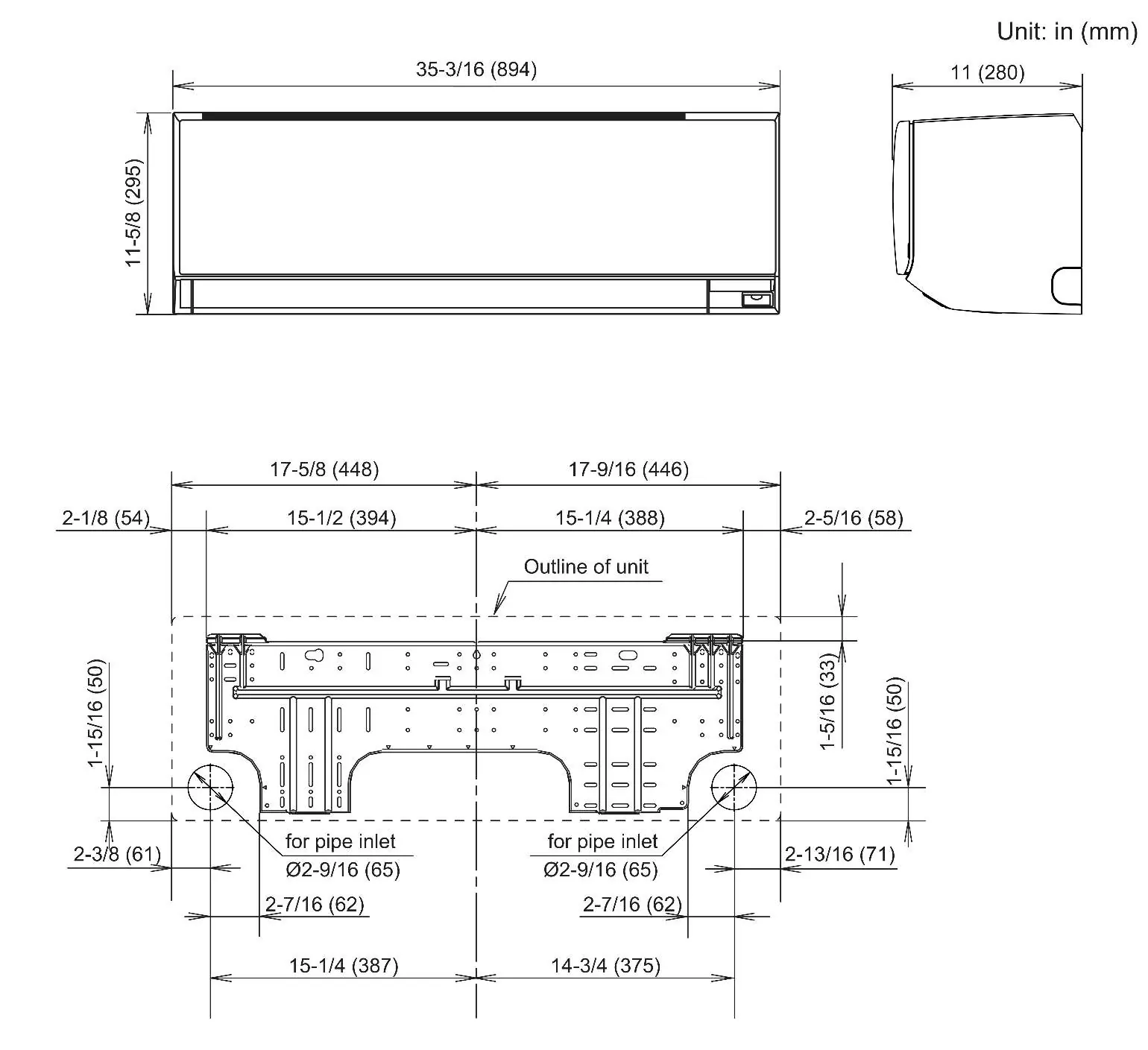

- Indoor unit dimensions show pipe inlet locations for flexible installation.

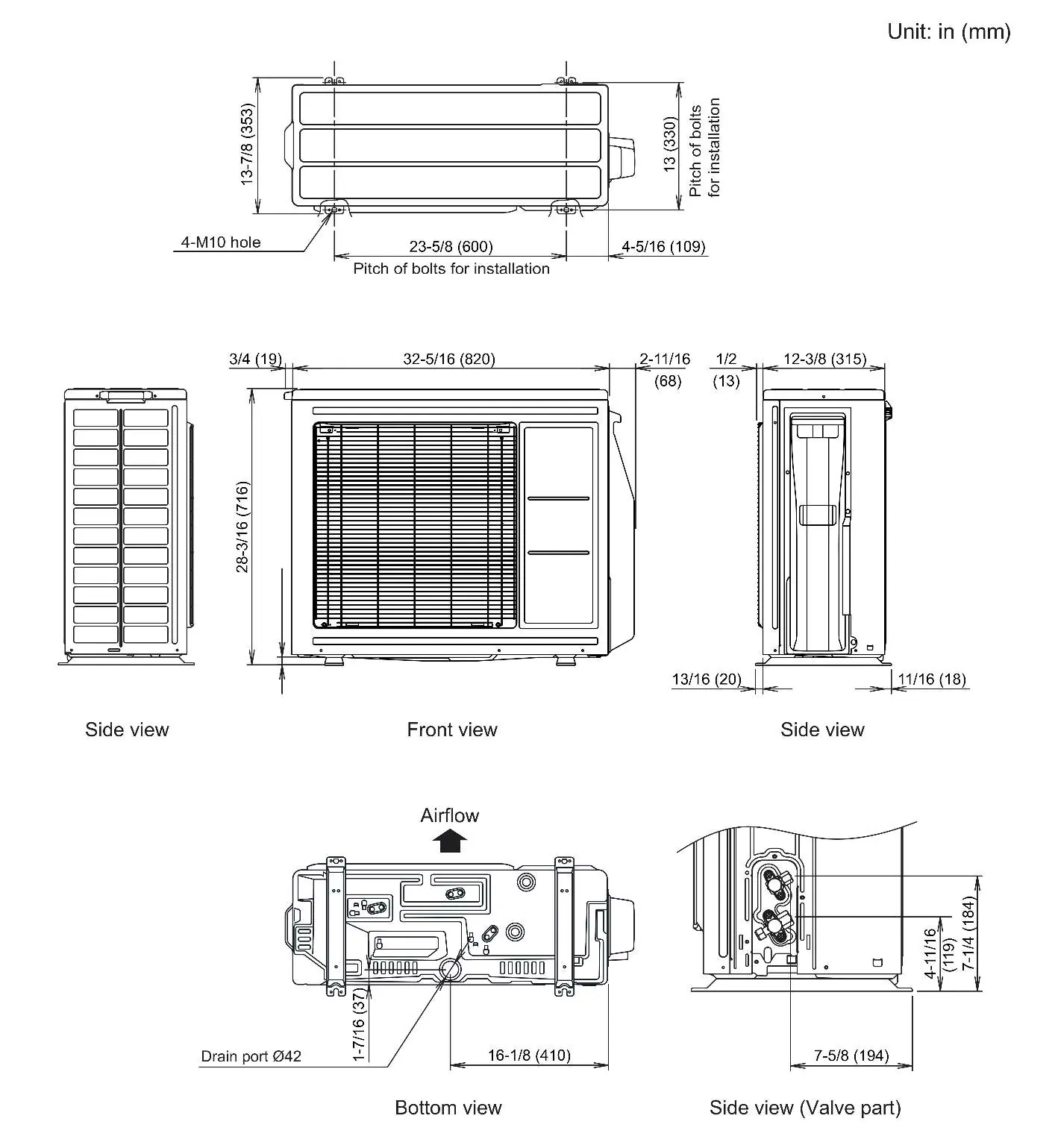

- Outdoor unit diagrams indicate mounting bolt pitch and drain port location for proper base installation.
Model compatibility
- System is compatible with BACnet and Modbus protocols for building management integration.
- Certain controllers (e.g., UTY-TTRXZ1) cannot be used simultaneously with other control types.
