Fujitsu 12KTAP1 Air Conditioner Specification Sheet
Technical specifications, features, and installation dimensions for the Fujitsu 12KTAP1 air conditioning system. Includes details on indoor and outdoor units, electrical requirements, and compatible accessories.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document provides the technical specifications, features, and installation dimensions for the Fujitsu 12KTAP1 air conditioning system. It is intended for planning and installation reference. The system consists of the ASUH12KTAS indoor unit and the AOUH12KTAP1 outdoor unit.
Key Features
Indoor Unit:
- Compact wall-mounted design with ProCore high corrosion-resistant copper coils.
- Whisper-quiet operation with sound levels as low as 23dB.
- Multiple fan speeds and special operation modes including Economy, Powerful, and Minimum Heat.
- Built-in Wi-Fi connectivity for remote monitoring via the Airstage Mobile App.
- Occupancy sensor for enhanced energy savings.
- Dual-action filtration: Apple-Catechin Filter and Ion Deodorizing Filter.
- Compatible with BACnet and Modbus protocols for building management integration.

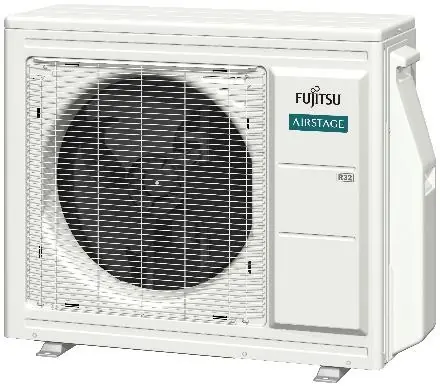

Outdoor Unit:
- Low GWP R-32 refrigerant system.
- INVERTER-driven compressor for superior performance and energy efficiency.
- Extreme performance with reliable heating down to -22°F (-30°C).
- Base pan heater designed for extreme cold climate regions.
- Hydro Fin-coated heat exchanger for improved corrosion resistance.
Technical Specifications
Performance:
- Cooling Capacity: 12,000 Btu/h (Rated).
- Heating Capacity: 15,300 Btu/h (Rated).
- SEER2: 31.5; HSPF2: 13.7.
- Outdoor Operation Range: 14 to 122°F (Cooling); -22 to 75°F (Heating).
Electrical:
- Power Supply: 208/230V, 60Hz.
- Maximum Operating Current: 7.4A (Cooling), 12.9A (Heating).
- Minimum Circuit Ampacity (MCA): 15.7A.
- Maximum Circuit Breaker: 20A.
Dimensions
The system dimensions are critical for installation planning. Refer to the provided diagrams for precise measurements of the indoor unit pipe inlets and the outdoor unit bolt pitch and valve locations.
Compatible Accessories
The 12KTAP1 system supports various optional accessories, including:
- Wired and touch panel remote controllers (e.g., UTY-RVRU, UTY-RNRUZ5).
- Wi-Fi adapters and cloud control interfaces (e.g., FJ-AC-WIFI-1).
- Modbus and BACnet converters.
- External input/output PCBs and thermostat interfaces.
Note: Some accessories require the UTY-TWRXZ4 communication kit for connection to the indoor unit.
Manufacturer information
Fujitsu General Limited
Practical help
Common problems
Sound levels higher than expected
Measured sound levels are based on anechoic chamber conditions; actual installation environments may result in higher noise levels.
Operation outside rated temperature range
The system continues to operate below the rated outdoor temperature range, but capacity is not tested outside of the rated temperature range.
Before use
- Verify the power supply is 208/230V 60Hz.
- Ensure the installation location meets the clearance requirements for the indoor and outdoor units.
- Confirm the refrigerant type is R-32.
- Check that the indoor unit (ASUH12KTAS) and outdoor unit (AOUH12KTAP1) are correctly paired.
- Ensure the circuit breaker is rated for 20A.
Specs in practice
- Rated Heating Capacity
- The system provides 15,300 Btu/h heating capacity for the 12,000 Btu/h system.
Images and diagrams
- Indoor unit dimensions show pipe inlet locations and mounting outlines.
- Outdoor unit dimensions include bolt pitch for installation and valve part locations.
Model compatibility
- Requires specific communication kits (UTY-TWRXZ4) for certain accessories.
- Airstage Cloud connection requires a compatible Airstage Mobile adapter connected to the indoor unit.
- Some controllers may not be used simultaneously with other control types.
