Quick answers from the manual

Quick answer

To use the Gastroback Mini Gelateria, prepare your ingredients, install the mixing blade and lid, select the desired mode (Ice Cream, Yogurt, Mixing, or Cooling) on the touch screen, set the time, and press Start. The device will beep when finished. p. 17, 18, 19

Key actions

Cleaning the appliance p. 19
Troubleshooting container removal p. 20

First start

Let the appliance stand upright for 24 hours before first use. p. 16

Problems and fixes

Difficult to remove container

Wait 3-8 minutes for ice to melt slightly.

p. 20

Maintenance and reset

Clean after each use. p. 19

Technical specifications

Parameter	Value	Meaning	Pages
Voltage	220-240 V ~	Operating voltage	p. 22
Power	100 W	Power consumption	p. 22
Capacity	1 L	Maximum container capacity	p. 22

Where to find it in the PDF

Parts Diagram p. 7, 17
Assembly Instructions p. 8, 18

Table of contents

Quick Guide

The Gastroback Mini Gelateria 2-in-1 is designed for making ice cream, sorbet, frozen yogurt, and yogurt. Before first use, clean all parts thoroughly. The device requires a 24-hour settling period after being moved or before the first connection to the power supply to allow the refrigerant to settle. The maximum ingredient capacity per preparation is 0.6 liters to prevent overflow.

Safety Warnings

Refrigerant: Contains flammable refrigerant (R600a). Keep away from fire and heat sources.
Electrical Safety: Do not immerse the appliance in water. Ensure the power cord is not damaged. Do not operate with wet hands.
Usage: For indoor, private use only. Do not use mechanical devices to accelerate defrosting.
Ventilation: Keep ventilation openings clear. Maintain at least 8 cm of space around the appliance.
Children: Children aged 8 and above may use the device under supervision.

The Appliance

Key components include the motor unit, transparent lid, mixing blade, stainless steel ice cream container, and the touch screen display. The device features a cooling mode to maintain texture after preparation.

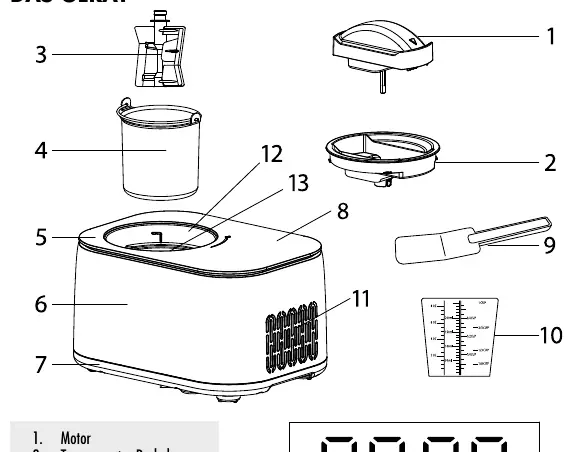

Parts diagram of the Gastroback Mini Gelateria 2-in-1.

Operation

Preparation: Pour well-mixed ingredients into the stainless steel container. Do not exceed 0.6 liters.

Assembly: Insert the container into the refrigeration bowl. Align the mixing blade, lid, and motor components. Lock by rotating clockwise until the triangle mark aligns with the 'LOCK' position.

Modes:

Mixing: For simple mixing tasks.
Cooling: Manually adjustable cooling mode.
Ice Cream / Frozen Yogurt / Sorbet: Automatic preparation. The device beeps 10 times when finished and enters cooling mode.
Yogurt: Adjustable time between 4 and 24 hours.

Cleaning and Maintenance

Unplug the device and let it cool before cleaning.
The stainless steel container is dishwasher safe.
Clean the motor unit, lid, and mixing blade with a soft sponge, warm water, and mild detergent.
Do not immerse the main housing in water.

Troubleshooting

Container stuck: Wait 3-8 minutes for the ice to melt slightly before removing.
Lid won't close: Ensure the mixing blade is correctly aligned with the convex hull at the bottom.
Blade scratched: Replace the mixing blade if damaged.

Practical help

Common problems

Stainless steel container is difficult to remove after use.

Wait 3-8 minutes for the ice to melt slightly before attempting to remove the container.

Lid does not close properly.

Ensure the mixing blade is correctly aligned with the convex hull at the bottom of the container.

Mixing blade is scratched or jammed.

The blade may be deformed due to improper use; replace with a new part (Art.-Nr. 91730).

Before use

Clean all parts thoroughly as described in the cleaning section.
Let the appliance stand upright for at least 24 hours before the first connection to allow the refrigerant to settle.
Ensure the power supply voltage matches the rating label.
Place the appliance on an even, stable, and dry surface.
Ensure at least 8 cm of clearance on all sides for ventilation.

Specs in practice

Climate Class: Class N (temperate), suitable for ambient temperatures between 16°C and 32°C.

Images and diagrams

The parts diagram identifies the motor, transparent lid, mixing blade, stainless steel container, and touch screen display.
The assembly diagram shows the alignment of the mixing blade and the locking mechanism (triangle mark to 'LOCK').

Model compatibility

Only use original parts and accessories.
Do not use the device with external timers or switching devices.
