Globo Lighting 16047DC Ceiling Light

Product Overview

The Globo Lighting 16047DC is a decorative ceiling light fixture designed for indoor use. It features a modern design that requires assembly of multiple components to achieve its final aesthetic form.

Technical Specifications

• Model: 16047DC
• Light Source: 10x MAX 7W G9 LED
• Voltage: 220-240V~ 50/60Hz
• Components: Includes 39 pieces of rods and 39 pieces of decorative elements.

Safety Instructions

Before beginning any installation work, ensure that the power supply is switched off at the main circuit breaker. Electrical installation should only be performed by qualified personnel. Ensure all connections are secure and that the fixture is properly grounded if required by local regulations. Use only the specified LED bulbs to prevent overheating and damage to the fixture.

Installation and Assembly

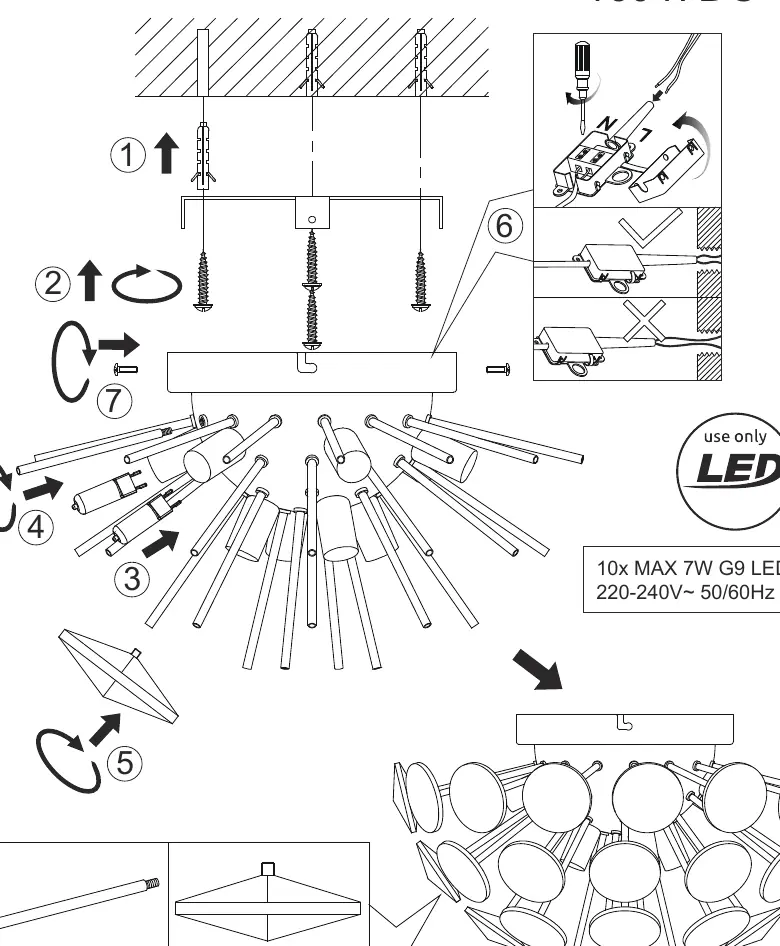

The installation process involves mounting the base plate to the ceiling using the provided screws and wall plugs. Once the base is secure, connect the electrical wires to the terminal block, ensuring that the Neutral (N) and Live (L) wires are correctly matched. After the electrical connection is established, attach the main housing to the base plate. Finally, assemble the decorative rods and elements onto the fixture body as indicated in the assembly sequence.

Maintenance and Care

To clean the fixture, ensure the power is turned off and the unit has cooled down completely. Use a soft, dry cloth to wipe the surfaces. Do not use abrasive cleaners or chemicals that may damage the finish. Periodically check that all connections remain tight and that the light source is functioning correctly. If a bulb fails, replace it only with a G9 LED bulb that does not exceed the maximum wattage rating of 7W.

Troubleshooting and Disposal

If the light fails to illuminate, check the circuit breaker and ensure the bulbs are properly seated in their sockets. If the issue persists, consult a professional electrician. When the product reaches the end of its service life, dispose of it according to local environmental regulations for electronic waste. Do not discard the fixture with regular household trash.
