Globo Lighting 16061W / 16061S LED Pendant Light User Guide

Comprehensive user guide for the Globo Lighting 16061W and 16061S pendant lights, covering installation, battery charging, touch control operation, and safety information.

Table of contents

Product Overview

The Globo Lighting 16061W and 16061S are versatile LED pendant lights designed for indoor use. These fixtures feature a modern design with integrated LED technology and offer flexible power options, including a rechargeable battery for portable use or direct connection.

Technical Specifications

  • Light Source: Integrated LED, non-replaceable.
  • Power: Max 4.5W, 3.7V.
  • Battery: 1x IMR 18650-1800 3.7V 1800mAh rechargeable battery.
  • Charging: USB-C interface, compatible with 5V USB chargers.
  • Charging Time: Approximately 3-5 hours.

Installation and Setup

The fixture supports two primary installation options:

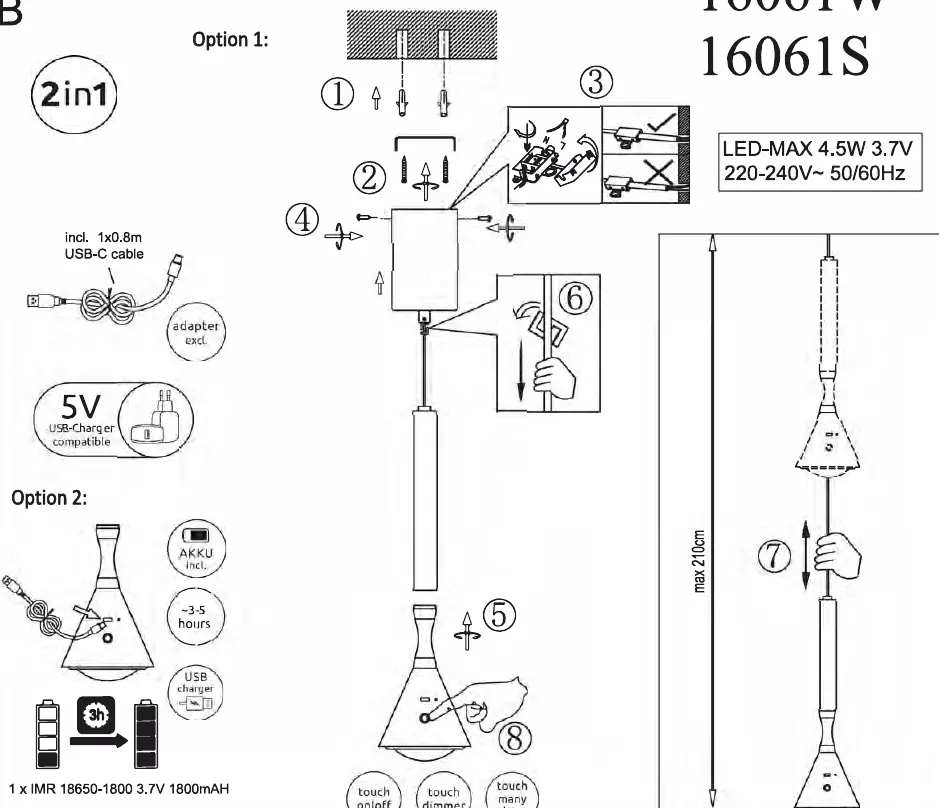

Installation and charging options
Installation and charging options
  • Option 1 (Fixed): Mount the base to the ceiling using the provided hardware. Ensure the power supply is switched off at the mains before beginning installation. Connect the wiring according to local electrical safety standards.
  • Option 2 (Portable): Utilize the integrated rechargeable battery. Ensure the battery is fully charged using the provided USB-C cable before initial use.

Operation

The light is operated via a touch-sensitive interface located on the fixture:

  • Touch On/Off: A short press toggles the light on and off.
  • Touch Dimmer: A long press allows for continuous adjustment of the light intensity.
  • Color Temperature Control: Short presses cycle through the available color temperatures: 2700K (Warm White), 4000K (Neutral White), and 6500K (Daylight).

Safety and Maintenance

Important Safety Instructions:

  • Always switch off the power supply before performing any maintenance or installation work.
  • The LED light source and control gear are permanently integrated into the product and cannot be replaced.
  • Do not expose the battery to extreme heat or fire.
  • Use only the specified battery type (18650 Li-ion).
  • Keep the device away from water and moisture.

Maintenance: Clean the fixture with a soft, dry cloth. Do not use abrasive cleaners or chemicals that may damage the surface finish.

Disposal

This product contains electronic components and a rechargeable battery. Do not dispose of this item with household waste. Please follow local regulations for the recycling of electronic equipment and batteries to ensure environmentally responsible disposal.
