Globo 15639-3D Tamara Ceiling Light Installation and Usage Guide

Product Overview

The Globo 15639-3D Tamara is a decorative ceiling light fixture designed for indoor use. It features a modern design with three light sources, providing effective illumination for various living spaces. The fixture is engineered for standard residential electrical systems.

Technical Specifications

• Model: 15639-3D
• Light Source: 3x E27 bulbs
• Maximum Wattage: 60W per bulb
• Voltage: 230V ~ 50Hz

Safety Instructions

Before beginning any installation work, ensure that the main power supply is switched off at the circuit breaker. Electrical installation should only be performed by qualified personnel. Ensure all connections are secure and that the fixture is properly grounded to prevent electrical hazards.

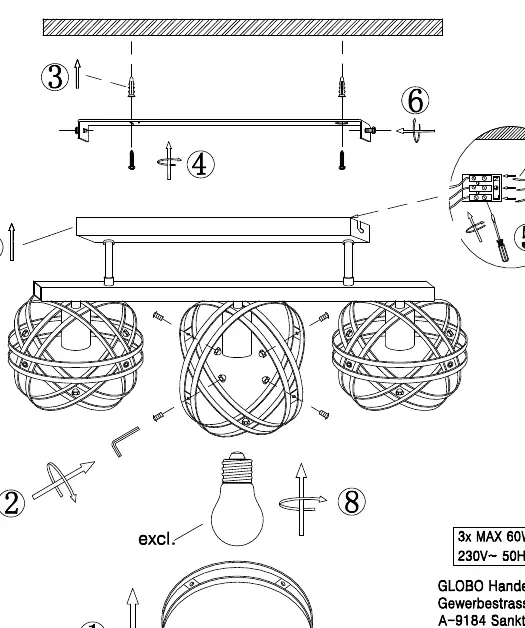

Installation Steps

Follow these steps to install your ceiling light:

• Preparation: Turn off the power supply at the main fuse box.
• Mounting: Secure the mounting bracket to the ceiling using appropriate screws and wall plugs.
• Wiring: Connect the house wires to the terminal block of the fixture. Ensure the Live (L), Neutral (N), and Earth (ground) wires are connected to their corresponding terminals.
• Assembly: Attach the main fixture body to the mounting bracket.
• Bulb Installation: Insert three E27 bulbs (not included) into the sockets.
• Finalization: Once the fixture is securely mounted and bulbs are installed, switch the power back on at the circuit breaker.

Maintenance and Care

To maintain the appearance and functionality of the light fixture, clean it periodically with a soft, dry cloth. Do not use abrasive cleaners or chemicals that could damage the finish. Ensure the power is off before cleaning. If a bulb fails, replace it with a new one of the same type and wattage, ensuring the power is disconnected during the process.

Troubleshooting

If the light fails to turn on, check the following: ensure the power is switched on at the circuit breaker, verify that the bulbs are screwed in correctly, and inspect the electrical connections for any loose wires. If the issue persists, consult a professional electrician.

Disposal

Dispose of the product and its packaging in accordance with local environmental regulations. Do not discard electrical components in regular household waste.
