GLOBO 15786-3H1 SALVY Pendant Light Installation Guide

Product Overview

The GLOBO 15786-3H1 SALVY is a stylish pendant light fixture designed for indoor ceiling mounting. It features a three-light configuration, providing versatile illumination for various living spaces. The fixture is engineered for durability and aesthetic appeal, ensuring a modern look for your home interior.

Technical Specifications

The fixture is designed to operate on a standard 230V~ 50Hz power supply. It requires three light bulbs with an E27 base, with a maximum wattage of 60W per bulb. Ensure that the chosen bulbs do not exceed the specified maximum power rating to prevent overheating and ensure safe operation.

Safety Precautions

Before beginning any installation work, it is mandatory to switch off the main power supply at the circuit breaker. Working on live electrical circuits poses a severe risk of electric shock. Ensure that the installation area is dry and that all electrical connections are made by a qualified individual or in accordance with local electrical regulations. Do not modify the fixture or its components, as this may compromise safety and void the warranty.

Installation Instructions

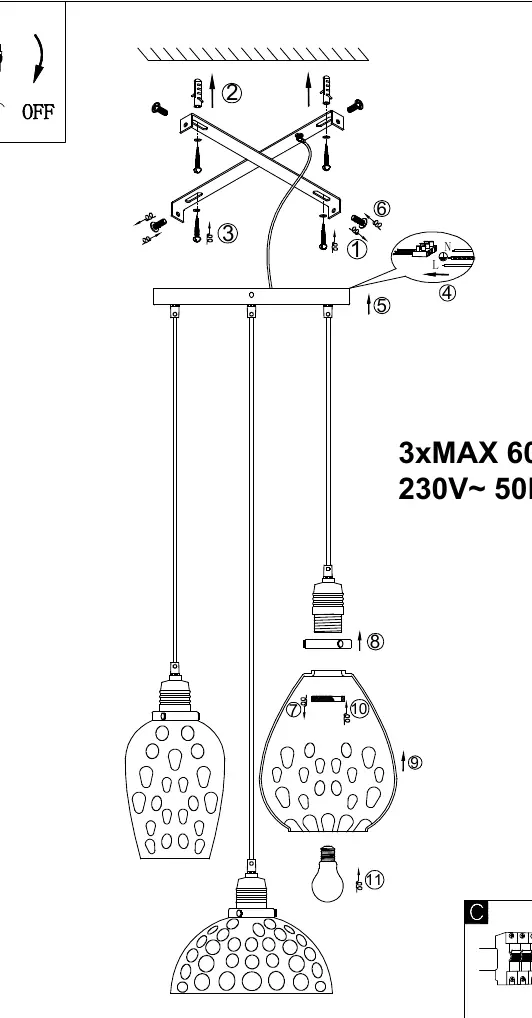

Follow these steps to install your pendant light safely:

• Ensure the power is disconnected at the main fuse box.
• Secure the mounting bracket to the ceiling using appropriate screws and anchors suitable for your ceiling material.
• Connect the electrical wires from the ceiling to the terminal block on the fixture, ensuring that the Live (L) and Neutral (N) wires are correctly matched.
• Attach the fixture canopy to the mounting bracket using the provided screws.
• Adjust the length of the pendant cords to your desired height.
• Install the decorative shades onto the lamp holders.
• Insert the E27 bulbs into the sockets.
• Once all components are securely in place, restore power at the circuit breaker.

Maintenance and Care

To keep your pendant light in optimal condition, clean the fixture regularly with a soft, dry cloth. Avoid using abrasive cleaners or chemicals that could damage the finish. Periodically check that all mounting screws and electrical connections remain tight and secure. If a bulb burns out, replace it only with a bulb of the same type and wattage rating after allowing the fixture to cool down completely.
