GLOBO 17013H1 DENTSY Pendant Light

Product Overview

The GLOBO 17013H1 DENTSY is a modern pendant light fixture designed for indoor use. It features an integrated LED light source with a maximum power consumption of 53W (DC 36V). The fixture is compatible with standard 220-240V 50Hz power supplies.

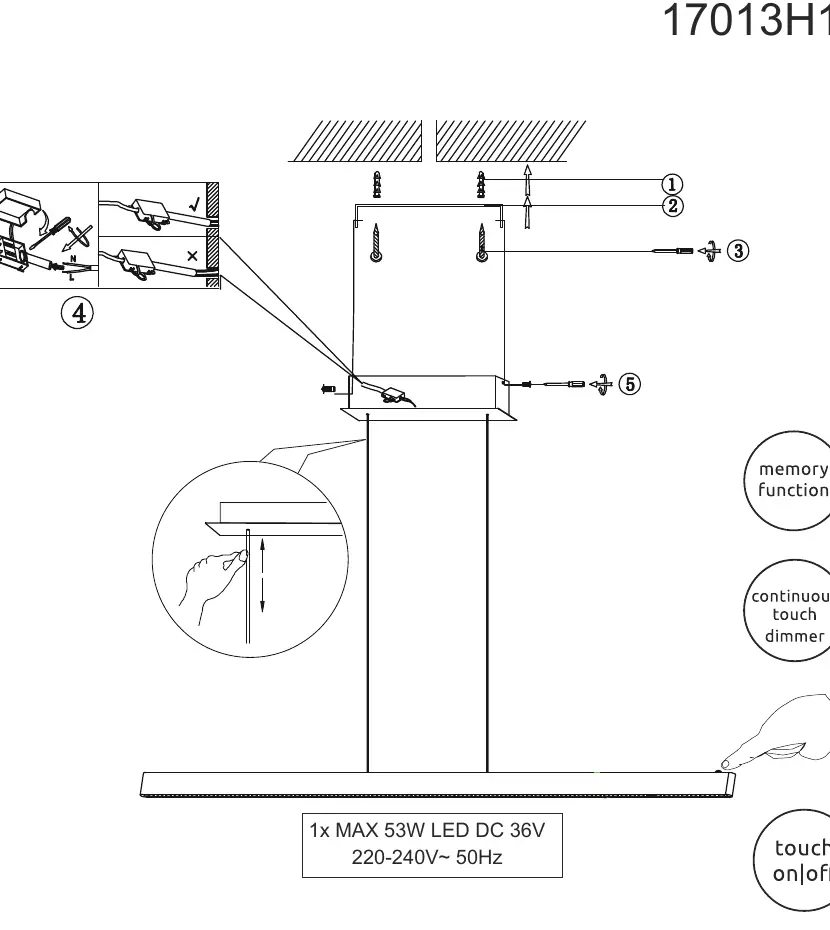

Installation

Before beginning installation, ensure the main power supply is switched off at the circuit breaker. Follow these steps for a secure installation:

• Mount the ceiling bracket securely to the ceiling using appropriate hardware.
• Connect the electrical wiring according to local safety regulations, ensuring proper insulation.
• Attach the main fixture body to the ceiling bracket using the provided screws.
• Ensure all connections are tight and the fixture is level.

Operation

The pendant light is equipped with advanced touch-sensitive controls for ease of use:

• Touch On/Off: Use the touch-sensitive area on the fixture to turn the light on or off.
• Continuous Touch Dimmer: Press and hold the touch area to adjust the brightness level continuously.
• Memory Function: The light remembers the last brightness setting used when turned back on.

Safety and Maintenance

Please note the following important safety information regarding the light source:

• The integrated LED light source and the control gear are not interchangeable or replaceable. They are permanently fixed to the product due to its construction.
• This product contains a light source of energy efficiency class E.
• Do not attempt to disassemble the fixture or replace internal components, as this may cause damage and void the warranty.
• Clean the fixture only with a soft, dry cloth. Do not use abrasive cleaners or chemicals.

Troubleshooting and Disposal

If the light fails to operate, check the power supply and ensure all connections are secure. If the issue persists, consult a qualified electrician. This product should be disposed of in accordance with local regulations for electronic waste. Do not dispose of this product with household waste.
