Carbon-Z Cessna 150T 2.1m Instruction Manual

Product Overview

The Carbon-Z Cessna 150T 2.1m is a high-performance RC airplane designed for experienced hobbyists. It features advanced flight stabilization technology and requires careful handling and maintenance to ensure safe operation. This model is not a toy and is not suitable for children under 14 years of age.

Safety Precautions

• Always maintain a safe distance from the model during operation.
• Never operate the model with low transmitter batteries.
• Keep all chemicals, small parts, and electrical components out of reach of children.
• Avoid touching the motor, ESC, or battery immediately after flight as they can become very hot.
• Always turn on the transmitter before the receiver.

Assembly and Setup

The model requires assembly of the tail, landing gear, wings, and motor. Ensure all components are securely fastened using the provided hardware and recommended adhesives. The center of gravity (CG) is critical for flight stability and must be checked before every flight. The recommended CG is 95-105mm behind the leading edge of the wing.

Transmitter and Receiver Setup

The model is equipped with SAFE Select and AS3X technology. Proper transmitter configuration is essential for these features to function correctly. Follow the provided setup charts for your specific transmitter model to assign switches for flight modes and telemetry data.

Flight Operation

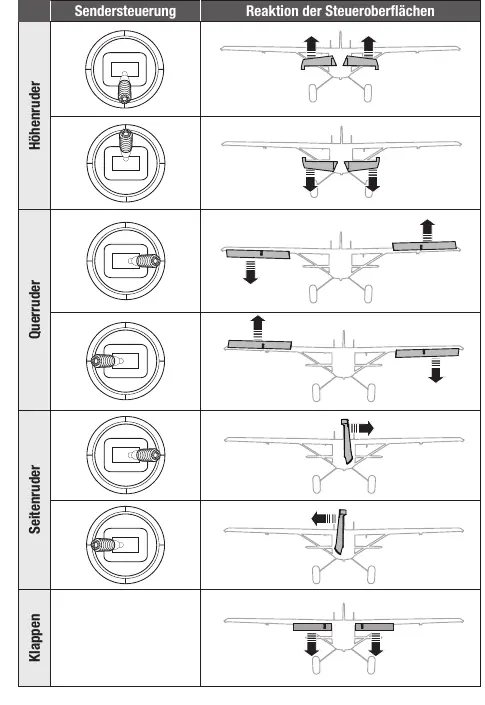

Before flying, perform a range test and verify all control surfaces move in the correct direction. Use the recommended dual rates and exponential settings for the first flights. The model features flaps which should be used for shorter takeoffs and landings. Always land into the wind and maintain a shallow approach.

Maintenance and Troubleshooting

Regularly inspect the model for loose components, damaged propellers, or worn parts. If the model exhibits inconsistent flight performance, check the trim settings and ensure the receiver is securely mounted. If the motor pulses or loses power, the Low Voltage Cutoff (LVC) may have been triggered; land immediately and recharge the battery.

Disposal

This product contains electronic components and must be disposed of at an appropriate collection point for waste electrical and electronic equipment in accordance with local regulations.
