User Manual for HuddleCamHD 10X-USB2 PTZ Camera

Quick Start Guide

To set up your HuddleCamHD 10X-USB2 camera, follow these steps in order to ensure proper connectivity:

1. Connect the included power supply to the camera.
2. Wait for the camera to complete its initialization and move to the Home position.
3. Connect the included USB 2.0 cable to the camera and your PC's USB port.
4. Select and configure the camera within your preferred video software.

Note: Failure to follow this sequence may result in connection issues with your PC.

Physical Description

The camera features several key components for operation:

• Front View: Includes the lens, IR receivers for remote control signals, and a Power LED (Blue when powered, dark in Stand-By).

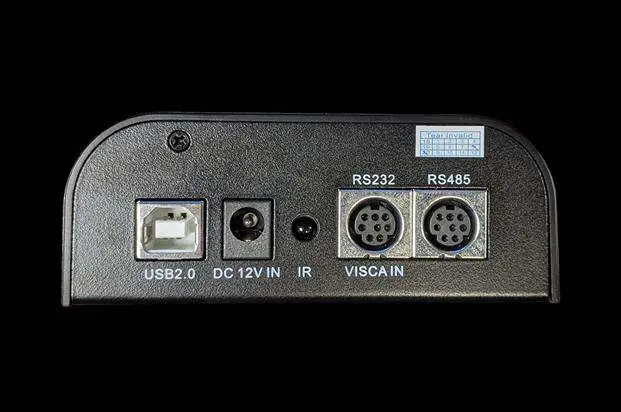

• Rear View: Contains the DC 12V power socket, IR receiver, RS232 IN port, RS485 IN port, and the USB 2.0 interface.

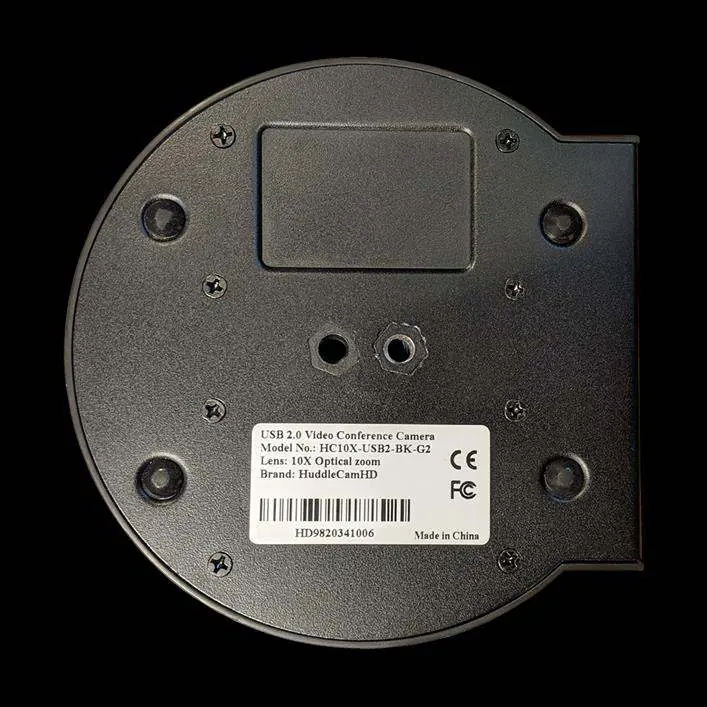

• Bottom View: Features a tripod mount compatible with 1/4-20 bolts.

Installation

Desktop Installation: Ensure the camera is placed on a level surface. If using on an incline, the angle must be less than 15 degrees to ensure the pan and tilt mechanism operates correctly.

Tripod Installation: Screw the tripod into the bottom of the camera. The tripod screw must be 1/4-20UNC with a length of 5-7 mm.

Connection & Setup

The camera supports various control interfaces:

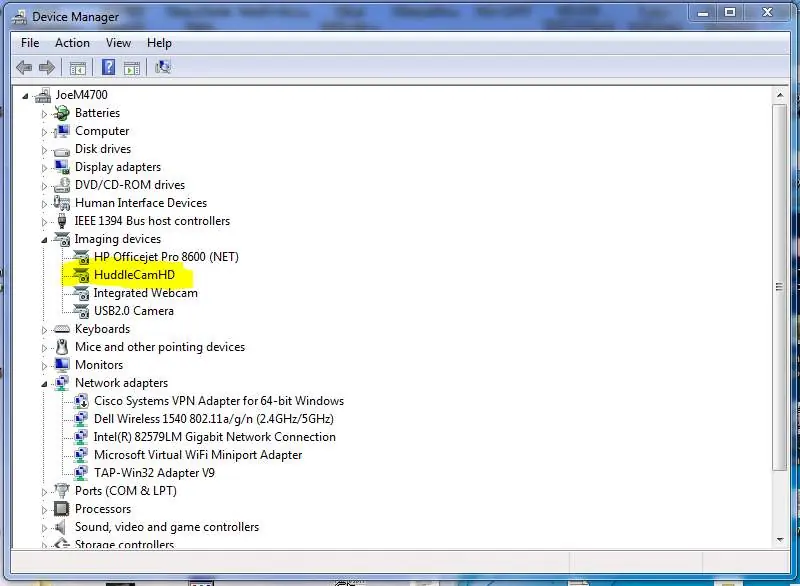

• USB Connectivity: The camera uses UVC drivers built into Windows, Mac OS, and Linux. For reliable performance, avoid using external USB hubs and connect directly to the PC. Disable USB 3.0 power-saving settings in your OS if necessary.

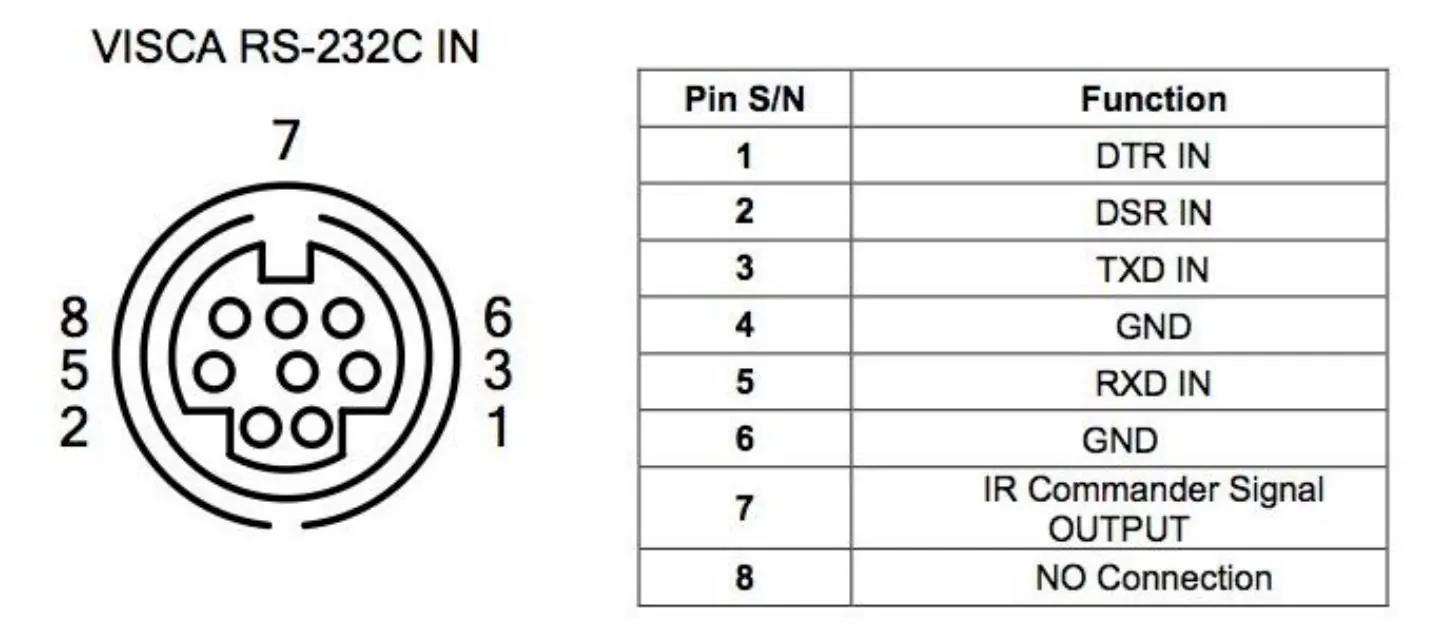

• VISCA Control: The camera supports RS-232C and RS-485 for hard-wired remote control from third-party devices like joysticks or PCs. Refer to the specific pinout diagrams for wiring instructions.

OSD Menu & Remote Control

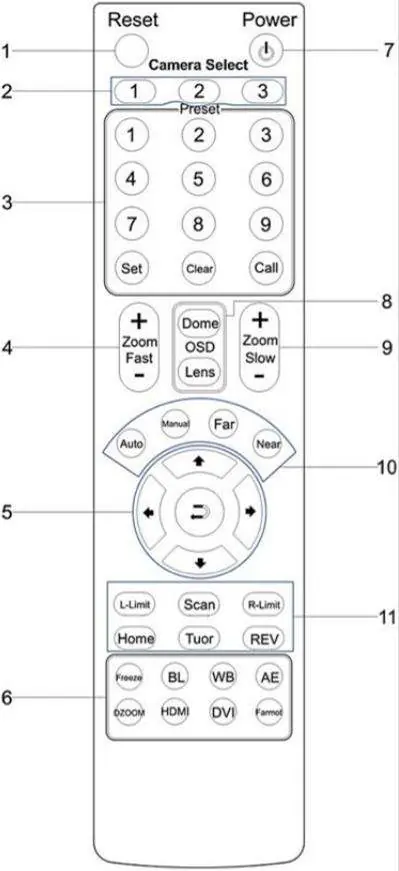

Use the IR Remote Controller to access the On Screen Display (OSD) menu for advanced settings:

• Dome OSD: Configure Protocol (Address, Baud Rate), Settings (Pan/Tilt speed, Presets), and Information.
• Lens OSD: Adjust Exposure (Brightness, Backlight, Shutter), Color (Hue, Saturation, White Balance), and Image settings (Flip, Frame rate).

Note: You cannot manually move the camera via pan/tilt while the OSD menu is visible on the screen.

Troubleshooting

If you encounter issues, check the following:

• No Power: Verify the power adapter is connected to both the camera and the mains.
• USB Connection Issues: Try a new USB cable. Ensure the camera has fully booted before connecting the USB cable.
• Pan/Tilt/Zoom Unresponsive: Exit the OSD menu. Ensure the camera has not reached its movement limits.
• Remote Control Not Working: Ensure the "Camera Select" button on the remote matches the IR address set on the camera's DIP switch.

Technical Specifications

• Sensor: 1/2.9" HD Sony CMOS, 2.1 Mega Pixel.
• Zoom: 10X Optical Zoom.
• Video Interface: USB 2.0, UVC 1.5.
• Pan/Tilt: Pan ±175°, Tilt Up 90°/Down 30°.
• Power: 12V DC 2A.
