Installation Guide for ICT Billet 551582 A/C Compressor Bracket Kit
Step-by-step installation guide for the ICT Billet 551582 A/C Compressor Bracket Kit designed for 2019-UP L84-L87 Gen V engines. Includes assembly instructions for the rear plate, front plate, pulley, and Sanden 508 compressor.
Quick answers from the manual
Quick answer
- The ICT Billet 551582 is an A/C compressor bracket kit for 2019-UP L84-L87 Gen V engines, designed to mount a Sanden 508 compressor. p. 1
Key actions
- Remove the water pump before installing the rear plate. p. 1
- Remove the bushing from the water pump tab before installing the front plate. p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Compatibility | 2019-UP L84-L87 Gen V engines | Engine model requirement | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF
- Installation Diagram p. 1
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document provides the installation procedure for the ICT Billet 551582 A/C Compressor Bracket Kit. It is designed specifically for 2019-UP L84-L87 Gen V engines to mount a Sanden 508 A/C compressor. Ensure you have all necessary hardware and follow the steps in order, paying close attention to the specific spacer and bolt requirements for each section.
Installation Steps

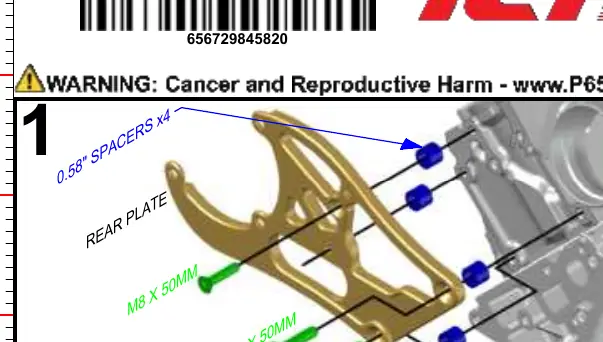

Step 1: Rear Plate Installation
Before installing the rear plate, the water pump must be removed. Secure the rear plate using the provided M8 x 50mm and M10 x 50mm bolts, utilizing the 0.58" spacers (x4).

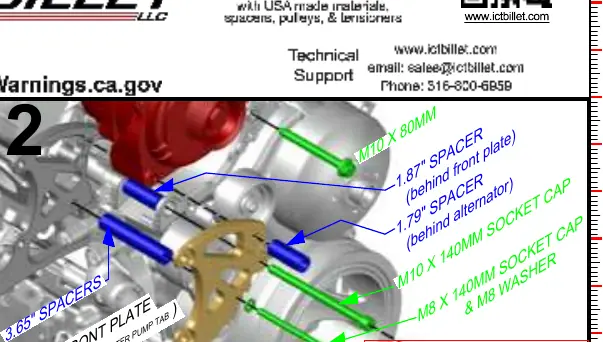

Step 2: Front Plate Installation
Before installing the front plate, the bushing must be removed from the water pump tab. The front plate assembly requires the following components:
- 3.65" spacers (rest behind the water pump tab)
- 1.87" spacer (behind the front plate)
- 1.79" spacer (behind the alternator)
- M8 x 140mm socket cap bolts with M8 washers
- M10 x 80mm and M10 x 140mm socket cap bolts

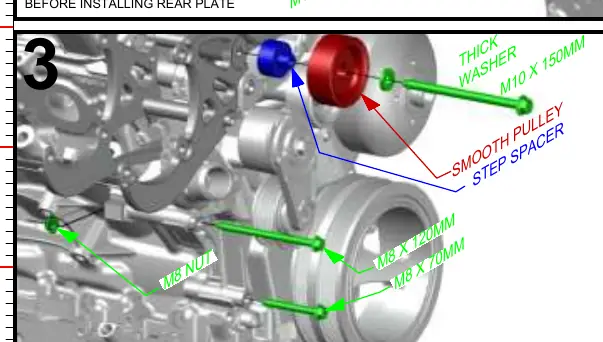

Step 3: Smooth Pulley Installation
Install the smooth pulley using the step spacer and thick washer. Secure the assembly using M10 x 150mm, M8 x 120mm, and M8 x 70mm bolts, along with the M8 nut.

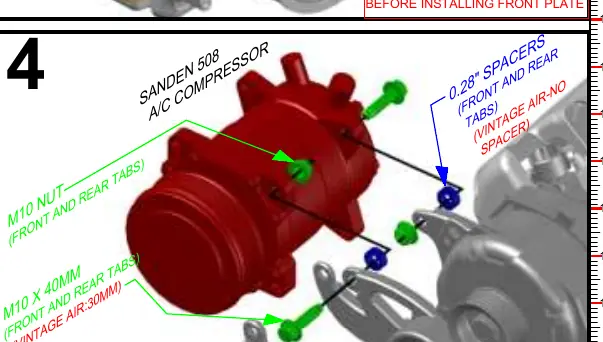

Step 4: Sanden 508 A/C Compressor Installation
Mount the Sanden 508 A/C compressor using M10 x 40mm bolts and M10 nuts on the front and rear tabs. Note: For Vintage Air setups, use 30mm bolts and do not use spacers on the front and rear tabs.
Important Compatibility Notes
This kit is specifically engineered for 2019-UP L84-L87 Gen V engines. Always verify that the water pump bushing is removed as instructed to ensure proper fitment of the front plate. If using a Vintage Air system, refer to the specific bolt length (30mm) and spacer requirements mentioned in Step 4.
Practical help
Common problems
Front plate does not fit correctly
Ensure the bushing has been removed from the water pump tab before attempting to install the front plate.
Rear plate installation issues
The water pump must be completely removed from the engine before installing the rear plate.
Before use
- Verify engine compatibility (2019-UP L84-L87 Gen V)
- Remove the water pump from the engine
- Remove the bushing from the water pump tab
- Identify all bolt sizes (M8 and M10 variants)
- Confirm if using a standard or Vintage Air compressor setup
Show more Show less
Specs in practice
- Vintage Air Setup
- Requires 30mm bolts for the compressor tabs and no spacers on the front/rear tabs.
- Spacer Sizes
- Includes 0.58", 1.79", 1.87", and 3.65" spacers for specific plate and alternator alignment.
Images and diagrams
- Step 1: Shows rear plate mounting with 0.58" spacers.
- Step 2: Details front plate mounting with 3.65", 1.87", and 1.79" spacers.
- Step 3: Illustrates smooth pulley assembly with step spacer and thick washer.
- Step 4: Shows Sanden 508 compressor mounting points.
Model compatibility
- Designed for 2019-UP L84-L87 Gen V engines.
- Compatible with Sanden 508 A/C compressors.
- Vintage Air configurations require specific bolt lengths (30mm) and spacer omissions.
