Assembly Instructions for Jensen Triangle Legs
Quick assembly guide for Jensen Triangle Legs (14cm). Includes parts list, step-by-step installation instructions for attaching legs to the bed frame, and guidance on selecting the correct floor protectors.
Table of contents
Quick Assembly Guide
This guide provides instructions for assembling Jensen Triangle Legs. Ensure you have all components before starting the installation. The legs are designed to be attached to the bed frame, providing a stable base.
Parts Included
- 4x Triangle Legs
- 2x Brackets
- 1x Tool
- 4x Bolts
- 4x Washers
- 8x Screws
- 4x Floor Savers
Assembly Steps
- Prepare the Frame: Ensure the bed frame is positioned correctly.
- Attach Brackets: Secure the brackets to the frame using the provided screws.

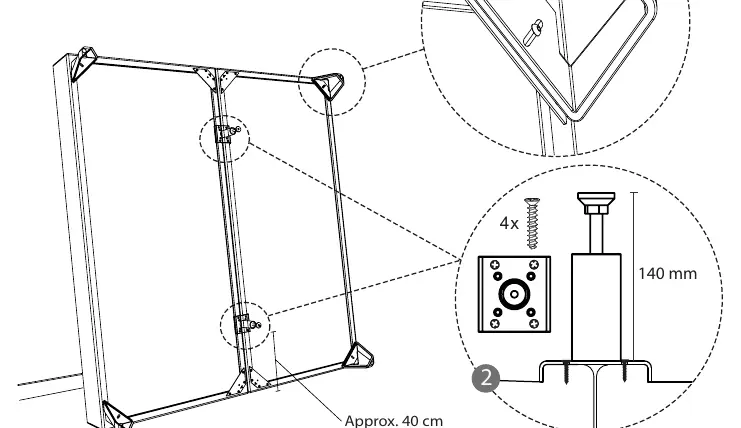

- Install Legs: Attach the triangle legs to the brackets using the bolts and washers. The total height of the leg assembly is 140 mm.
- Positioning: Ensure the legs are positioned approximately 40 cm from the frame edge as indicated in the diagram.
- Finalize: Place the mattress or bed unit onto the assembled frame.
Floor Protection
The product is delivered with two sets of floor savers. Please select the set that is best suited for your specific floor type to prevent damage and ensure stability.
Manufacturer information
Jensen
Practical help
Common problems
Ensure all 8 screws are tightened securely to the frame and the bolts connecting the legs are fully fastened.
Select the appropriate set of floor savers provided in the kit based on your floor type.
Before use
- Verify all parts are present (4 legs, 2 brackets, 1 tool, 4 bolts, 4 washers, 8 screws, 4 floor savers).
- Identify your floor type to select the correct floor savers.
- Ensure you have a clear space to assemble the bed frame.
