Studio Easel 161cm Assembly and Usage Guide

Product Overview

The Studio Easel 161cm is a versatile wooden easel designed for artists, providing a stable platform for canvases and art projects. This manual covers the complete assembly process, component identification, and essential maintenance tips to ensure the longevity of your equipment.

Hardware and Components

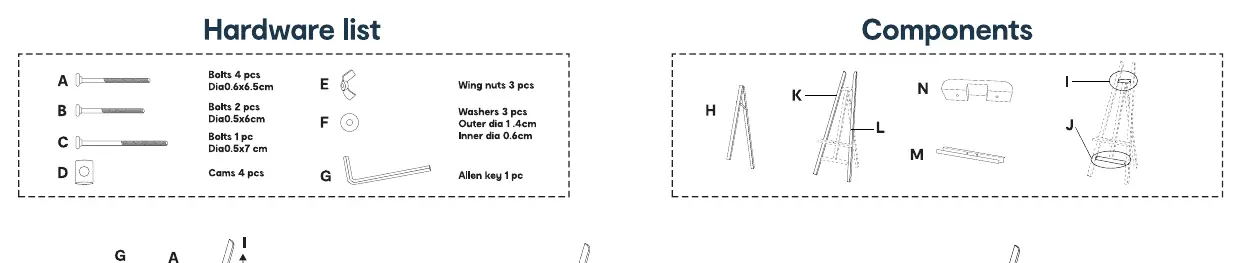

Before beginning assembly, ensure all parts are present. The hardware kit includes various bolts (A, B, C), cams (D), wing nuts (E), washers (F), and an Allen key (G). The main components consist of the easel frame parts (H, I, J, K, L) and the canvas support bars (M, N). Verify all items against the provided list to avoid interruptions during setup.

Assembly Instructions

Follow these steps carefully to assemble your easel:

• Step 1: Connect part K and I using bolt A, washer, and cam. Keep the bolt loose initially.
• Step 2: Attach part H to the main assembled unit.
• Step 3: Fit part J into the unit, securing it with bolt A, washer, and cam. Do not fully tighten yet.
• Step 4: Insert part L into the unit, securing with bolts A, washers, and cams. Once positioned, tighten all bolts firmly using the provided Allen key.
• Step 5: Attach canvas supports M and N using bolts B, washers, and wing nuts. Ensure they are secure but avoid over-tightening.
• Step 6: Finally, secure support H using bolt C, washer, and wing nut. Ensure the structure is stable before use.

Safety and Maintenance

To maintain the stability and safety of your easel, periodically check all bolts and wing nuts to ensure they remain tight. Do not over-tighten hardware, as this may damage the wood or the metal components. Keep the easel on a flat, level surface to prevent tipping. If the easel becomes unstable, inspect the joints and tighten any loose connections. Clean the wood periodically with a dry cloth to remove dust and paint residue. When not in use, the easel can be folded for compact storage.

Disposal

When the product reaches the end of its life, please dispose of it according to your local waste management regulations. Consider recycling the metal components and repurposing or responsibly disposing of the wooden parts.
