Matchmaster 04MM-TB08 Full-Motion TV Wall Mount Installation Manual
Quick installation guide for the Matchmaster 04MM-TB08 full-motion TV wall mount. Includes mounting steps, VESA compatibility, and safety instructions.
Table of contents
Quick guide from the manual
The Matchmaster 04MM-TB08 is a full-motion TV wall mount designed for screens up to 80 inches and a maximum weight of 50kg (110lbs). This document provides the necessary steps for safe installation on wood studs or solid concrete/brick walls. Always ensure the mounting surface can support the combined weight of the equipment and hardware.
Safety and maintenance
- The installation should be performed by professionals.
- Use appropriate safety gear and tools.
- Check all parts against the component checklist before starting.
- Keep small parts away from children to avoid choking hazards.
- Inspect the bracket and secure it at least every three months to ensure it remains tight and safe.
Installation steps

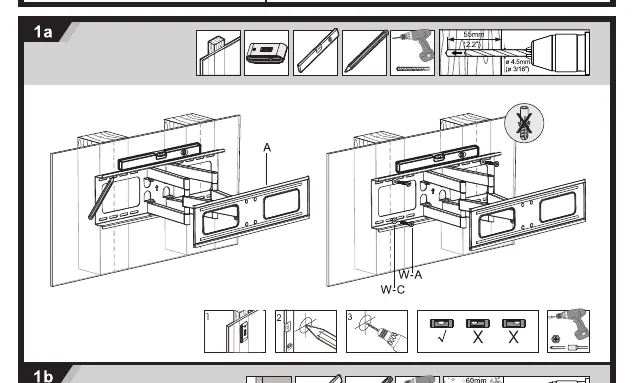

1a. Wood Stud Installation: Use the provided template to mark holes on the wall. Drill 55mm deep holes using a 4.5mm drill bit. Secure the wall plate (A) using the provided wall screws (W-A) and washers (W-C).
1b. Concrete/Brick Installation: Mark holes on the wall. Drill 60mm deep holes using a 10mm masonry drill bit. Insert wall anchors (W-B) and secure the wall plate (A) using screws (W-A) and washers (W-C).
2. Attaching Brackets to TV: Select the appropriate screws (M-A, M-B, M-C, or M-D) based on your TV's VESA mounting holes. Use spacers (M-G, M-H) and washers (M-F) as needed to ensure a secure fit against the back of the TV.
3 & 4. Mounting the TV: With the help of another person, lift the TV and hook the brackets onto the wall plate. Secure the safety screws at the bottom to lock the TV in place.
5. Adjustments: Use the provided hex key (C) to adjust the tilt (+10°/-20°) and level (+3°/-3°) of the TV once mounted.
Manufacturer information
Matchmaster Communications Pty Ltd
Practical help
Common problems
TV does not fit the mount
Ensure your TV VESA pattern matches one of the supported sizes: 200x200, 300x300, 400x200, 400x400, or 600x400.
Mount feels loose over time
Perform a maintenance check every three months and tighten all bolts and screws as necessary.
Before use
- Verify the wall type (wood stud vs. concrete/brick).
- Check that the wall can support the weight of the TV and mount.
- Ensure all components from the checklist are present.
- Use a level to ensure the wall plate is installed straight.
- Have a second person available to assist with lifting the TV.
Specs in practice
- Max Weight Capacity
- 50kg (110lbs) - Do not exceed this limit.
- VESA Compatibility
- Supported patterns: 200x200, 300x300, 400x200, 400x400, 600x400.
- Leveling Range
- +3° to -3° horizontal adjustment.
Images and diagrams
- Step 1a/1b shows the drilling requirements for different wall types.
- Step 2 illustrates the correct order of washers and spacers when attaching brackets to the TV.
- Step 5 shows where to insert the hex key to adjust tilt and level.
Model compatibility
- Designed for indoor use only.
- Compatible with screens up to 80 inches.
