Quick Start Guide: Moulinex Easy Fry Crispy Stack 10L
Quick start guide for the Moulinex Easy Fry Crispy Stack 10L air fryer, covering setup, digital control panel operation, cooking modes, and maintenance.
Table of contents
Manual images
Jump to the sectionProduct Overview

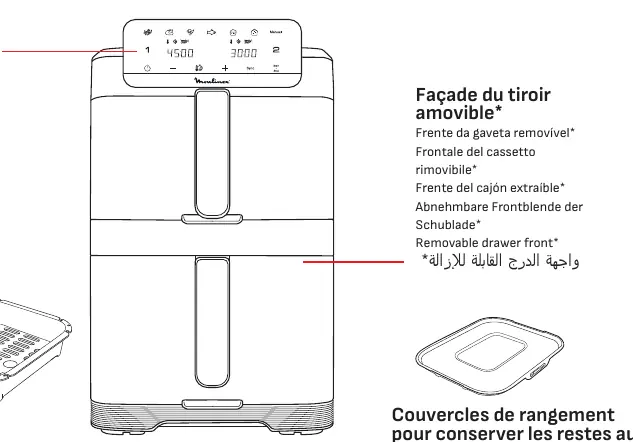

The Moulinex Easy Fry Crispy Stack 10L is a versatile dual-drawer air fryer designed for efficient cooking. It features a digital touchscreen panel that allows for precise control over time and temperature settings. The unit includes two cooking grids for multi-level cooking, enabling you to prepare up to four different foods simultaneously. Some models are equipped with a detachable front panel system for easier cleaning.
Getting Started
Before using the appliance for the first time, ensure the cord rack is installed correctly. Place the air fryer on a stable, heat-resistant surface with at least 15 cm of clearance on all sides to allow for proper ventilation. The device offers seven preset programs, including fries, chicken, vegetables, fish, cake, dough rising, and a manual mode.
Cooking Procedures
To start cooking, select the desired drawer (1 or 2) and choose a preset program or set the time and temperature manually. The synchronization mode is a key feature that allows you to coordinate cooking times between both drawers, ensuring that different dishes are ready at the same time. For certain programs, such as fries, the device will alert you when it is time to shake the food for even cooking results.
Safety and Maintenance
Safety is paramount; never block the air vents and ensure the drawers are fully inserted during operation. Do not overfill the drawers beyond the MAX mark. After cooking, allow the appliance to cool down before cleaning. The drawers and grids are dishwasher safe. For models with the Genius system, remove the front panel before placing the drawer in the dishwasher. Always keep the exterior clean and dry. For further assistance or to join the community, you can access the Moulinex app or follow them on Instagram.
Manufacturer information
Moulinex
Practical help
Common problems
Shake the food in the drawer regularly during the cooking process, especially when using the fries program.
Drawers and grids are dishwasher safe. If your model has the Genius system, remove the front panel before placing the drawer in the dishwasher.
The cord rack must be installed correctly before the first use to ensure safe operation.
Before use
- Ensure the cord rack is installed correctly.
- Place the unit on a flat, stable, heat-resistant surface.
- Maintain 15 cm of clearance around the appliance for ventilation.
- Check that the drawers are clean and properly inserted.
- Verify that the voltage matches the appliance requirements.
Specs in practice
- 10L Capacity
- Total volume capacity for cooking large quantities or multiple dishes.
- Synchronization Mode
- Feature that coordinates cooking times between two drawers so both finish simultaneously.

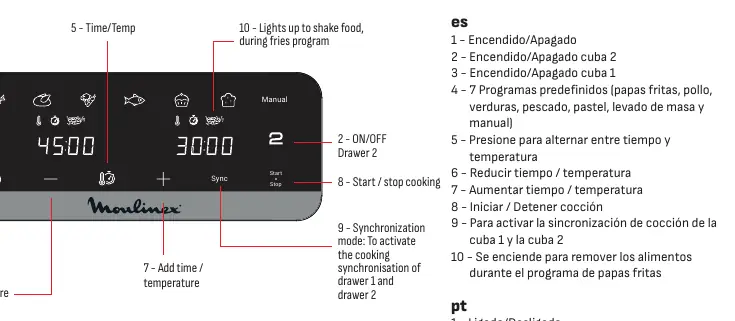

Images and diagrams
- The control panel allows independent control of Drawer 1 and Drawer 2.
- The 'Sync' button is used to align cooking times for both drawers.
- The 'Shake' indicator light notifies the user to stir food during the fries program.
Model compatibility
- Detachable front panel system is available only on certain models.
- Compatible with oven-proof dishes.
