Norauto 12T Hydraulic Shop Press Parts List
A comprehensive parts list and exploded view guide for the Norauto 12T hydraulic shop press, including EAN codes and component identification for maintenance and repair.
Table of contents
Quick guide from the manual

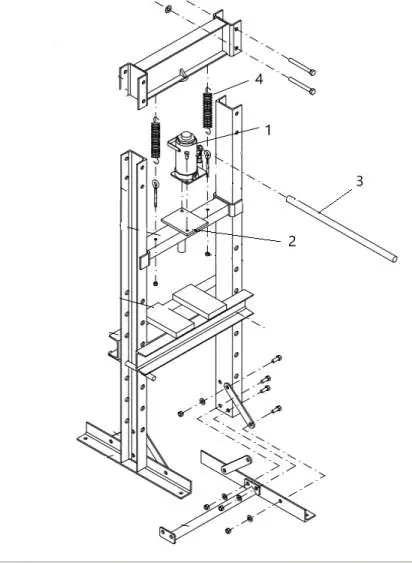

This document serves as an official parts identification guide for the Norauto 12T hydraulic shop press. It provides an exploded view of the assembly and a detailed list of replaceable components. Please note that only the components shown in the technical exploded view can be ordered through the store.
Component identification
The following parts are available for order based on the provided technical diagram:
- 1: Cylinder and screw assembly (EAN: 3501369720662)
- 2: Pressure plate (EAN: 3501369720679)
- 3: Ratchet handle (EAN: 3501369720686)
- 4: Workshop press spring (EAN: 3501369720693)
- 5: Screw kit for 12-ton workshop press (EAN: 3501369727678)
Ordering information
Components not explicitly shown in the technical exploded view are not available for individual order. All listed parts can be ordered directly at a Norauto store using the provided EAN or product codes.
Practical help
Common problems
Identify the part number from the exploded view and order the specific component using its EAN code at a Norauto store.
Before use
- Verify that all structural bolts are tightened.
- Ensure the hydraulic cylinder is free of leaks.
- Check that the return springs are properly attached and functional.
- Confirm the pressure plate is correctly aligned.
