Norden Maxion Series 10-150KVA Modular UPS Spec Sheet
Quick guide for the Norden Maxion Series 10-150KVA Modular UPS. Includes technical specifications, power module configurations, and system features for this scalable power protection solution.
Table of contents
Quick guide from the manual
The Norden Maxion Series is a modular Uninterruptible Power Supply (UPS) designed for critical applications requiring high reliability and scalability. This document provides the technical specifications and ordering information for the 10-150KVA range. The system features hot-swappable power modules, a 10-inch touch LCD for monitoring, and supports high-capacity lithium batteries.
System Overview
The Maxion Series utilizes a modular architecture to allow for flexible deployment in industrial and commercial environments. Key features include:
- Scalability and Redundancy: Modular design allows for easy capacity expansion and N+X redundancy.
- Hot-swappable Power Modules: Modules can be replaced without interrupting power to the load.
- Monitoring: Integrated 10-inch touch LCD with IoT functionality for smart monitoring.
- Compact Design: Minimal footprint to save space in server rooms or industrial settings.
Technical Specifications
The system is designed for 3-phase input (380/400/415VAC) and output. Key performance metrics include:
- Efficiency: Up to 96% in normal mode.
- Input THDi: Less than 2% at 100% linear load.
- Output Power Factor: 1.
- Noise Level: 65dB at 100% load; 62dB at 45% load.
- Operating Environment: 0 to 40 degrees Celsius; 0-95% humidity (non-condensing).
- Protection Rating: IP20.
Communication and Connectivity
The UPS supports various communication interfaces to integrate with facility management systems:
- USB
- RS232
- RS485
- Dry contact
Ordering Information
The system is available in various configurations based on the power module capacity (10kVA, 20kVA, 25kVA) and cabinet size (2-slot, 4-slot, 6-slot). Ensure the selected cabinet supports the required number of power modules for your specific load and redundancy requirements.
Practical help
Common problems
System overload
The UPS supports 110% load for long time operation, 125% for 5 minutes, and 150% for 1 minute. Ensure the connected load does not exceed these thresholds.
Input voltage fluctuations
The system accepts 304-478VAC (L-L) at full load. If voltage drops below 304VAC, the system will derate power from 100% to 75%.
Before use
- Verify that the input power source is 3-phase 380/400/415VAC.
- Ensure the installation environment temperature is between 0 and 40 degrees Celsius.
- Confirm the cabinet slot capacity matches the required number of power modules.
- Check that the load type is compatible with the UPS output specifications.
Specs in practice
- Hot-swappable
- Power modules can be removed or inserted while the UPS is running, allowing for maintenance without downtime.
Images and diagrams

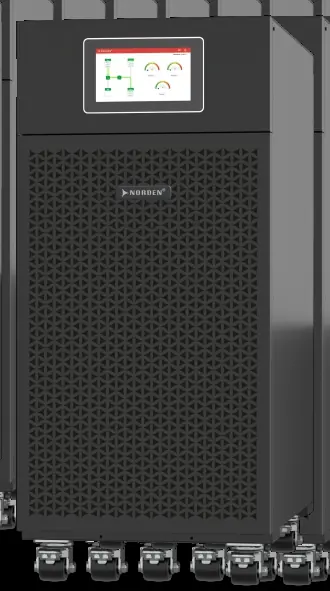

- The front panel features a 10-inch touch LCD screen for system status and configuration.
Model compatibility
- Supports high-capacity Lithium batteries.
- Compatible with 3-phase input systems (3P+N+PE).
