User Manual for Oypla 15L Ash Vacuum 3569
Quick guide for the Oypla 15L Ash Vacuum (Model 3569). Learn how to assemble, operate, clean the filter, and safely use your ash vacuum.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This ash vacuum is designed for domestic use to clean cold ash. Important: Only vacuum cold ash. Wait at least 24 hours after a fire to ensure all ash is cold and the fire is fully extinguished. Do not use for hot, glowing, or inflammable objects, soot, or fine dust.
Safety Instructions
Always prioritize safety when operating the vacuum:
- Ensure all fastenings are tight before use.
- Do not use if the power cable is damaged.
- Never leave the appliance unattended while operational.
- Keep away from children.
- Do not immerse the cord or plug in water.
- If the appliance heats up, switch it off immediately, disconnect from the power, and let it cool outside under supervision.

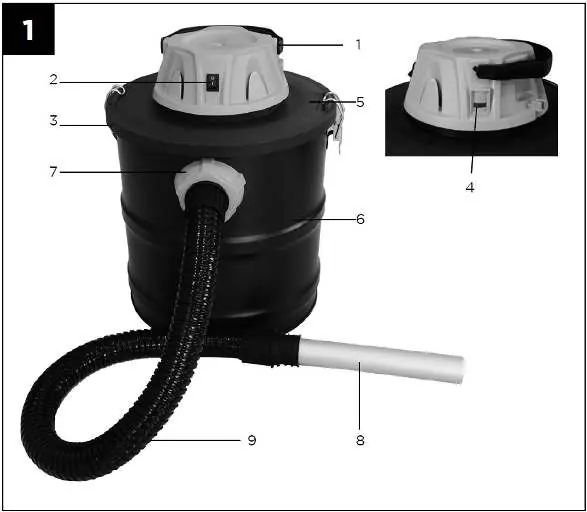

Parts List
Familiarize yourself with the components:
- 1: Handle
- 2: On/Off switch
- 3: Appliance head
- 4: Filling level indicator
- 5: Locking hook
- 6: Tank
- 7: Suction hose connector
- 8: Suction tube
Assembly
To fit the appliance head, place it onto the container (6) and secure it using the locking hook (5). Ensure the hook locks into place correctly. Connect the suction tube (8) to the suction hose (9), and attach the hose to the connector (7) by turning until securely attached.
Operation and Maintenance
The vacuum features a filling level indicator (4). If it shows a red bar, the tank needs to be emptied or the suction hose is blocked. Clean the appliance regularly with a damp cloth and soft soap. Do not use abrasive chemicals. To dismantle or assemble the filter, remove or attach the filter cartridge (10) from/to the appliance head (3).
Contact and Support
If you have questions or need assistance, contact the customer service team:
Telephone: 020 3600 2255Email: [email protected] Chat: www.oypla.com
Official resources from the manual
Practical help
Common problems
Appliance heats up during use
Switch off, disconnect from the mains, remove the filter bag, separate the ash filter from the extractor, and let it cool outside under supervision.
Filling level indicator shows a red bar
The tank needs to be emptied or there is a blockage in the suction hose that needs to be cleared.
Missing parts
Contact [email protected] for assistance.
Before use
- Ensure ash is cold (wait at least 24 hours after a fire)
- Check that all fastenings are tight
- Verify mains voltage matches the rating label
- Ensure the filter is correctly installed
- Check that the power cable is not damaged
Images and diagrams
- 2: On/Off switch
- 3: Appliance head
- 4: Filling level indicator
- 5: Locking hook
- 7: Suction hose connector
Model compatibility
- For indoor use only
- Not suitable for soot or fine dust
- Only use genuine accessories or parts
