Disassembly Instructions for Philips Decorative Pendant Industrial
A comprehensive disassembly guide for the Philips Decorative Pendant Industrial light fixture. Includes step-by-step instructions for removing the lamp, surface mount, and track-mounted components, along with recycling information.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the safe disassembly of the Philips Decorative Pendant Industrial light fixture. It is intended for end-of-life removal or maintenance. Always ensure the power supply is completely disconnected before starting any disassembly work.
Disassembly procedures
Lamp disassembly
To remove the lamp, gently rotate the bulb or lamp unit as indicated in the diagram to release it from the socket.

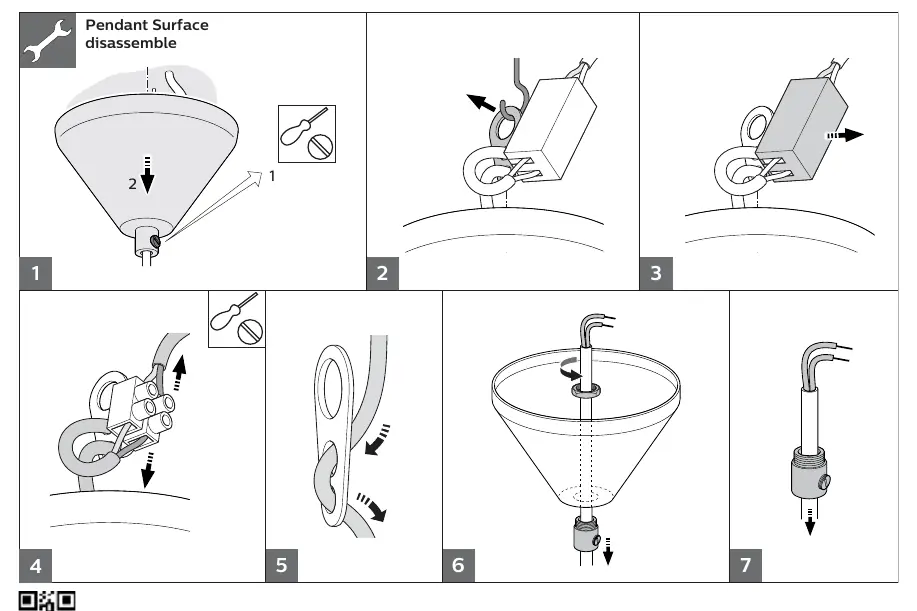

Surface mount disassembly
Follow these steps to detach the surface mount from the ceiling:
- Ensure the power is off.
- Use a screwdriver to loosen the mounting screws.
- Disconnect the wiring from the terminal block.
- Carefully remove the mounting bracket from the ceiling surface.
- Follow the specific sequence (steps 1-7) shown in the manual to fully detach the housing and wiring components.

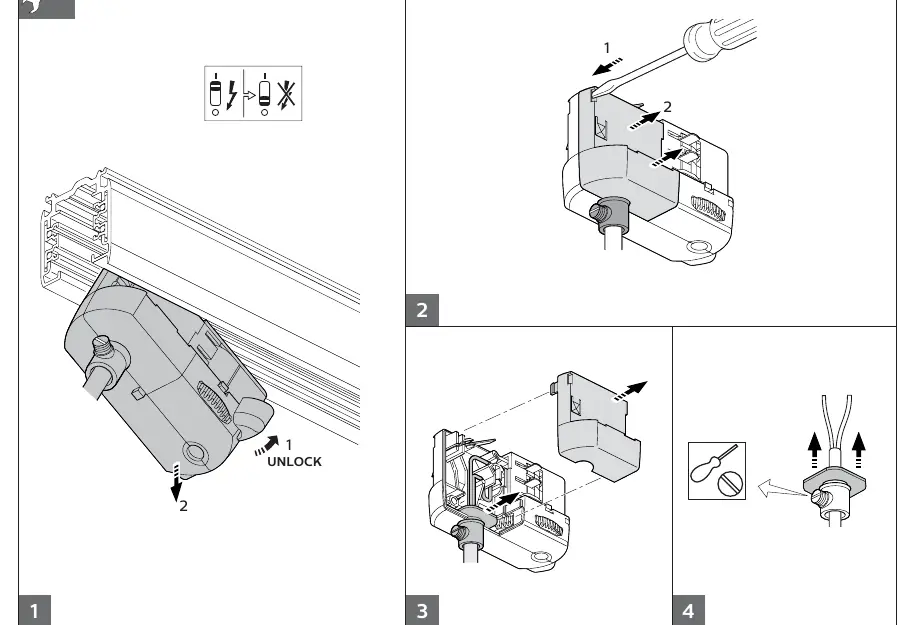

Track-mounted disassembly
- Locate the locking mechanism on the track adapter.
- Move the switch to the 'UNLOCK' position.
- Carefully pull the luminaire away from the track.
- Disconnect any remaining electrical connections if necessary.

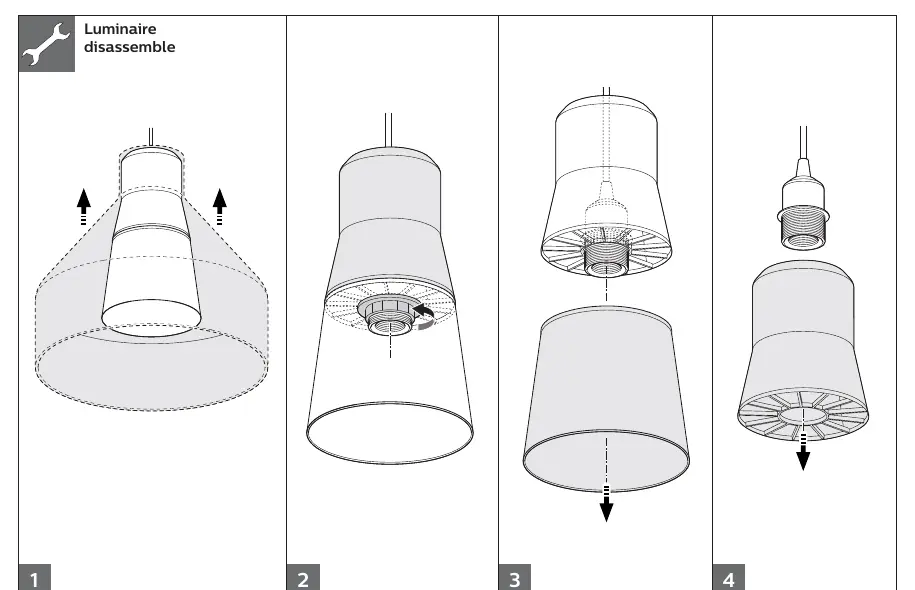

Luminaire disassembly
Follow the 4-step process to detach the luminaire housing. This typically involves unscrewing the locking ring or collar to release the shade or main body of the pendant.
Parts and recycling
The manual identifies various components of the fixture to assist with proper recycling. Materials are marked with standard recycling codes (e.g., PC for Polycarbonate, FE for Iron/Steel). Please dispose of these components according to local waste management regulations for electrical and electronic equipment.
Manufacturer information
Philips
Practical help
Common problems
Fixture is stuck on the track
Ensure the locking mechanism on the track adapter is fully in the 'UNLOCK' position before attempting to pull the fixture away.
Difficulty removing the luminaire shade
Check for a locking ring or collar that may need to be unscrewed before the shade can be detached.
Before use
- Ensure the power supply is completely disconnected at the circuit breaker.
- Verify you have the appropriate tools, such as a screwdriver.
- Work on a stable, flat surface to prevent damage to the fixture components.
- Identify the mounting type (surface vs. track) before starting.
Images and diagrams
- Page 1: Surface mount disassembly sequence (steps 1-7).
- Page 2: Track-mounted disassembly sequence (steps 1-4).
- Page 2: Luminaire housing disassembly sequence (steps 1-4).
